PerkinElmer Lambda 365 Installation Instructions Manual

Microcell holder
Hide thumbs Also See for Lambda 365:

Advertisement

Quick Links

This instruction sheet describes the installation of this accessory which is used with the Lambda 365
Spectrophotometer.
Read these instructions before you install this accessory.
NOTE:
Contacting P erk inElm er
Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part
numbers.
See our website:
http://perkinelmer.com
PerkinElmer's catalog service offers a full selection of high-quality supplies.
To place an order for supplies and many replacement parts, request a free catalog, or ask for information:
If you are located within the U.S., call toll free 1-800-762-4000, 8 a.m. to 8 p.m. EST. Your order will be
shipped promptly, usually within 24 hours.
If you are located outside of the U.S., call your local PerkinElmer sales or service office.
Features
Suitable size for micro cells
Excellent durability
Adjustable cell holder position

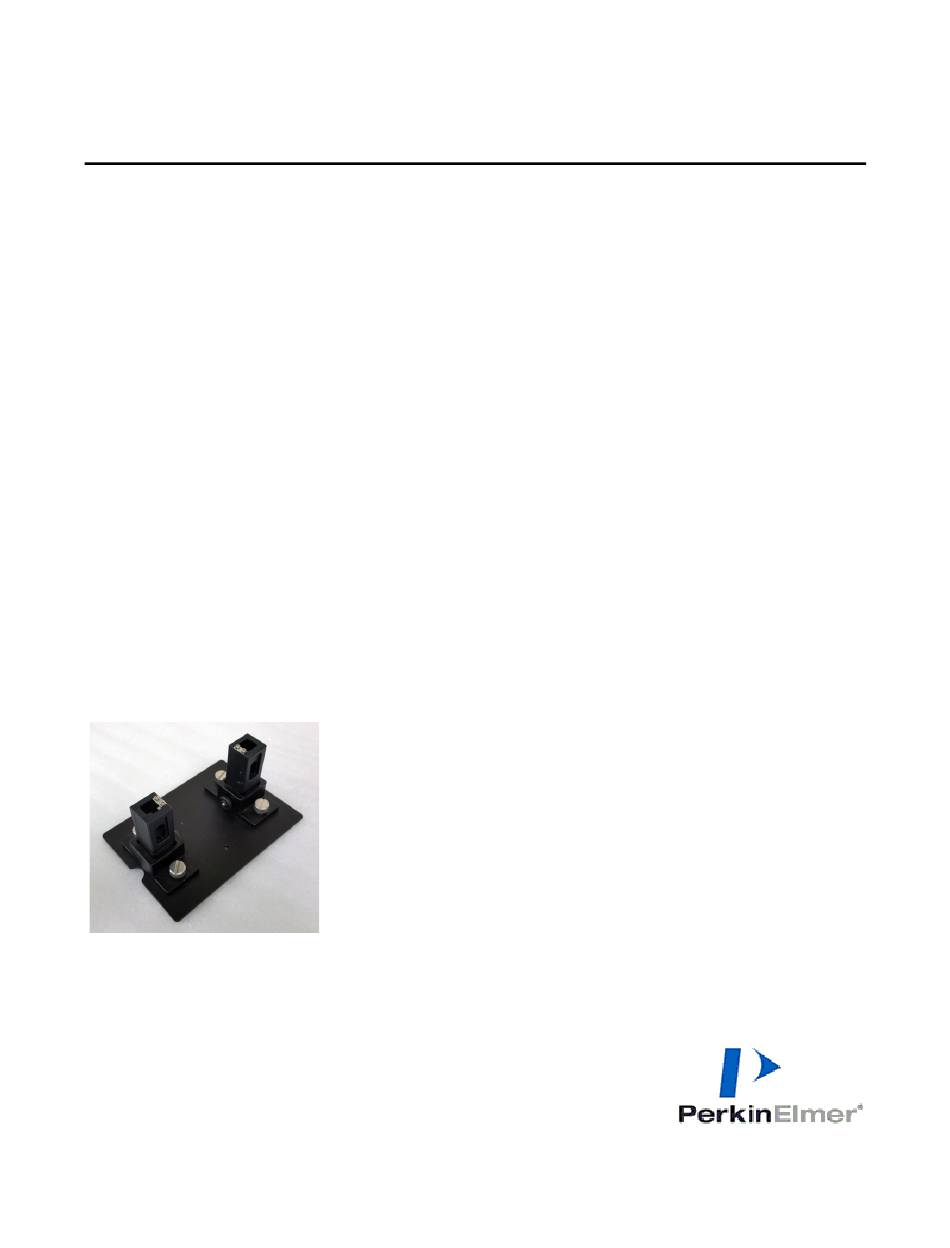

Figure 1 Lambda 365 Micro Cell Holder [P/N: N4101028]
Lam bda 365 M icrocell Holder
I nstallation I nstructions
09931256D
PerkinElmer, 710 Bridgeport Avenue,
Shelton, CT 06484-4794, U.S.A
Produced in the USA.

Advertisement

loading

Summary of Contents for PerkinElmer Lambda 365

  • Page 1 09931256D Lam bda 365 M icrocell Holder I nstallation I nstructions This instruction sheet describes the installation of this accessory which is used with the Lambda 365 Spectrophotometer. Read these instructions before you install this accessory. NOTE: Contacting P erk inElm er Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part numbers.
  • Page 2: Dimensions And Specifications

    Micro cell, 10 mm light path, Quartz, 50 ㎕, ea Other Cells are available upon request if what you want is not listed. Configuration of M icro Cell Holder Top-to-bottom adjustment knob Right-to-left adjustment knob Figure 2 Lambda 365 Micro Cell Holder Configuration Figure 3 Knob...
  • Page 3: Installation

    09931256D I nstallation 1. Loosen a knob to take apart the existing cell holder. Figure 4 Loosening a knob 2. Pull out the existing cell holder by hand. Figure 5 Pulling out the cell holder 3. Insert the micro cell holder in the sample compartment and tighten the knob. Figure 6 Inserting the Micro Cell Holder...
  • Page 4 09931256D 4. Insert the micro cells into the cell holder. Reference Sample Figure 7 Inserting the micro cells into the cell holder How to adjust the M icrocell holder so that the beam passes through the m icro cell w indow Run Scan mode and select Method.
  • Page 5 09931256D Attach the white paper (ex. post-it note) on the right side wall of the sample compartment for checking the light passes through the window of the micro cell. In order to adjust the right-and - left position of the micro cell holder, loosen the two hand bolts on the plate of the microcell holder.
  • Page 6 09931256D In order to adjust the height of the micro cell holder, loosen the knob on the side of the microcell holder. Adjust the height by moving the micro cell holder up and down slowly so that the large portion of light passes through the window of the micro cell.
