Detail A
leveling glide

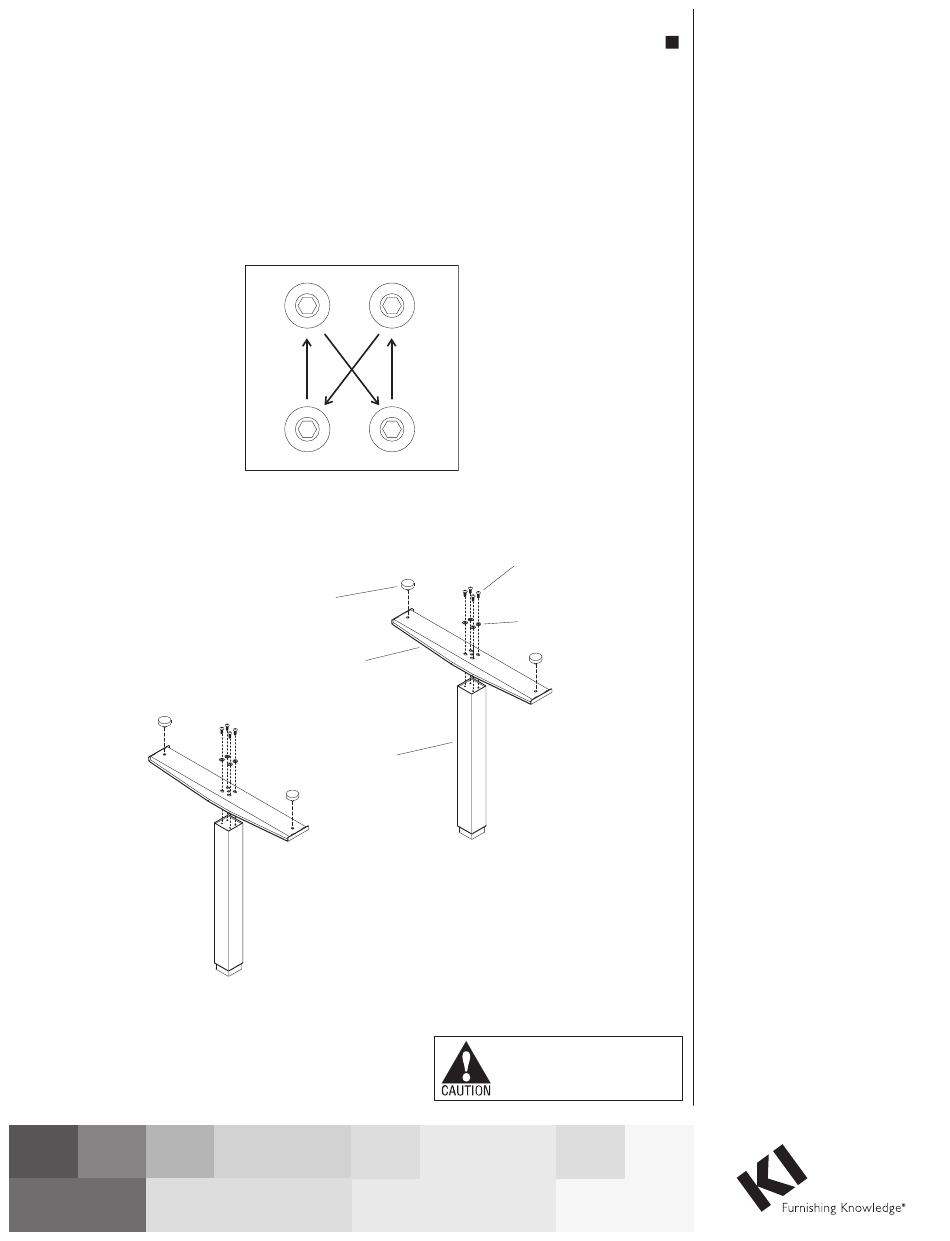

Figure 1
Assembly Instructions
WorkUp
®
M8 x 20 mm
screw
flat
washer
foot
column
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

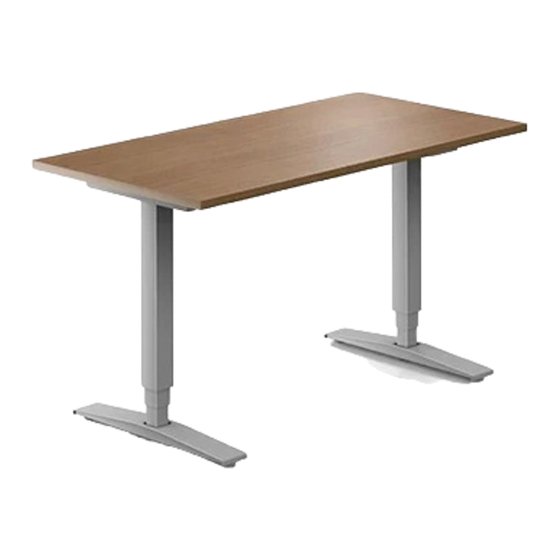

Adjustable Table
Model RT
April 2019
Tools Required
•
•
Feet-to-Columns Assembly
1. Set the column on end with the
2. Place the foot over the column
3. Attach the foot using four
4. Thread leveling glides into the holes
5. Repeat steps 1 through 4 for the
#3 Phillips Screwdriver
5 mm Hex Key
Note: Before discarding any
packaging, confirm all components
received against the packing list.
Table assembly should be done on a
clean flat floor.
Note: When tightening the M8
screws, first twist in all four screws
"finger tight", then tighten the screws
one quarter turn at a time using
a diagonal tightening pattern as
shown in Detail A. Repeat the
diagonal pattern until all four screws
are tight (Figure 1 & Detail A).
smaller (inner) square tube on the
floor. The threaded holes visible
on the end of the column will be in
a rectangular (not square) pattern
(Figure 1).
end so the column fits into the
square hole in the foot. The slotted
holes in the foot should line up with
the four holes in the column end. If
not the foot needs to be removed and
repositioned at 90 degrees
(Figure 1).
M8 x 20 mm screws and four 8 mm
flat washers, tightening each screw
one quarter turn at a time in a
diagonal pattern until all four screws
are tight (Figure 1 & Detail A).
at the ends of the foot (Figure 1).
Note: If the roller foot option was
purchased, one foot will have
pre-assembled rollers.
second foot and column (Figure 1).
