KI WorkUp HF Assembly Instructions Manual

Motor-Operated Furnishing
-FOR COMMERICAL USE ONLY-
Assembly Instructions
leveling
glide
M8 x 18 mm
screw
flat
washer
foot
column

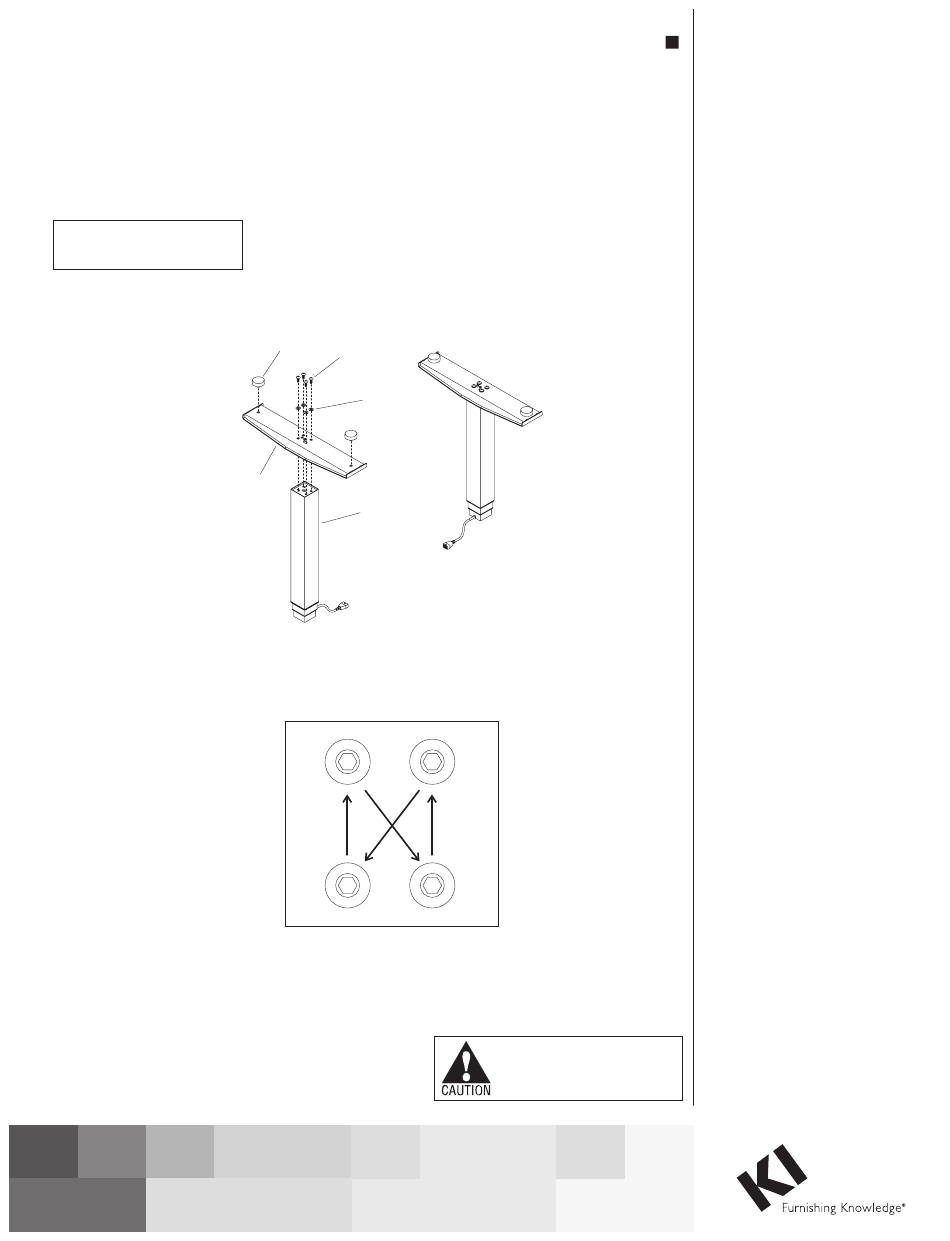

Figure 1
Detail A

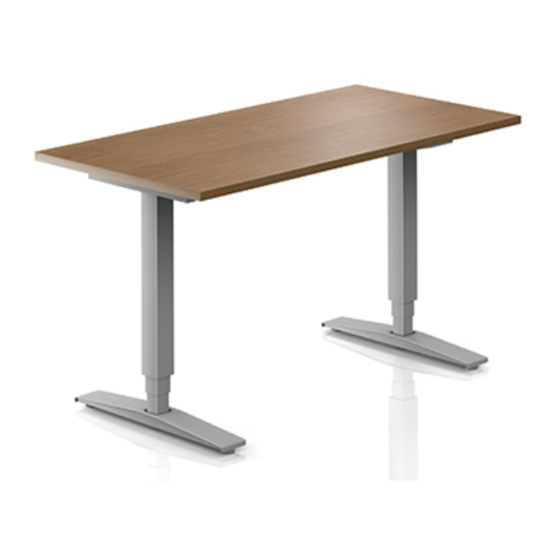

WorkUp Adjustable Table
®
Model HF
April 2019
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Tools Required
• #2 Phillips Screwdriver
• #3 Phillips Screwdriver
• 5 mm Hex Key
Note: Before discarding any
packaging confirm all components
received against the packing list.
Table assembly should be done on a
soft, protective surface.
Note: When tightening the
M8 x 18 mm screws, first twist in
all four screws "finger tight", then
tighten the screws one quarter turn
at a time using a diagonal tightening
pattern as shown in Detail A. Repeat
the diagonal pattern until all four
screws are tight (Figure 1 &
Detail A).
Feet-to-Columns Assembly
1. Set the column on end with the
smaller (inner) square tube on the
floor. The threaded holes visible
on the end of the column will be in
a rectangular (not square) pattern
(Figure 1).
2. Place the foot over the column end
so the column fits into the square
hole in the foot. The slotted holes
in the foot should line up with the
four holes in the column end. If not
the foot needs to be removed and
repositioned at 90 degrees
(Figure 1).
3. Attach the foot using four
M8 x 18 mm screws and four 8 mm
flat washers, tightening each screw
one quarter turn at a time in a
diagonal pattern until all four screws
are tight (Figure 1 & Detail A).
4. Thread leveling glide into the holes
at the ends of the foot (Figure 1).
Note: If the roller foot option was
purchased, one foot will have
pre-assembled rollers.
5. Repeat steps 1 through 4 for the
second foot and column (Figure 1).
