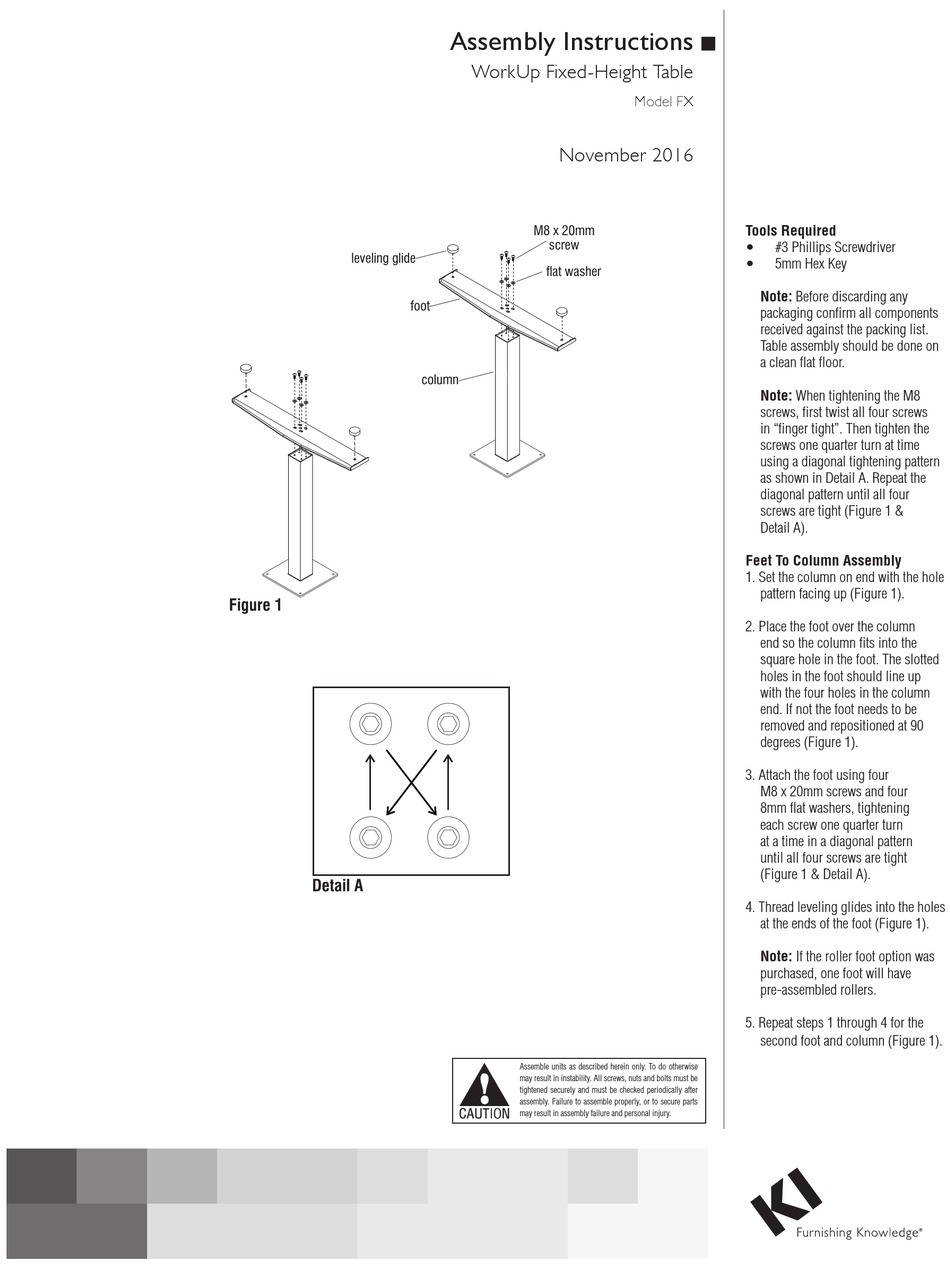

KI FX Assembly Instructions

Workup fixed-height table

Advertisement

leveling glide
foot
Figure 1
Detail A
Model FX
Assembly Instructions
WorkUp Fixed-Height Table
November 2016
M8 x 20mm
screw
flat washer
column
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Model FX
Assembly of Table

Tools Required:

·
#2 Phillips Screwdriver
·
#3 Phillips Screwdriver
Tools Required
·
#3 Phillips Screwdriver
5mm Hex Key (provided)
5mm Hex Key
Note: Before discarding any packaging
Note: Before discarding any
confirm all components received against t
packaging confirm all components
received against the packing list.
packing list. Table assembly should be do
Table assembly should be done on
on a clean flat floor.
a clean flat floor.
Note: When tightening the M8 screws, first
Note: When tightening the M8
in all four screws "finger tight". Then tighten
screws, first twist all four screws
screws one quarter turn at time using a diag
in "finger tight". Then tighten the
screws one quarter turn at time
tightening pattern as shown in Detail A. Rep
using a diagonal tightening pattern
the diagonal pattern until all four screws are
as shown in Detail A. Repeat the
(Detail A & Figure 1).
diagonal pattern until all four
screws are tight (Figure 1 &
Detail A).
Assemble Feet To Columns

Feet To Column Assembly

1. Set the column on end with the smaller
1. Set the column on end with the hole
(inner) square tube on the floor. The threa
pattern facing up (Figure 1).
holes visible on the end of the column will
a rectangular (not square) pattern (Figure
2. Place the foot over the column
end so the column fits into the
2. Place the foot over the column end so t
square hole in the foot. The slotted
column fits into the square hole in the foot. T
holes in the foot should line up
slotted holes in the foot should line up with
with the four holes in the column
end. If not the foot needs to be
four holes in the column end. If not the foo
removed and repositioned at 90
needs to be removed and repositioned at 9
degrees (Figure 1).
degrees(Figure 1).
3. Attach the foot using four
3. Attach the foot using four M8 x 20mm
M8 x 20mm screws and four
screws and four 8mm flat washers (Figure 1)
8mm flat washers, tightening
4. Thread leveling glides into the holes a
each screw one quarter turn
ends of the foot (Figure 1).
at a time in a diagonal pattern
until all four screws are tight
5. Repeat steps 1 through 4 for the seco
(Figure 1 & Detail A).
foot and column (Figure 1).
4. Thread leveling glides into the holes
at the ends of the foot (Figure 1).
Note: If the roller foot option was
purchased, one foot will have
pre-assembled rollers.
5. Repeat steps 1 through 4 for the
second foot and column (Figure 1).
