KI WorkUp CR Assembly Instructions

Adjustable table

Advertisement

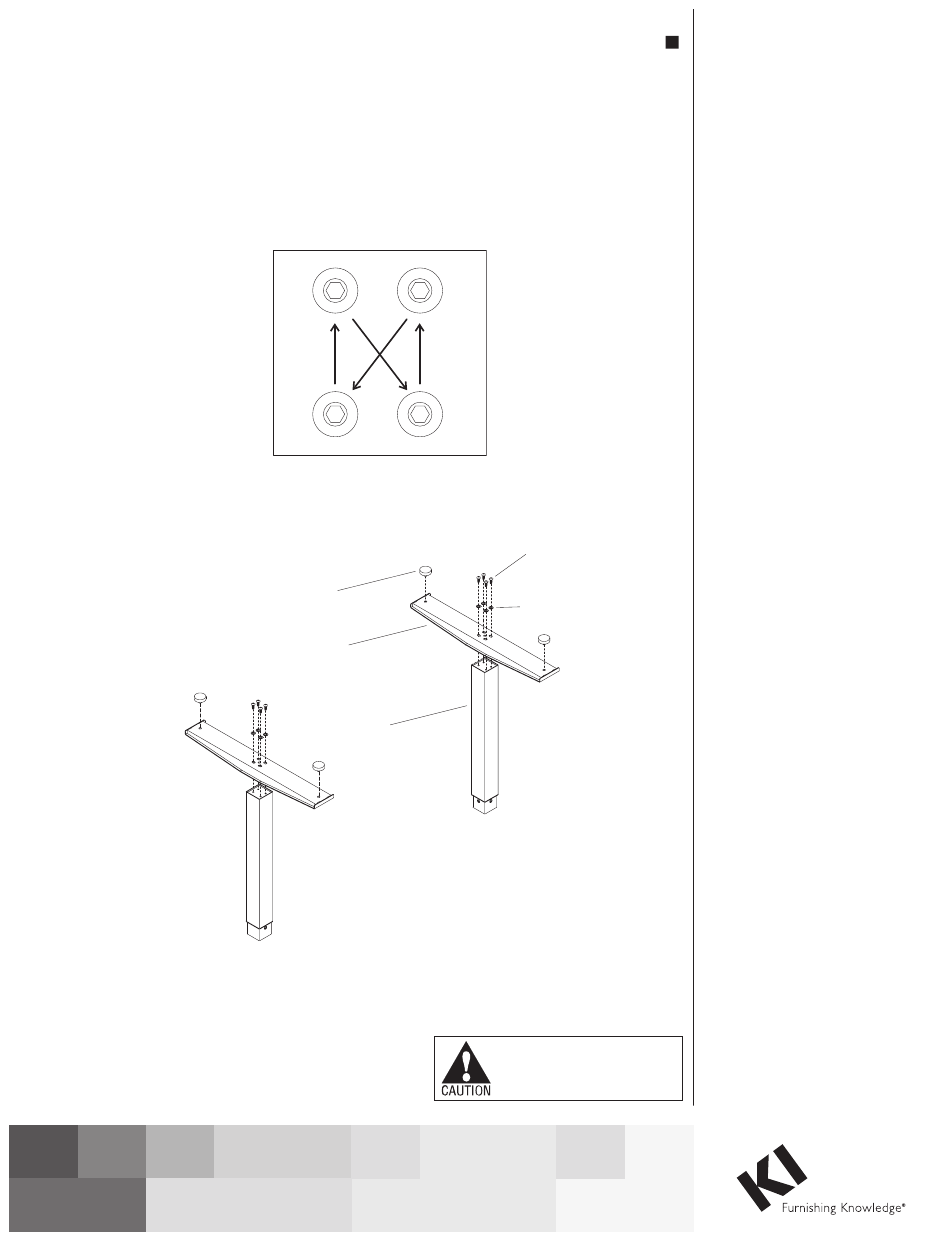

Detail A
leveling glide
foot
column
Figure 1
Assembly Instructions
WorkUp
Adjustable Table
®
Model CR
October 2019
M8 x 20 mm
screw
8 mm flat
washer
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

Tools Required

#3 Phillips Screwdriver
5 mm Hex Key
Note: Before discarding any
packaging, confirm all components
received against the packing list.
Table assembly should be done on a
soft, protective surface.
Note: When tightening the
M8 screws, first twist in all four
screws "finger tight". Then tighten
the screws one quarter turn at a time
using a diagonal tightening pattern
as shown in Detail A. Repeat the
diagonal pattern until all four screws
are tight (Detail A & Figure 1).

Feet-to-Columns Assembly

1. Set a column on end with the smaller
(inner) square tube on the floor. The
threaded holes visible on the end of
the column will be in a rectangular
(not square) pattern (Figure 1).
2. Place the foot over the column
end so the column fits into the
square hole in the foot. The slotted
holes in the foot should line up with
the four holes in the column end. If
not the foot needs to be removed and
repositioned at 90 degrees
(Figure 1).
3. Attach the foot using four
M8 x 20 mm screws and four
8 mm flat washers, tightening each
screw one quarter turn at a time in a
diagonal pattern until all four screws
are tight (Figure 1 & Detail A).
4. Thread leveling glides into the holes
at the ends of the foot (Figure 1).
Note: If the roller foot option was
purchased, one foot will have
pre-assembled rollers.
5. Repeat steps 1 through 4 for the
second foot and column (Figure 1).
