Spectrum Analyzer Start-Up Instructions; General Instructions - BIRD SignalHawk SH-36S-PC General Start-Up Instructions

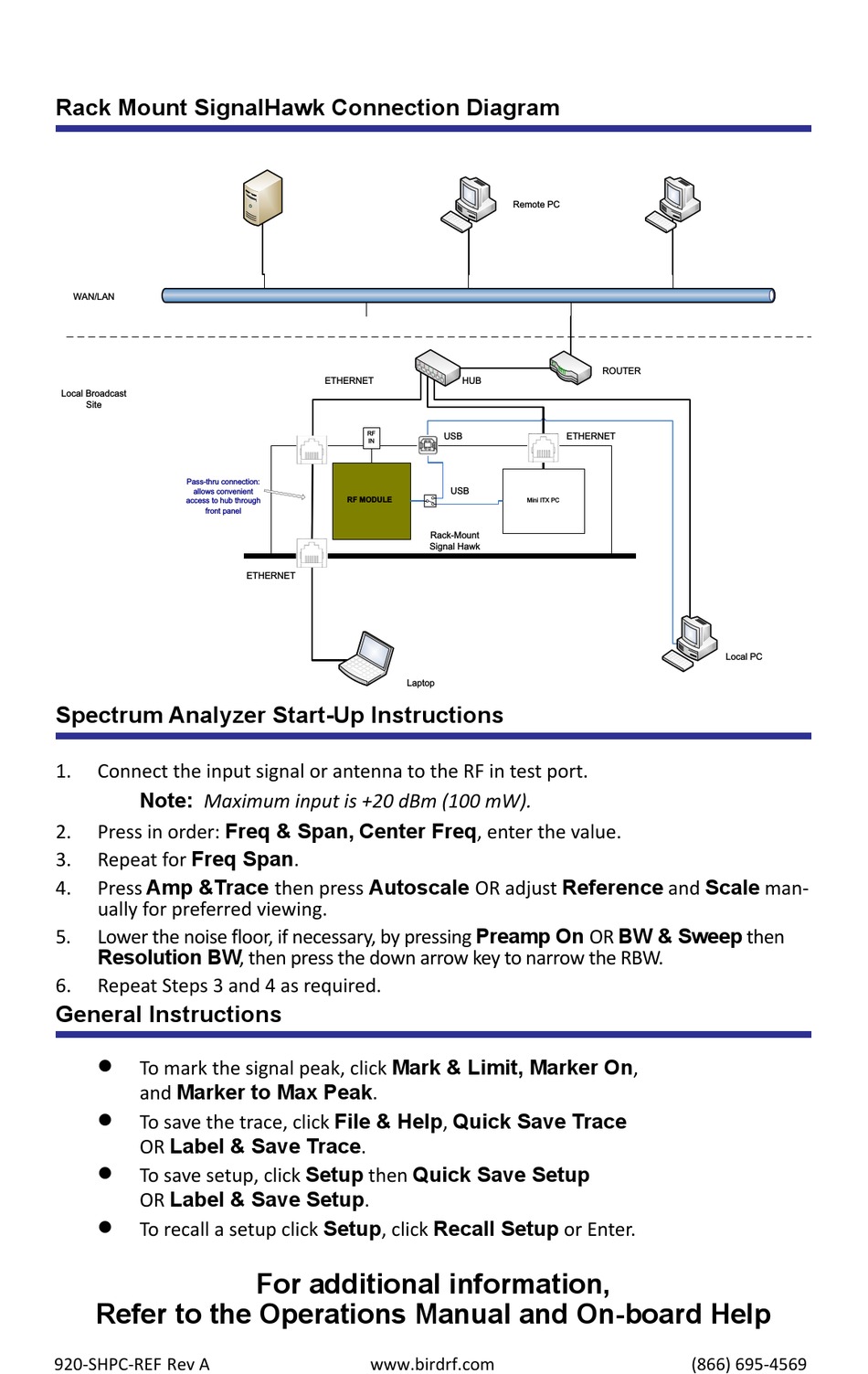

Rack Mount SignalHawk Connection Diagram
WAN/LAN
Local Broadcast
Site
Pass-thru connection:
allows convenient
access to hub through
front panel

Spectrum Analyzer Start-Up Instructions

1. Connect the input signal or antenna to the RF in test port.
Note: Maximum input is +20 dBm (100 mW).
Press in order: Freq & Span, Center Freq, enter the value.
2.
Repeat for Freq Span.
3.
Press Amp &Trace then press Autoscale OR adjust Reference and Scale man-
4.
ually for preferred viewing.
Lower the noise floor, if necessary, by pressing Preamp On OR BW & Sweep then
5.
Resolution BW, then press the down arrow key to narrow the RBW.
6. Repeat Steps 3 and 4 as required.

General Instructions


To mark the signal peak, click Mark & Limit, Marker On,
and Marker to Max Peak.

To save the trace, click File & Help, Quick Save Trace
OR Label & Save Trace.

To save setup, click Setup then Quick Save Setup
OR Label & Save Setup.

To recall a setup click Setup, click Recall Setup or Enter.
Refer to the Operations Manual and On-board Help
920-SHPC-REF Rev A
ETHERNET
RF
IN
RF MODULE
ETHERNET
Laptop
For additional information,
www.birdrf.com
Remote PC
HUB
USB ETHERNET
USB
Mini ITX PC
Rack-Mount
Signal Hawk
ROUTER
Local PC
(866) 695-4569
