Bird

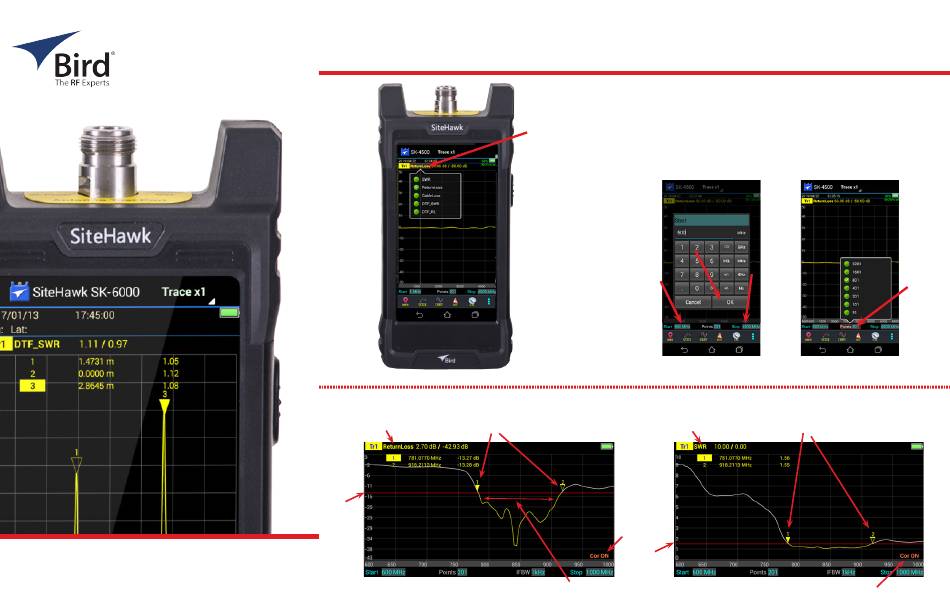

QUICK START GUIDE
Measures how well all the components in a system are matched to 50 Ω. Results are given in VSWR or Return Loss (dB).
Use Markers and Limit Line. Enter frequency range to sweep, select number of data points, Calibrate using the Calibration Combo.
Using Markers and a limit line allows for a quick and accurate reading. Nothing has been changed in each sweep except for the Mode from ReturnLoss to SWR.
Antenna sweep in Return Loss
Limit Line
-14dB

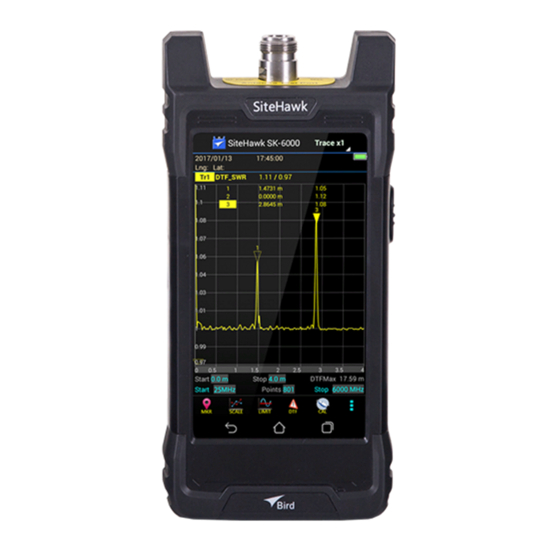

SiteHawk
®
TM
MEASURE/MATCH
1. Select Mode of operation
by tapping here, then
make your selection.
EXAMPLES OF AN ANTENNA FREQUENCY RESPONSE SWEEP IN RETURN LOSS AND VSWR.
Markers
Correction
On
Antenna Resonant Band
2. Set the Start & Stop
5. Select number of data
frequency range
points by tapping here and
3. Enter the frequency
making your selection.
4. Press OK
6. Calibrate - see calibrating
the SiteHawk
Same antenna sweep in SWR
Markers
Limit Line
-14dB
Correction On
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BIRD SiteHawk SK-6000-TC
Summary of Contents for BIRD SiteHawk SK-6000-TC
- Page 1 Using Markers and a limit line allows for a quick and accurate reading. Nothing has been changed in each sweep except for the Mode from ReturnLoss to SWR. Antenna sweep in Return Loss Markers Same antenna sweep in SWR Markers Limit Line -14dB Correction Bird SiteHawk ® Limit Line -14dB QUICK START GUIDE Antenna Resonant Band Correction On...
- Page 2 DISTANCE TO FAULT EXAMPLES DISTANCE TO FAULT Distance to Fault (DTF) will pinpoint where the problem occurs. Need to know the frequency of operation, cable type, and the distance from the transmitter to the antenna. Antenna Return Loss Add 10-20% additional length to the Stop Distance. It is also very helpful to have a diagram of your system so that components can be identified. = -14dB It is not always possible to have such a diagram.
