RUSTA KAMADO Manual page 13

Assembly instructions
7
Assembly instructions
14
14
9
14
STEP 12 –

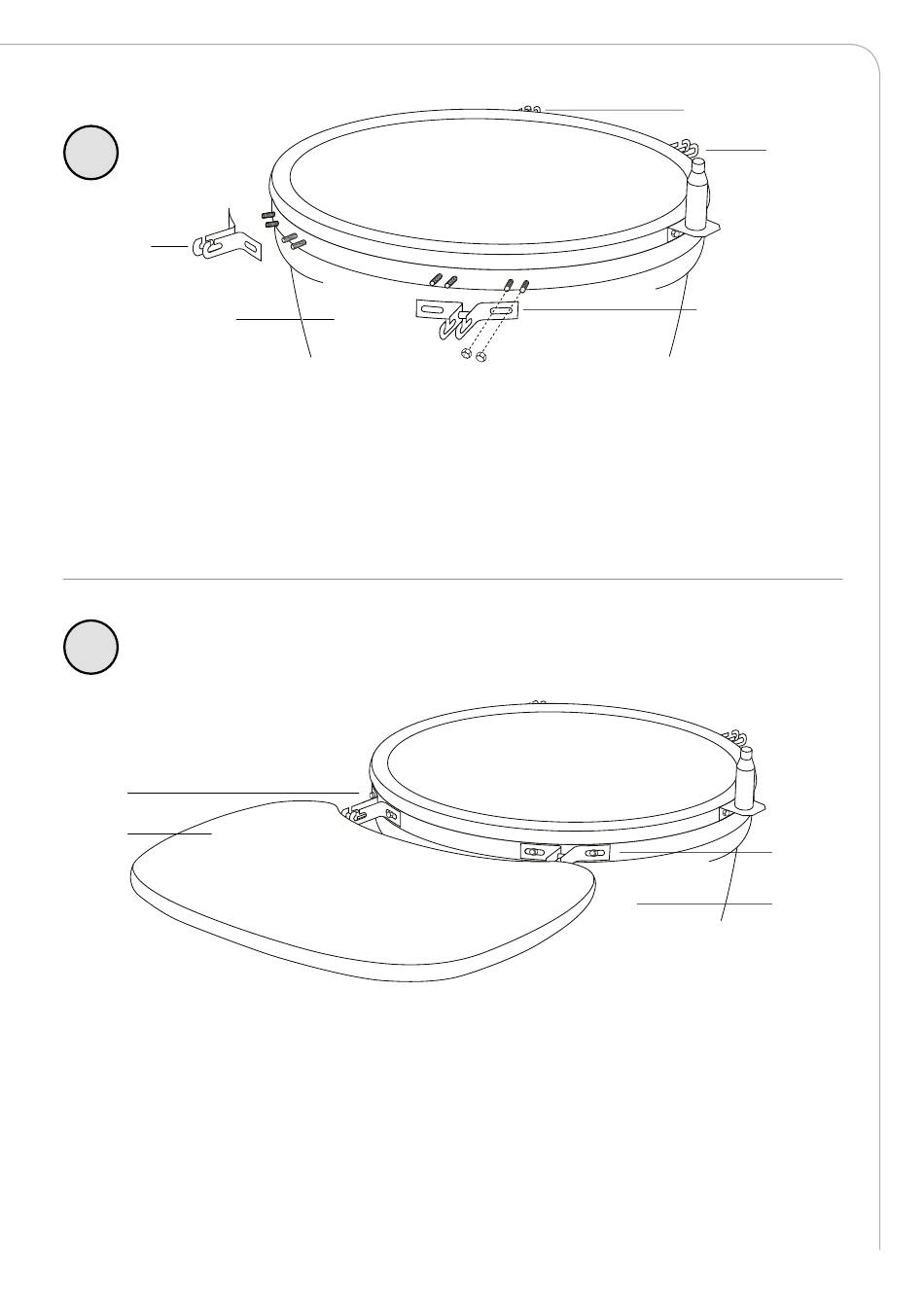

Attach the 2x table brackets (14) to the Kamado Grill (9) using the 4x pre-attached bolts and dome
9
headed nuts per bracket. Please note the position shown in the above diagram
Attach the 2x table brackets (15) to the Kamado Grill (9) using the 4x pre-attached bolts and dome
STEP 13 –
headed nuts per bracket. Please note the position shown in the above diagram.
STEP 12 –
Attach the 2x table brackets (14) to the Kamado Grill (9) using the 4x pre-attached bolts and dome
headed nuts per bracket. Please note the position shown in the above diagram
Attach the 2x table brackets (15) to the Kamado Grill (9) using the 4x pre-attached bolts and dome
STEP 13 –
headed nuts per bracket. Please note the position shown in the above diagram.
8
14
13
14
14
13 13
STEP 14 - Insert the 2x table hinge into each of the table brackets (14 & 15).
The Kamado Grill is now ready to use but please ensure that you have read the curing instructions
thoroughly prior to use.
STEP 14 - Insert the 2x table hinge into each of the table brackets (14 & 15).
The Kamado Grill is now ready to use but please ensure that you have read the curing instructions
thoroughly prior to use.
9
Attach the 2x table brackets (14) to the barbecue (9) using the 4x
pre-attached bolts and dome headed nuts per bracket. Please
note the position shown in the above diagram.
• Insert the 2x table hinge into each of the table brackets (14 and 15).
• The barbecue is now ready to use but please ensure that you have
read the curing instructions thoroughly prior to use.
