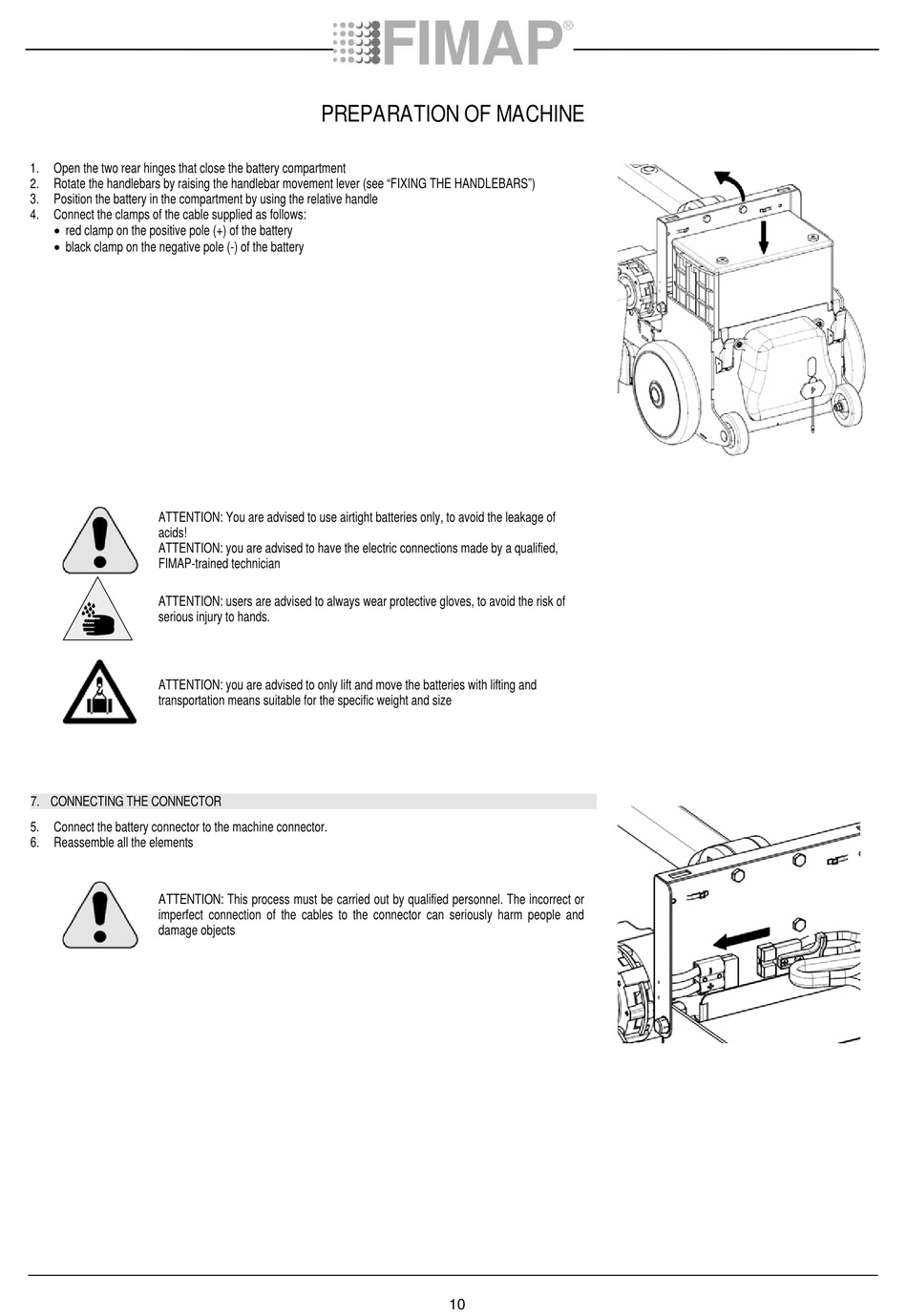

1. Open the two rear hinges that close the battery compartment
2. Rotate the handlebars by raising the handlebar movement lever (see "FIXING THE HANDLEBARS")
3. Position the battery in the compartment by using the relative handle
4. Connect the clamps of the cable supplied as follows:
 red clamp on the positive pole (+) of the battery
 black clamp on the negative pole (-) of the battery
ATTENTION: You are advised to use airtight batteries only, to avoid the leakage of
acids!
ATTENTION: you are advised to have the electric connections made by a qualified,
FIMAP-trained technician
ATTENTION: users are advised to always wear protective gloves, to avoid the risk of
serious injury to hands.
ATTENTION: you are advised to only lift and move the batteries with lifting and
transportation means suitable for the specific weight and size

7. CONNECTING THE CONNECTOR

5. Connect the battery connector to the machine connector.
6. Reassemble all the elements
ATTENTION: This process must be carried out by qualified personnel. The incorrect or
imperfect connection of the cables to the connector can seriously harm people and
damage objects
PREPARATION OF MACHINE
10
