  • Page 1 Operator manual PUSH Dispensing valve UFB1...

  • Page 2: Revision Status: Index

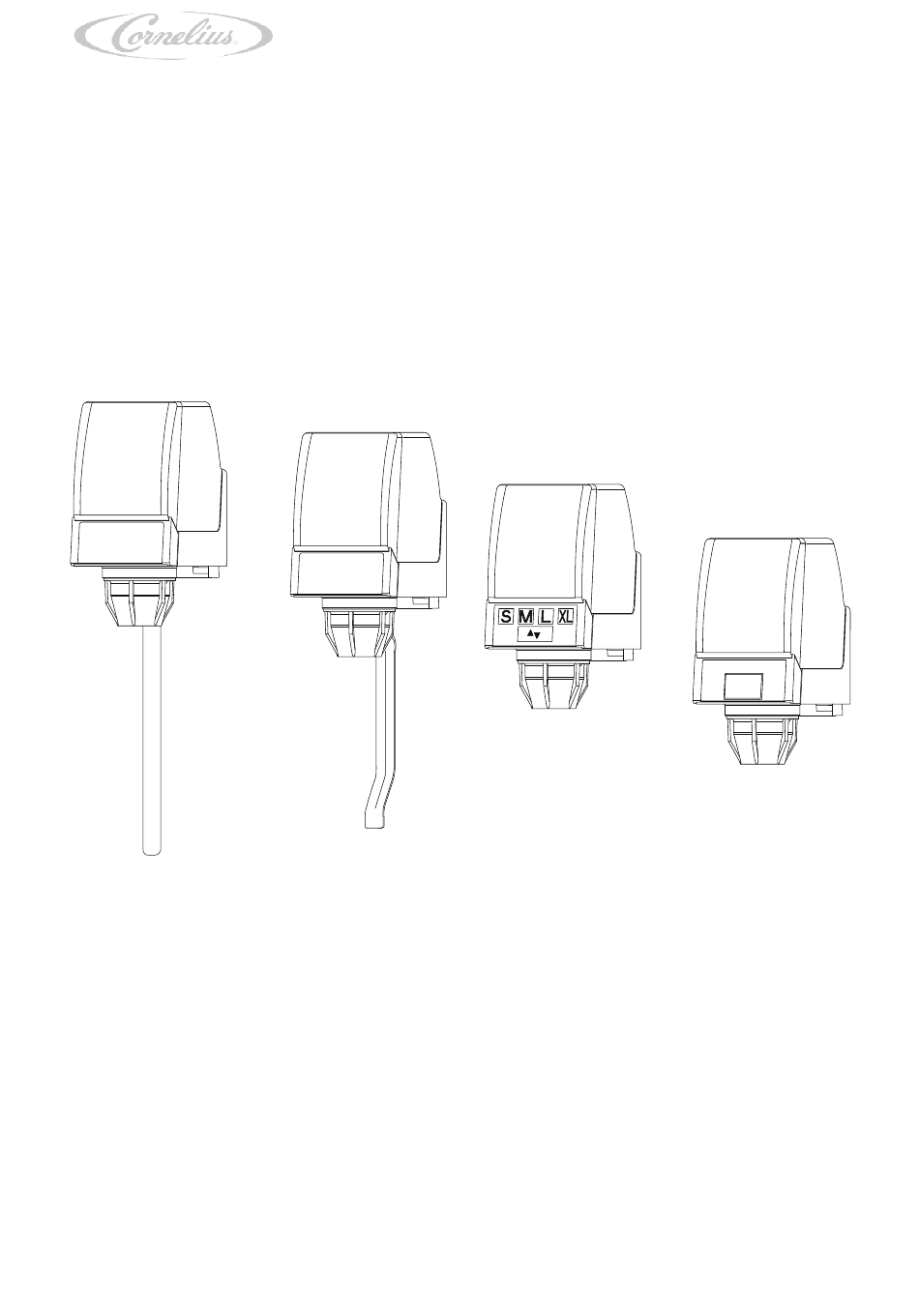

    Dispensing valve UFB1 portion control: Part number: 741000401 (3 oz) UFB1 push button: Part number: 741000399 (3 oz) | 740001214 (4 oz) UFB1 dispensing lever: Part number: 741000403 (3 oz) | 740001213 (4 oz) UFB1 OptiFill: Part number: 741000405 (3 oz)

  • Page 3: Table Of Contents

    ......Dispensing valve UFB1 portion control ......
  • Page 4 ......4.1.1 Dispensing valve UFB1 portion control ....

  • Page 5: Safety

    By using the unit as intended you will not only protect yourself, but also prevent damage oc- curring to the dispensing valve and its components! Dispensing valves from the UFB1 series (referred to as “dispensing valve” in the following) are intended for use as dispensers of non-alcoholic beverages and their basic ingredients.

  • Page 6: Staff

    With regard to operating the dispensing valve, Cornelius Deutschland GmbH recommends ob- serving the national regulations of the country of use which govern the operation of beverage- dispensing systems.

  • Page 7: Presentation Of Warnings

    Not all of the following key terms need to be used in this documentation. Risk = extent x likelihood of occurrence Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1...

  • Page 8: Safety Information

    Improperly executed work at the dispensing valve will cause dangers to persons and damage to the unit. • Have all work at the dispensing valve carried out by Cornelius Deutschland GmbH or by a service partner. WARNING! Risk of personal injury and equipment damage due to the use of non-...

  • Page 9: Safety Information To Prevent Personal Injury And Equipment Damage

    Children must be supervised to ensure that they do not play at or with the dispensing valve. NOTICE! In particular, safety standards are to be observed in their scope of validity (e.g. EN 60335-2-75). Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...

  • Page 10: Handling The Dispensing Valve Prior To Installation

    Unpacking the dispensing valve NOTICE! Cornelius Deutschland GmbH is not responsible for damaged deliveries. If any damage is found, all packaging material is to be kept and the freight carrier is to be contacted. If the freight carrier is not contacted within 48 hours of receipt of delivery, the warranty claim might be rendered void.

  • Page 11: Storage

    • Check the assemblies and components for damage before each use/ before installing them. Do not install assemblies or components that show visible signs of ageing. Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...

  • Page 12: Transport And Packaging

    Choose a suitable packaging when returning the dispensing valve itself or one of its compo- nents to Cornelius Deutschland GmbH, e.g. for repairs. In particular, make sure that the dis- pensing valve and any components are protected from shock/impact, moisture, dirt and electrostatic discharge (ESD).

  • Page 13: Description

    Dispensing valve UFB1 dispensing lever; see chapter 3.3. • Dispensing valve UFB1 OptiFill; see chapter 3.4. For the dispensing valve UFB1, a soda lever is available as an option, which allows dispensing purely of soda, see chapter 4.2.5. Dispensing valve UFB1 portion control Via the dispensing valve UFB1 portion control, a “TIME BASED”...

  • Page 14: Dispensing Valve Ufb1 Push Button

    Description Dispensing valve UFB1 push button Via the dispensing valve UFB1 push button, “START & STOP” dispensing is possible by press- ing the “PUSH” button, see chapter 4.2.2. The dispensing valve UFB1 push button comprises the following components: Fig. 2/1 Control panel Fig.

  • Page 15: Dispensing Valve Ufb1 Optifill

    Description Dispensing valve UFB1 OptiFill Via the dispensing valve UFB1 OptiFill, “START & STOP” dispensing is possible by actuating the dispensing lever, see chapter 4.2.4. The dispensing valve UFB1 OptiFill features a safety mechanism. This safety mechanism pre- vents the beverage from overflowing as soon as the beverage or foam touches the dispensing lever.

  • Page 16: Dispensing Valve Ufb1 Push Button

    Description 3.5.2 Dispensing valve UFB1 push button Fig. 6/1 “PUSH” button PUSH Fig. 6 3.5.3 Dispensing valve UFB1 dispensing lever Fig. 7/1 Dispensing lever Fig. 7 Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...

  • Page 17: Dispensing Valve Ufb1 Optifill

    The beverage components flowing from the valve are fed to the baffle with diffusor in the dis- pensing nozzle and mixed there. From there, they are poured into the cup via the dispensing nozzle. Multiple dispensing nozzles are available for the dispensing valve UFB1. • Standard dispensing nozzle, see chapter 3.6.1.

  • Page 18: Standard Dispensing Nozzle

    Functions within the dispensing system NOTICE! The operator manual applicable to the base unit contains the description of how the dispensing valve functions within a dispensing system. Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...

  • Page 19: Technical Data

    Description Technical data 3.8.1 Dispensing valve UFB1 portion control Description Parameter Value Unit Height 140/5.5 mm/in. Dimensions Width 63.5/2.5 mm/in. Depth 140/5.5 mm/in. 3oz valve 1.5 – 3 (45 – 90) oz/sec (ml/sec) Flow rates 4oz valve 2 – 4 (60 – 120)

  • Page 20: Dispensing Valve Ufb1 Dispensing Lever

    Description 3.8.3 Dispensing valve UFB1 dispensing lever Description Parameter Value Unit Height 241/9.5 mm/in. Dimensions Width 63.5/2.5 mm/in. Depth 140/5.5 mm/in. 3oz valve 1.5 – 3 (45 – 90) oz/sec (ml/sec) Flow rate 4oz valve 2 – 4 (60 – 120)
  • Page 21 Replace the product container, see base unit documentation. NOTICE! If you would like to change another beverage, please inform your service partner. Due to the different designs of the dispensing valve UFB1, you have several discharge options at your disposal: • “TIME BASED”, see chapter 4.1.
  • Page 22 In “TIME BASED” mode, the beverage is dispensed for a specified time according to the cup size selected. 4.1.1 Dispensing valve UFB1 portion control 1. Place a cup on the drip tray of the base unit and under the dispensing nozzle of the dis- pensing valve.
  • Page 23 Dispensing beverages 4.2.2 Dispensing valve UFB1 push button 1. Place a cup on the drip tray of the base unit and under the dispensing nozzle of the dis- pensing valve. 2. Press and hold the “PUSH” button (Fig. 14/1). The beverage is dispensed.
  • Page 24 Dispensing beverages 4.2.4 Dispensing valve UFB1 OptiFill 1. Place a cup on the drip tray of the base unit and under the dispensing nozzle of the dis- pensing valve. 2. Push the dispensing lever (Fig. 16/1) backwards with the cup.
  • Page 25 Baffle seal Perform a visual inspection. Please contact your service partner. Every 3 months Dispensing valve, interior Clean the valves. Please contact your service partner. Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...

  • Page 26: Visually Inspecting The Dispensing Valve

    Visually inspecting the dispensing nozzle 1. Unlock the outlet nozzle by turning it. 2. Pull the outlet nozzle with the baffle downwards out of the dispensing valve. Fig. 19 Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 27 10. Lock the outlet nozzle in the dispensing valve by turning. Make sure that the dispensing nozzle is inserted correctly as otherwise the beverage cannot be dispensed correctly. Fig. 22 Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1...

  • Page 28: Cleaning The Dispensing Valve

    1. Unlock the outlet nozzle by turning it. 2. Pull the outlet nozzle with the baffle downwards out of the dispensing valve. Fig. 23 Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 29 Dry the dispensing valve with a paper towel. Fig. 25 NOTICE! Please use gloves! 4. Clean the dispensing nozzle mount from underneath with a disinfectant. Fig. 26 Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...

  • Page 30: Cleaning The Dispensing Nozzle

    Never use abrasive cleaners or oily solvents, and never put the individual parts in the dishwasher, as this may damage the material. NOTICE! Please use gloves! Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 31 3. Remove the baffle (Fig. 29/1) and (Fig. 30/1) from the out- let nozzle (Fig. 29/2) and (Fig. 30/2). Fig. 29 Standard dispens- ing nozzle Fig. 30 Juice dispensing nozzle Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...
  • Page 32 6. Insert the baffle (Fig. 33/1) and (Fig. 34/1) into the outlet nozzle (Fig. 33/2) and (Fig. 34/2). Fig. 33 Standard dispens- ing nozzle Fig. 34 Juice dispensing nozzle Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 33 8. Lock the outlet nozzle in the dispensing valve by turning. Make sure that the dispensing nozzle is inserted correctly as otherwise the beverage cannot be dispensed correctly. Fig. 35 Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1...

  • Page 34: Troubleshooting Table

    Connect a new syrup container and has had CO added (stainless (see base unit documentation) steel tanks only) Dirty valve Please contact your service part- Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 35 NOTICE! Crushed ice in the cup may also cause decarbonisation. When the finished beverage comes into contact with sharp-edged ice, CO2 is released from the dispensed drink. Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...

  • Page 36: Applicable Documents

    Applicable documents Applicable documents Handover certificate Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 37 Applicable documents Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...
  • Page 38 Applicable documents Operator manual Dispensing valve Cornelius Deutschland GmbH UFB1 Document no. TD2004000 Version 15/03/2019, Index 0...
  • Page 39 Applicable documents Cornelius Deutschland GmbH Operator manual Dispensing valve Document no. TD2004000 UFB1 Version 15/03/2019, Index 0...
