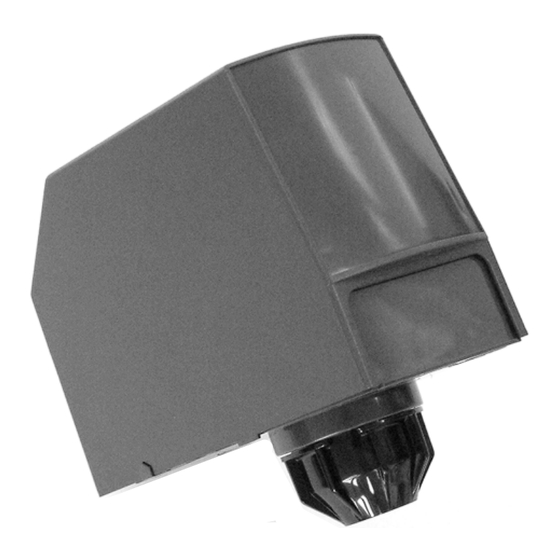

- Page 1 LEOPARD ERV ™ Operator’s Manual Release Date: September 30, 2004 Publication Number: 620919579OPR Revision Date: April 6, 2011 Revision: E Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
- Page 2 Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than...
-
Page 3: Table Of Contents
Leopard ERV™ Crew Training Information ........ -
Page 5: Safety Instructions
Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE. © 2002-2011, IMI Cornelius Inc. - 1 - Publication Number: 620919579OPR... -
Page 6: Safety Precautions
Before shipping, storing, or relocating the unit, the unit must be sanitized and all sanitizing solution must be drained from the system. A freezing ambient environment will cause residual sanitizing solution or water remaining inside the unit to freeze resulting in damage to internal components. Publication Number: 620919579OPR - 2 - © 2002-2011, IMI Cornelius Inc. -
Page 7: Introduction
(approximately 2 times a second). When the valve is fully charged and ready for use, the LED on the electronics board flashes slower (approximately 1 time a second). The LED on the keypad turns off. © 2004-2011, IMI Cornelius Inc. - 3 -... -
Page 8: Valve Type
• Operate the Self–Serve by pressing the “PUSH” switch and holding until the desired amount of product has been dispensed, then release the “PUSH” switch. Figure 4. Push Button Figure 5. Push with Water Figure 6. Water Only Button Publication Number: 620919579OPR - 4 - © 2004-2011, IMI Cornelius Inc. -
Page 9: Manual Keypad Portion Control Setup (Per Tomcat Device Instructions)
Valve Dimensions .......... 2.5” (wide) X 4.75” (long w/o backblock) X 5.5” (high) Water/Soda (Static) ...................... 30 to 120 psi Syrup (Static)........................30 to 90 psi Back Block ...........Licensed Electric Valve Style (Part number 60278110) © 2004-2011, IMI Cornelius Inc. - 5 - Publication Number: 620919579OPR... -
Page 10: Water Quality
6. Using a nylon pot brush, clean the syrup diffusers and nozzles 1 at a time and rinse with warm water. 7. Install the syrup diffusers and nozzles back in the valve. Publication Number: 620919579OPR - 6 - © 2004-2011, IMI Cornelius Inc. -
Page 11: Leopard Erv™ Crew Training Information
Extra Large button at the same time. You will see the LED flash several times during the beginning of the dispense to indicate that this is the Extra-Extra Large size. © 2004-2011, IMI Cornelius Inc. - 7 - Publication Number: 620919579OPR... -
Page 12: Out Of Syrup Condition
3. While turning diffuser pull in a downward motion. 4. Follow your normal cleaning procedures. Reinstall the Nozzle, Syrup Tube, and Diffuser in the reverse order of removal. Nozzle Syrup Tube and Diffuser Publication Number: 620919579OPR - 8 - © 2004-2011, IMI Cornelius Inc. - Page 14 IMI Cornelius Inc. www.cornelius.com...
