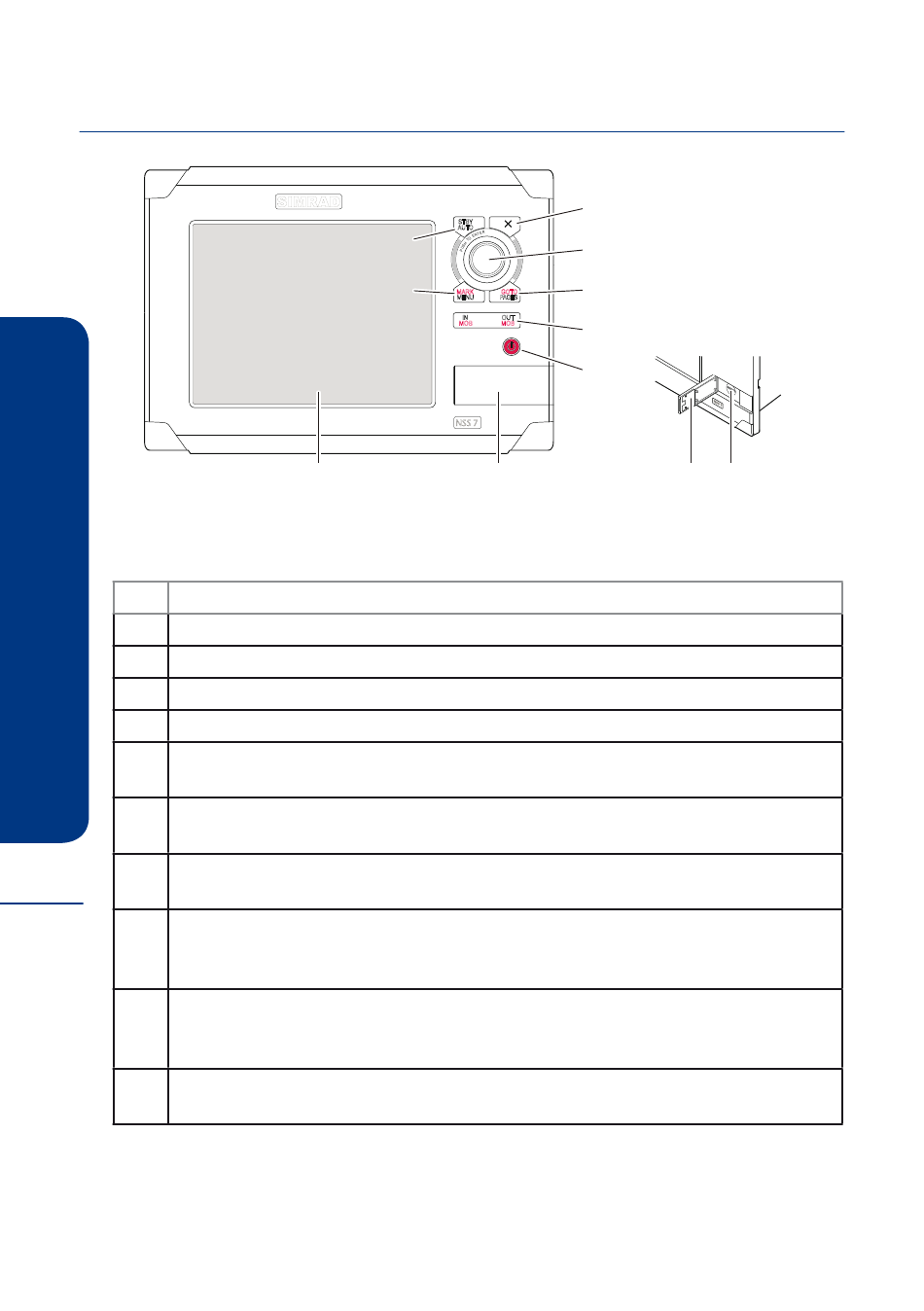

MULTIFUNCTION DISPLAY - NSS8
U
S
E
No. Description
1 Touch screen.
2 Chart card reader door.
3 Micro-SD Card reader.
4 STBY Auto key. Used for Autopilot operation.
5 MARK / MENU key. A short press activates active panel's menu.
A long press places a mark at vessel's position.
6 X key. Used to close dialogs, to return to previous menu level and to re-
move the cursor from the screen on chart, radar and echosounder panels.
34
7 Rotary knob. Used for zooming chart and for maneuvering in menus.
Press rotary knob to enter selection.
8 GOTO / PAGES key. A short press displays the Pages (Home) panel.
Repeated short presses toggles between Pages, Tools, and Settings pan-
els. A long press displays the GoTo menu.
9 IN / OUT key. Zoom key for chart, radar and echosounder panels.
A simultaneous press on both key ends will position a MOB mark at ves-
sel's position.
10 Power key. Used for turning the unit ON/OFF and for brightness adjust-
ment.
SIMRAD
4
5
1
6
STBY
AUTO
7
8
MARK GOTO
MENU PAGES
IN OUT
9
MOB MOB
10
NSS 7
2 2 3
