Rules - Simrad SimNet Installation & Use Manual

SIMNET -
To make the SimNet backbone operative it must be termi-
nated at each end (impedance: 60 Ώ). The wind vane is
fitted with an internal terminator.
Do not cut the SimNet cables. The 9 mm diameter connec-
U
tors are designed to go through the deck.
Bad, or non conform connections will result in network
N
instability.
D
Sensor with integrated cables (eg: compass, rudder)
have a defi ned length (≈ 5 m)
E
They must not be shortened,
or lengthened.
R
S
SimNet must be powered with 12 V power supply DC.
T
A
N
D
6
Max: 6 m

RULES

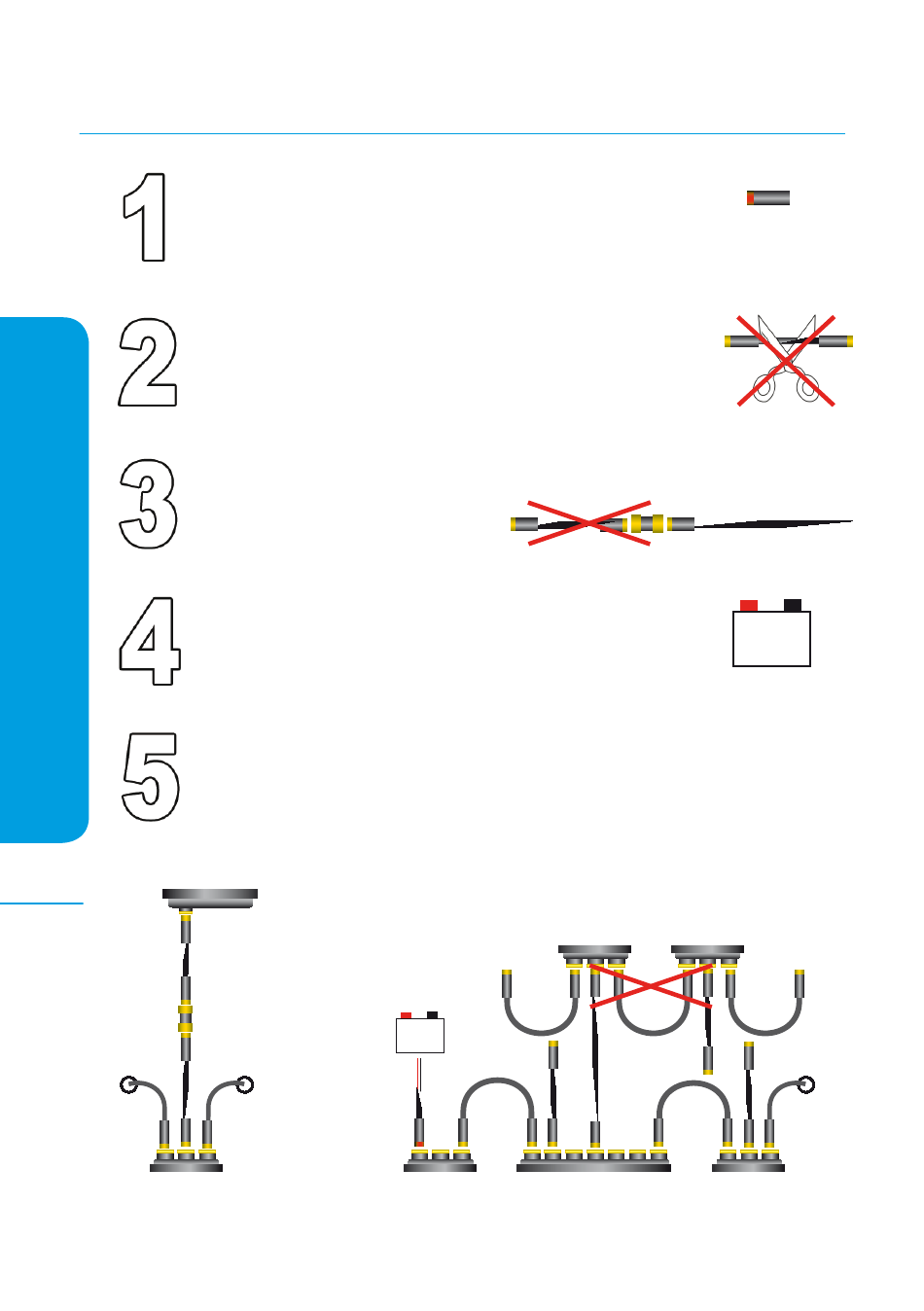

Avoid long drop cables (max 6 m) and multi derivation installations.
Failure to follow these rules will result in network instability.
12V DC
x2
12V DC
