SIMNET - NETWORK COMPONENTS
SimNet (Simrad Intelligent Marine Network) a complete intelligent network system
for easy installation and integration of Simrad marine electronics.
• Based on CAN bus / NMEA2000
• Up to 50 products in one system
• Signal rate 250 kbit/sec - 50 times faster than NMEA0183
• Maximum total SimNet cable length: 150 meters.
U
• Maximum current: 5 Amps
N
• Automatic source selection
• 2x2 twisted pair (Data pair 0.24 mm
D
• Thin cables with small 9 mm plugs
• Watertight: IP66
E
R
S
T

Connections

A
N
D
4
SimNet must be powered with 12 V power supply
; Power pair 0.5 mm
2

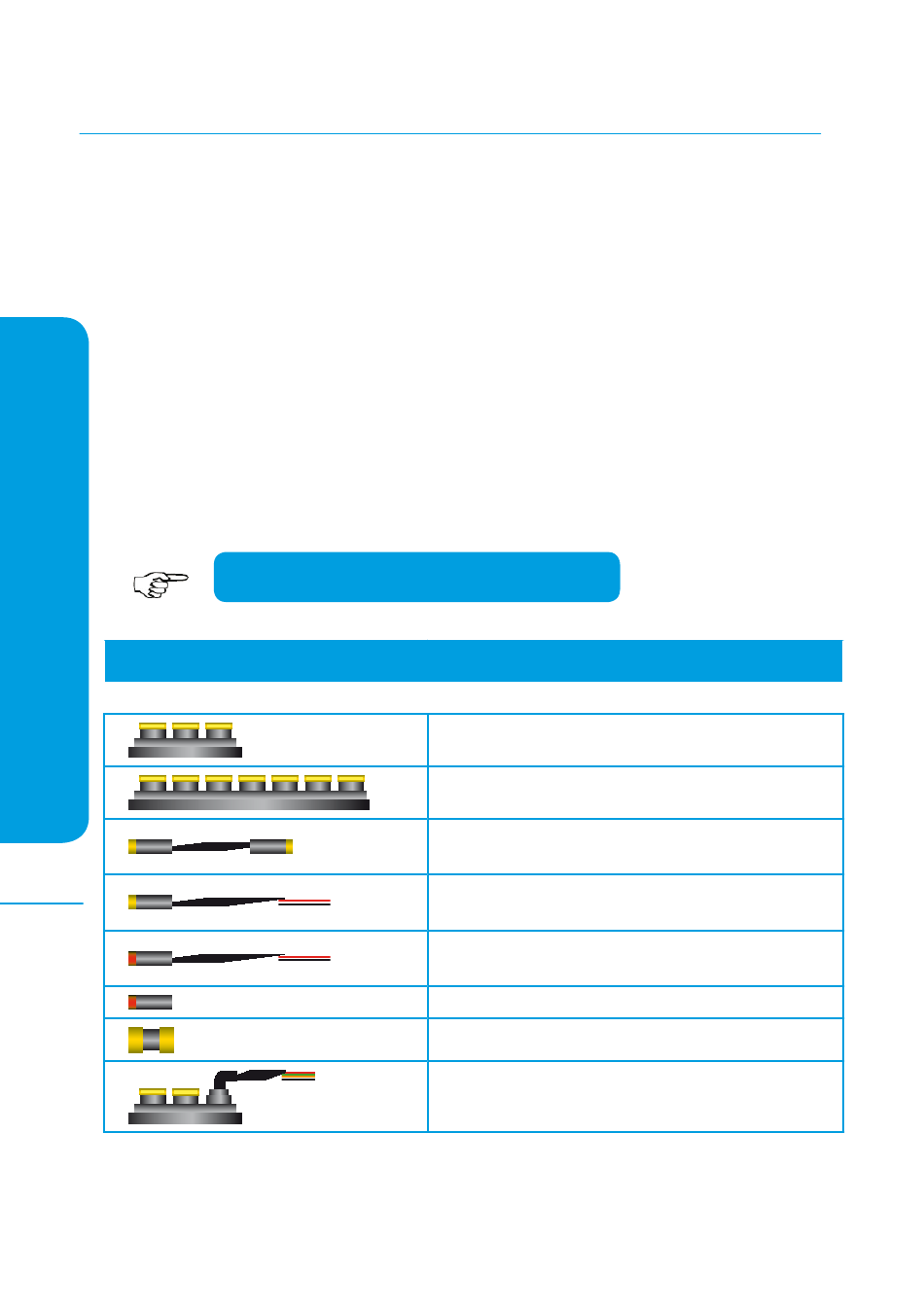

3-way SimNet joiner
7-way SimNet joiner
SimNet cables - Comes in different lenghts
(0.30 - 2 - 5 - 20 meters)
SimNet power supply cable without termina-
tor (Yellow)
SimNet power supply cable with terminator
(Red)
Terminator
Joiner
AT10 - SimNet / NMEA0183 Converter
)
