METHVEN Promix Installation Sheet

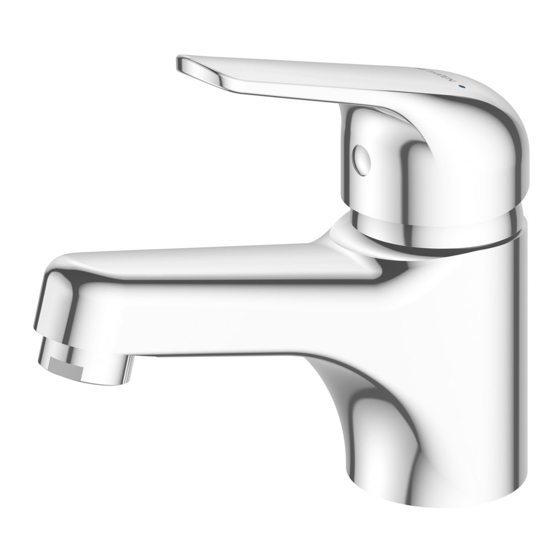

P romix S ingle Lever S ink and B asin M ixer
with adjustable cartridge for flow and temperature
Im po rtan t – P leas e read all o f the in s tru ctio n s befo re in s tallation
T he S ink M ixer is designed for A ll P ressure systems.
T he B asin M ixer is designed for M ains P ressure systems only.
R ecommended water supply temperature range is 5 to 65 ° C , maximum 80° C . T hese mixers are not recommended for use
in uncontrolled heating systems such as wetbacks or solar heater units unless a NE F A tempering valve is fitted. A S /NZ S
3 5 00 requires all hot water supplies to any sanitary fittings to be tempered to 5 5 ° C for NZ , and 5 0° C for A ustralia.
A L L P IP E W O R K M U S T B E T HO R O U G HL Y F L U S HE D P R IO R T O INS T A L L A T IO N O F T HE M IX E R . A N INL INE F IL T E R
M U S T B E F IT T E D T O P R E V E NT F O R E IG N P A R T IC L E S D A M A G ING T HE C E R A M IC C A R T R ID G E .
T ech n ical s pecificatio n s
O peratin g P res s u re: M in: 3 5 kP a, M ax 1 000kP a.
R ecommended 1 5 0 – 5 00kP a. Install a NE F A pressure limiting valve if supply pressure exceeds 1 000kP a.
In let C o n n ection s : A ll ½" B S P
In s tallatio n In s tru ctio n s S in k M ix er
A 3 5 mm diameter hole is required in the bench top.
T he bench top cannot exceed 40mm thick.
S crew the mounting studs into the bottom of the sink
mixer.
C onnect the flexible inlet hoses to the mixer body. T he hot
hose is marked with red stainless braiding.
F it the base ring and O ring to the base of the sink mixer.
P lace the hoses through the bench.
F it the mounting gasket, the mounting plate and tighten
the mounting nuts.
T wo rubber washers are provided for the flexible hose
connections to the nipples. M achined nipple ends are
required to ensure a seal to the flexible hose nuts
Ho s e R equ irem en ts
2 83 91 5
In s tallatio n In s tru ctio n s B as in M ix er
A 3 5 mm diameter hole is required in the bench top.
T he bench top cannot exceed 40mm thick.
S crew the mounting studs into the bottom of the basin
mixer.
C onnect the flexible inlet hoses to the mixer body. F it the
O ring to the base of the basin.
P lace the hoses through the bench.
F it the mounting gasket, the mounting plate and tighten the
mounting nuts.
T wo rubber washers are provided for the flexible hose
connections to the nipples.
required to ensure a seal to the flexible hose nuts
Issue: N
Machined nipple ends are
