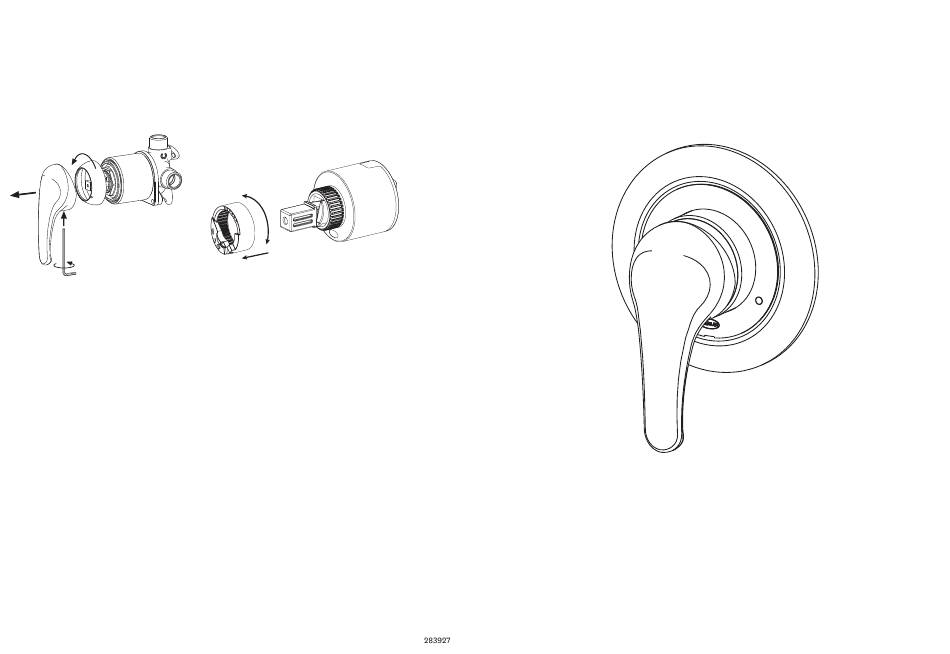

Ceramic Cartridge Adjustment
Do not remove the ceramic cartridge from the body assembly while carrying
out the following adjustments. Note, the cartridge is factory set for maximum
temperature
2.5mm hex key
Methven warrants this product against manufacturing defects and that it is suitable for use under the
operating conditions specified in this instruction sheet.
For your warranty please refer to www.methven.com or call Customer Service
New Zealand
Australia
0800 804 222
1300 638 483
ISSUE G
Mix temperature limit
_
+
USA
1800 975 5409
0800 195 1602

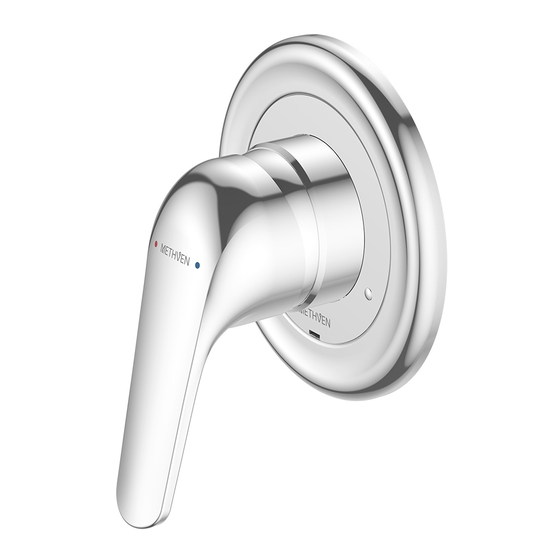

PROMIX SHOWER MIXER
Installation Guide
Technical Specifications
Operating pressure: Min 150kPa, Max 1000kPa.
Recommended 150 to 500kPa. Install a NEFA
PLV if supply pressure exceeds 1000kPa.
Operating Temperature: Recommended 5°C to
UK
65°C. Max 80°C. AS/NZS3500 requires
maximum 55°C to all sanitary fittings.
Connections: All ½" BSP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for METHVEN PROMIX SHOWER MIXER
Summary of Contents for METHVEN PROMIX SHOWER MIXER
- Page 1 Mix temperature limit 2.5mm hex key Technical Specifications Methven warrants this product against manufacturing defects and that it is suitable for use under the Operating pressure: Min 150kPa, Max 1000kPa. operating conditions specified in this instruction sheet. Recommended 150 to 500kPa. Install a NEFA For your warranty please refer to www.methven.com or call Customer Service...
- Page 2 IMPORTANT Please read all instructions before installing Avoid restrictive piping, fitting or sharp angled bends when plumbing the mixer. The maximum working pressure of the ceramic cartridge in 1000kPa. Do not plug the outlet when hydrostatically testing a new Outlet installation as this may damage the ceramic cartridge.
