METHVEN 01-8222 Installation Manual

Installation

Tip: Install product on bench before
connecting second hose to mixer.

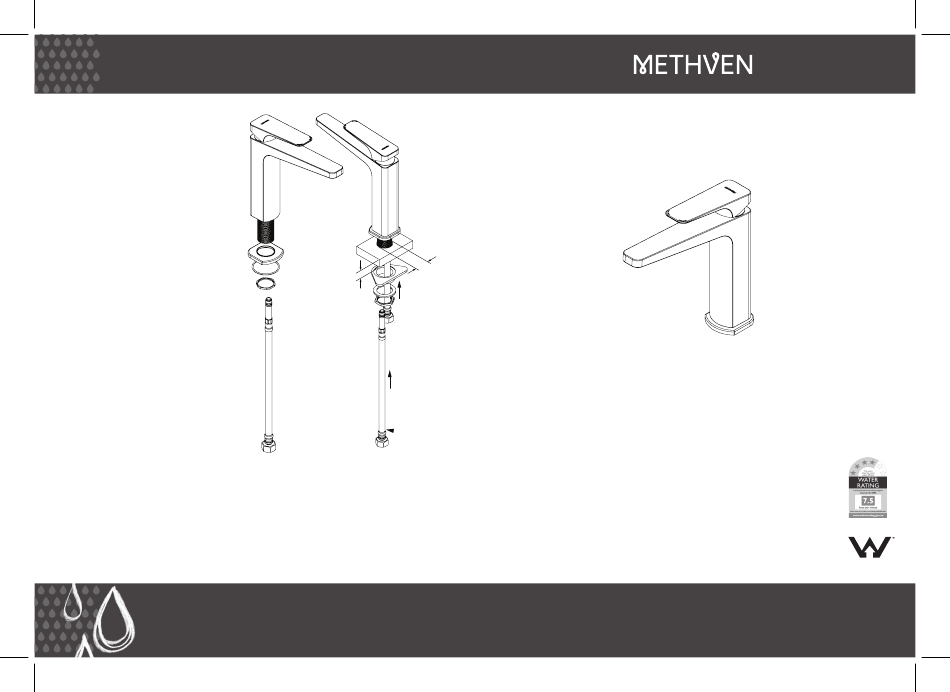

1. Cut a single 35mm diameter hole into the
mounting surface. The mounting surface
can be a maximum of 40mm thick.
2. Insert o-ring into the groove in the
bottom of the base ring and fit the base
ring to the bottom of the mixer.
3. Feed the mixer's threaded fastening
tube through the hole cut in the
mounting surface.
4. Position the mixer where required and
fit the rubber washer and triangular
spacer over the threaded fastening
tube. Tighten in place using the tube
spanner (from under the mounting
surface).
5. Insert the flexible hoses through the
hole in the mounting surface (from the
underside) and screw them into the
base of the mixer.
6. Connect the flexible hoses to the hot
Hot
and cold supplies (hot on the left, cold
on the right).
Note: It is a condition of Methven's
warranty that the inline filter washers
supplied are fitted during this
connection.
AUG 2016
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Ø32mm min
Ø42mm max
Max 40mm (without
plastic support flange)
Cold
MA018222

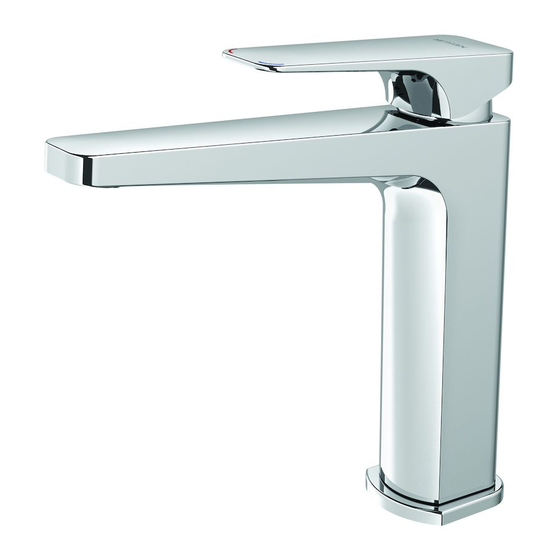

Waipori Swivel Sink Mixer
01-8222
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
