Position studs
at right angle
to outlet
"In situ" testing
The maximum working pressure of the ceramic cartridge is 1000kPa. Do not
hydrostatic test the installation with this mixer installed. Damage to the ceramic
cartridge may occur, voiding our warranty.
JUNE 2011
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Outlet
Stream shaper
O-ring (remove if fitting
base ring)
Mounting gasket
Mounting plate
Mounting stud
Mounting nut
Flexible inlet hose:
cold
hot
MA017003

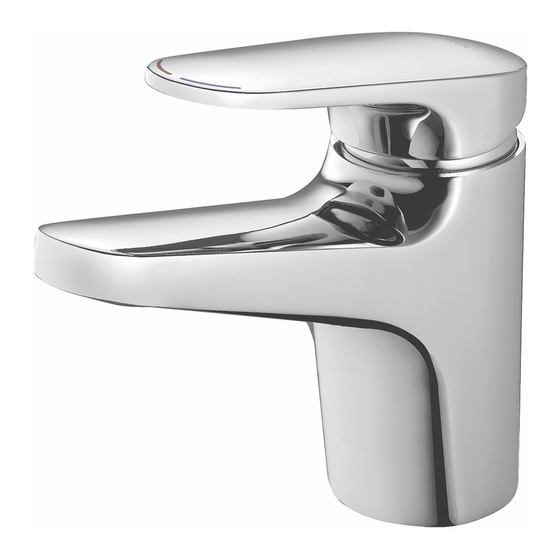

Kaha Swivel Basin Mixer
Illustration may not reflect actual product shape.
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product in non-domestic applications voids warranty.
All pipe work must be thoroughly flushed prior to the installation of the mixer.
NEFA inline filters must be installed on both hot and cold supplies.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by our warranty.
www.methven.com
01-7003
SPEC 001
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for METHVEN Kaha 01-7003
Summary of Contents for METHVEN Kaha 01-7003
- Page 1 NEFA inline filters must be installed on both hot and cold supplies. Do not remove the ceramic cartridge from the mixer when installing. Damage caused by hydrostatic testing is not covered by our warranty. JUNE 2011 MA017003 Methven Australia Pty Ltd ABN 15 104 813 390 www.methven.com Melbourne, Australia www.methven.com...
- Page 2 DO NOT CRUSH HOSE OR SWAGED ENDS THE METHVEN GUARANTEE The warranty statement shall apply to all tapware & showers supplied by Methven We recommend that this product is installed by a licensed plumber. For more information visit www.methven.com THIS WARRANTY ISSUED BY: Methven Australia Pty Ltd, Melbourne Australia...
