Wall Mount - Axis T92E Series Installation Manual

2
Sunshield adjustment screw (2x)
3 Holder
4
Holder screws (2x) and washer flanges (2x)
5
Stabilizing screw
6
Camera screw and washer
7
Alarm output
8
Network cable
9
Cable hole
10 Safety wire tab
11 Cable holes (2x)
12 Bottom cover
13 Network connector (PoE IN)
14 Status LED
15 Cold start switch
16 Bracket adapter

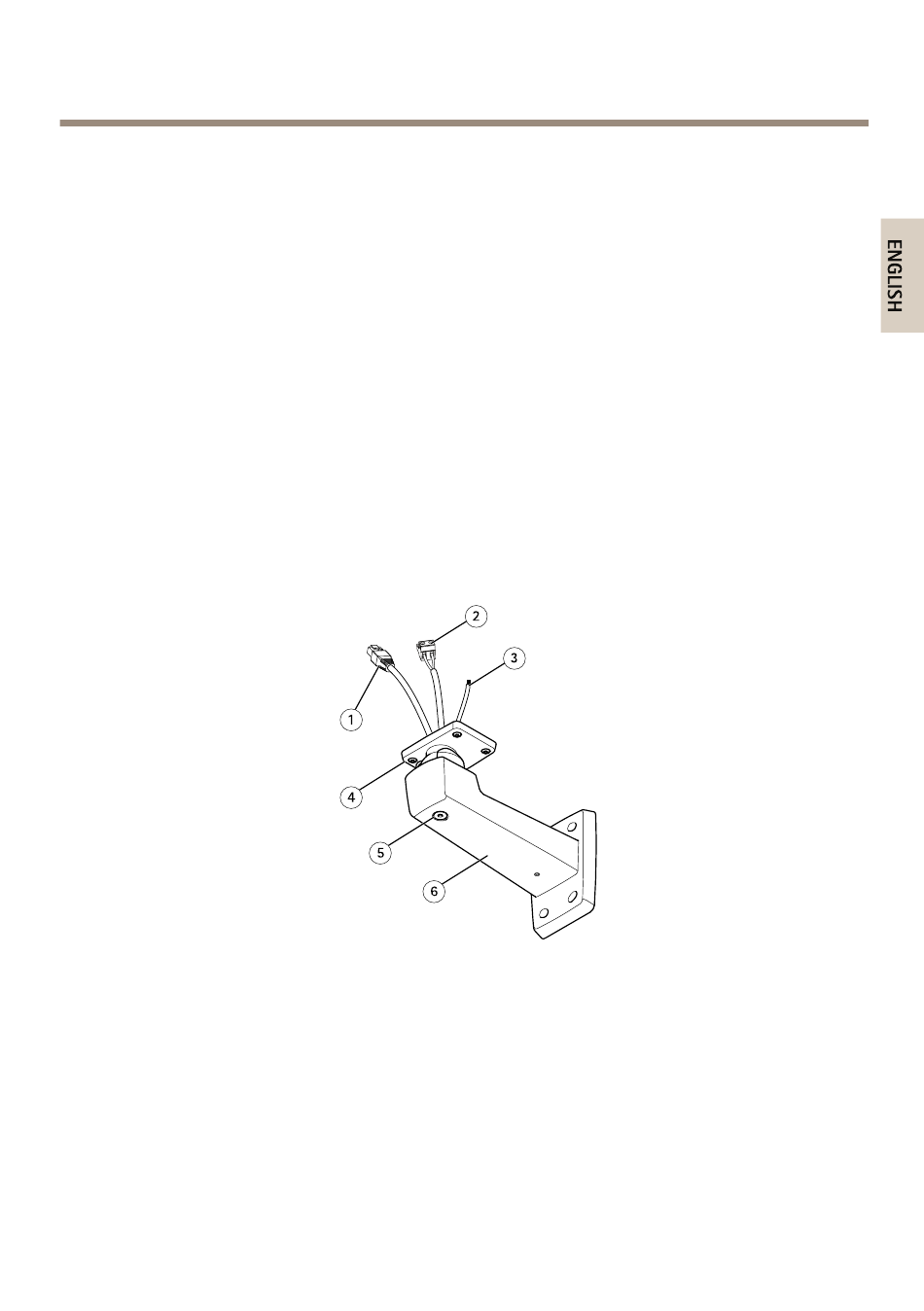

Wall Mount

1
Network cable (route through wall bracket)
2
Power cable (route through wall bracket) (for products equipped with power
connector)
3
Grounding cable (route through wall bracket) (for camera housings equipped
with grounding screw)
4
Screw T20 (4x)
5
Bracket adjustment screw T30
6
Wall mount
AXIS T92E Housing Series
9
