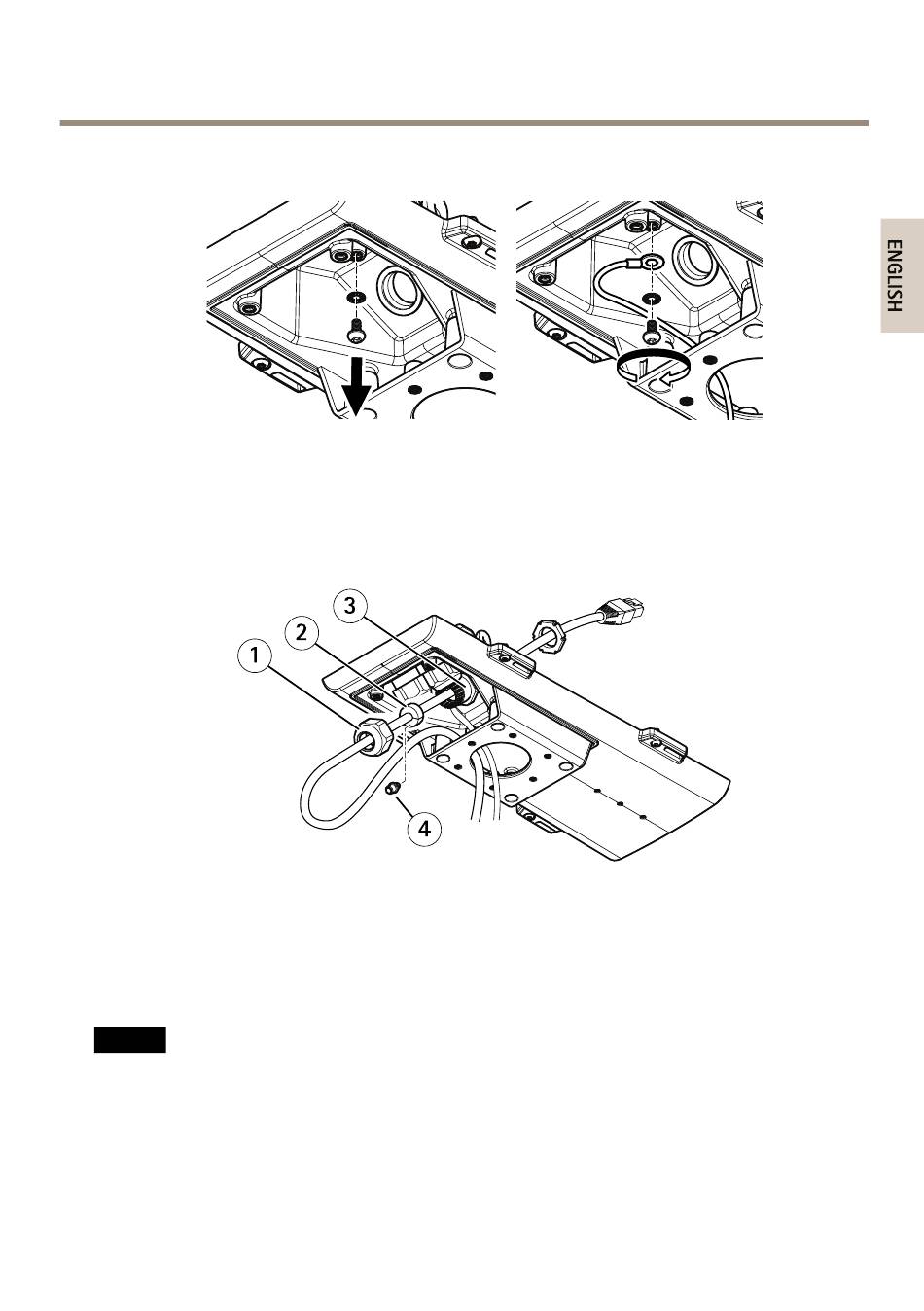

5. Fasten the shoe ring mounted grounding wire and washer with the grounding screw.
1. Route the network cable through the cap.
2. Slide the network cable through the slit on the gasket to attach the gasket to the
network cable.
3. Route the network cable through the cable gland.
1
Cap
2
Gasket
3
Cable gland
4
Plug (discard)
4. Press the gasket into the cable gland and screw the cap on firmly.
NO TICE NO NO TICE TICE
If a cable other than the provided cable is used, you need to prepare a shielded network
cable with a gasket. Gently force the cable through the gasket provided and attach a
network connector. It may be necessary to pierce a hole in the gasket with the supplied
screwdriver.
