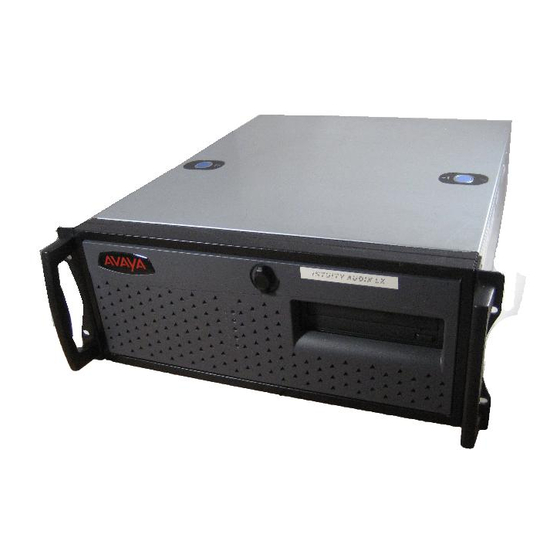

Installation Printable Guide for the INTUITY AUDIX LX
Home
>
Getting Started
>
Installation
Installation Printable Guide for the INTUITY AUDIX LX
This printable guide contains copies of the following topics:
Topic
Avaya_INTUITY_AUDIX_LX\installprint.pdf
> Installation Printable Guide for the INTUITY AUDIX LX
Page 1 of 42
Page Number
3
9
11
12
13
17
19
22
24
41
3/20/2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTUITY AUDIX LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avaya INTUITY AUDIX LX

Summary of Contents for Avaya INTUITY AUDIX LX

  • Page 1: Table Of Contents

    Page 1 of 42 Home > Getting Started > Installation > Installation Printable Guide for the INTUITY AUDIX LX Installation Printable Guide for the INTUITY AUDIX LX This printable guide contains copies of the following topics: Topic Page Number Installation Prerequisites...
  • Page 2 Installation Printable Guide for the INTUITY AUDIX LX Page 2 of 42 file://C:\Avaya_INTUITY_AUDIX_LX\installprint.htm 3/20/2002...

  • Page 3: Installation Prerequisites

    Installation Printable Guide for the INTUITY AUDIX LX Page 3 of 42 Installation Prerequisites This topic covers the following items: Intended audience Safety and security alert labels General precautions FCC statement DOC interference information Site preparation Environmental considerations ¡ Installation area considerations ¡...
  • Page 4 Installation Printable Guide for the INTUITY AUDIX LX Page 4 of 42 General precautions NOTE: The following applies for INTUITY LX1000 installations in Sweden, Finland and Norway only. The INTUITY LX1000 relies on a ground connection through the main plug with an earth contact.
  • Page 5 Installation Printable Guide for the INTUITY AUDIX LX Page 5 of 42 Site preparation This section describes physical requirements for the installation site, which include: Environmental considerations Installation area considerations Weight and space considerations Power requirements Environmental considerations Place the INTUITY LX1000 in an area where the environmental conditions shown in the following table are maintained.
  • Page 6 Installation Printable Guide for the INTUITY AUDIX LX Page 6 of 42 NOTE: The following applies for INTUITY LX1000 installations in Sweden, Finland, and Norway only. The INTUITY LX1000 relies on a ground connection through the main plug with an earth contact.
  • Page 7 Installation Printable Guide for the INTUITY AUDIX LX Page 7 of 42 Power Requirements The following table lists the power requirements for the system. Attribute Requirement Volts AC (VAC) 100–220 Hertz (Hz) Phase Single Amps 5A (maximum) (US) AMPS —...
  • Page 8 Installation Printable Guide for the INTUITY AUDIX LX Page 8 of 42 Saving Packing Materials Save the shipping carton and all packing materials to use in case you have to return the system to the manufacturer. If you ordered multiple systems, saving one carton and one set of packing materials should be sufficient.

  • Page 9: Connecting Peripheral Devices (Monitor, Keyboard, Modem)

    Keyboard and mouse Modem Connecting the Monitor A monitor is available for purchase for use with the INTUITY AUDIX LX system or the customer can supply a monitor. Two cables connect the monitor to the system: Video cable connector: The video cable connector has a video input connector at one end.
  • Page 10 A serial modem is provided with INTUITY AUDIX LX for remote maintenance. Complete the following procedure to connect the serial modem to the INTUITY AUDIX LX system. After you connect the modem, you must install the modem in the INTUITY AUDIX LX web-based interface.

  • Page 11: Connecting The Analog-Line Interface Cards (Voice Cards)

    This topic provides the basic information you need to connect the analog-line interface cards installed in the INTUITY AUDIX LX system to the switch. The INTUITY AUDIX LX system supports a maximum of three analog-line interface cards. Each card has four...

  • Page 12: Restoring Power To An Intuity System

    Installation Printable Guide for the INTUITY AUDIX LX Page 12 of 42 Restoring Power to an INTUITY System To restore power: 1. If necessary, attach the power cord and the monitor cord to the system. 2. Plug the power cord into the PC's power outlet (see Back View of Platform).

  • Page 13: Checking The Voice System, Modem, And Network Addressing

    3. The first time you log in at the console, the system displays a Netscape license agreement. Click Accept to continue. 4. If you do not see the Avaya login page that asks for Login and Password, then make sure you have properly typed in the machine name.
  • Page 14 Installation Printable Guide for the INTUITY AUDIX LX Page 14 of 42 As soon as you log in, the system displays the Administration Main Menu in your browser. Check the Voice System Status The voice system automatically starts, but make sure that it is running. You can view the System Status, which includes information on the state of the voice system.
  • Page 15 Installation Printable Guide for the INTUITY AUDIX LX Page 15 of 42 Activate the Modem 1. Log in to the system with the craft login and password. 2. From the web-based Administration Main Menu, select: Basic System Administration Modem and Terminal Administration Install Modem/Terminal Software The Install Modem/Terminal Software page displays.
  • Page 16 Installation Printable Guide for the INTUITY AUDIX LX Page 16 of 42 DNS, the field is a color-shaded diamond. The installation is complete. Continue with Add Switch Integration Software and Language Packages. file://C:\Avaya_INTUITY_AUDIX_LX\installprint.htm 3/20/2002...

  • Page 17: Install Additional Language Software (If Needed)

    Adding language software causes the voice system to stop. Plan to do the installation during low usage hours. Use the INTUITY AUDIX LX Languages CD to install additional announcement sets: 1. Log on as craft (for a new installation) or sa (if restoring a system). The sa default password is sapasswd.
  • Page 18 Installation Printable Guide for the INTUITY AUDIX LX Page 18 of 42 15. If the system is to be shipped, stop the voice system and power off the system. If the system is to be administered now, go to Install Switch Integration Software.

  • Page 19: Install Switch Integration Software

    Utilities Software Management Software Installation 3. Switch Integration software is included on the main INTUITY AUDIX LX software CD. Obtain the CD, then follow the on-screen instructions to insert the CD. 4. Click CD (or another installation media if applicable).
  • Page 20 Installation Printable Guide for the INTUITY AUDIX LX Page 20 of 42 12. Press Enter, then log in. 13. If the system is to be moved or shipped, stop the voice system and power off the system. If system data is to be restored, go to Performing a Restore.
  • Page 21 Installation Printable Guide for the INTUITY AUDIX LX Page 21 of 42 Select the Switch Integration When the appropriate switch integration software package is installed, select the switch integration type: 1. From the web-based Administration Main Menu, select: Basic System Administration...

  • Page 22: Administering Switch Integration

    Installation Printable Guide for the INTUITY AUDIX LX Page 22 of 42 Administering Switch Integration You need configuration notes or a switch integration worksheet to perform the steps in this section. This section includes steps for the following processes: Administering OverLAN (also known as C-LAN) Switch Integration...
  • Page 23 Installation Printable Guide for the INTUITY AUDIX LX Page 23 of 42 3. If you have more than one switch to add, click Add and complete the additional fields of information. 4. Then click Update. The system displays a confirmation message that the added or updated information is accepted.

  • Page 24: Initial System Administration

    Installation Printable Guide for the INTUITY AUDIX LX Page 24 of 42 Initial System Administration This section assumes that you have successfully completed the software installation or upgrade process. Accessing the system Once the software is installed, you can access the system administration in either of...
  • Page 25 Installation Printable Guide for the INTUITY AUDIX LX Page 25 of 42 Administering Basic Channel and Number Settings Many of the settings in this system come from switch integration configuration notes or from the switch integration worksheet. Start at the web-based administration login page and log in as craft.
  • Page 26 Installation Printable Guide for the INTUITY AUDIX LX Page 26 of 42 2. Make the following field settings, as specified by the customer and as shown on the example screen. Field Setting Starting PBX enter the phone number for the first channel...
  • Page 27 Installation Printable Guide for the INTUITY AUDIX LX Page 27 of 42 8. Make the following field settings, as shown on the example screen. Field Setting Called Numbers any to - the field after the "to" is blank Calling Numbers any to - the field after the "to"...
  • Page 28 Installation Printable Guide for the INTUITY AUDIX LX Page 28 of 42 11. Make the following field settings, as shown on the example screen. Field Setting New State inserv Equipment card Equipment Number Change Immediately? 12. Click Save. The system displays a confirmation message.
  • Page 29 Break out of the webadmin interface and return to the Linux Ctrl+Alt+Backspace prompt Basic Administration Set the Machine Profile for the local INTUITY AUDIX LX machine: 1. At the AUDIX command prompt, type change machine and press Enter. file://C:\Avaya_INTUITY_AUDIX_LX\installprint.htm 3/20/2002...
  • Page 30 Installation Printable Guide for the INTUITY AUDIX LX Page 30 of 42 2. Make the following field settings, as shown on the example screen, and then press F3 (Enter). Field Setting Machine change from "local" to the hostname of your machine...
  • Page 31 Installation Printable Guide for the INTUITY AUDIX LX Page 31 of 42 6. Make the following field settings, as shown on the example screen, and then press F3 (Enter). Field Setting Outcalling Active? y (or as specified by the customer) 7.
  • Page 32 Installation Printable Guide for the INTUITY AUDIX LX Page 32 of 42 8. Make the following field settings, as shown on the example screen, and then press F3 (Enter). Field Setting Fax Deliveries To All The denied Specified Dial Strings Are Allowed/Denied This is customer preference.
  • Page 33 Installation Printable Guide for the INTUITY AUDIX LX Page 33 of 42 9. If you are using OverLAN switch integration, change the System Parameters Features form. If you are not using OverLAN, skip 3 steps to the next command. 10. At the AUDIX command prompt, enter change system-parameters features.
  • Page 34 Installation Printable Guide for the INTUITY AUDIX LX Page 34 of 42 14. Make the following field settings, as shown on the example screen, and then press F3 (Enter). Field Setting Outcalling? y (or as specified by the customer) 15. Repeat the steps for COS 1.
  • Page 35 Installation Printable Guide for the INTUITY AUDIX LX Page 35 of 42 18. Make the following field settings, as shown on the example screen, and then press F3 (Enter). Field Setting Password class00 19. Repeat for additional test subscribers. Create at least one or two subscribers for initial acceptance testing.
  • Page 36 Installation Printable Guide for the INTUITY AUDIX LX Page 36 of 42 To set information for the remote machine (the one you want to network to): 1. Enter change machine machine -name at the command prompt, where machine-name is the name of the remote system.
  • Page 37 7. Press F3 (Enter). 8. Perform required set-up steps on the remote system. 9. For additional information about networking, check the documentation for the other system and the Networking procedures on the INTUITY AUDIX LX documentation CD. Administer Internet Messaging Plan to make these changes to activate Internet Messaging before load is running or when usage is low.
  • Page 38 Installation Printable Guide for the INTUITY AUDIX LX Page 38 of 42 Extension: 89998 is suggested, but any valid extension is acceptable. 5. Note the PostMaster extension. 6. Press F3 (Enter) to save the subscriber information. 7. From the web-based Administration Main Menu, select:...
  • Page 39 Installation Printable Guide for the INTUITY AUDIX LX Page 39 of 42 10. On the Mail Options page, locate the Postmaster Extension box. Type the extension you just added for the Postmaster. 11. Click Submit. 12. Click Next to display the Mail Options page.
  • Page 40 5. Add INTUITY Server as a new Directory. 6. Change system to your system name. 7. Make the following field settings: Description: system LDAP Server: system.dr.avaya.com Search Root: dc=messaging All other fields default values Additional information is included on the INTUITY AUDIX LX Documentation CD. file://C:\Avaya_INTUITY_AUDIX_LX\installprint.htm 3/20/2002...

  • Page 41: System Acceptance Test

    Installation Printable Guide for the INTUITY AUDIX LX Page 41 of 42 System Acceptance Test Perform the following feature tests before leaving the customer site: Feature to be Use these admin screens or For more Completed /comments tested: commands: information,...
  • Page 42 Installation Printable Guide for the INTUITY AUDIX LX Page 42 of 42 Search this CD Site Index Contact Us © 2002 Avaya Inc. All rights reserved. file://C:\Avaya_INTUITY_AUDIX_LX\installprint.htm 3/20/2002...
