Advantech MIC-3389 Manual

Advantech MIC-3389 Manual

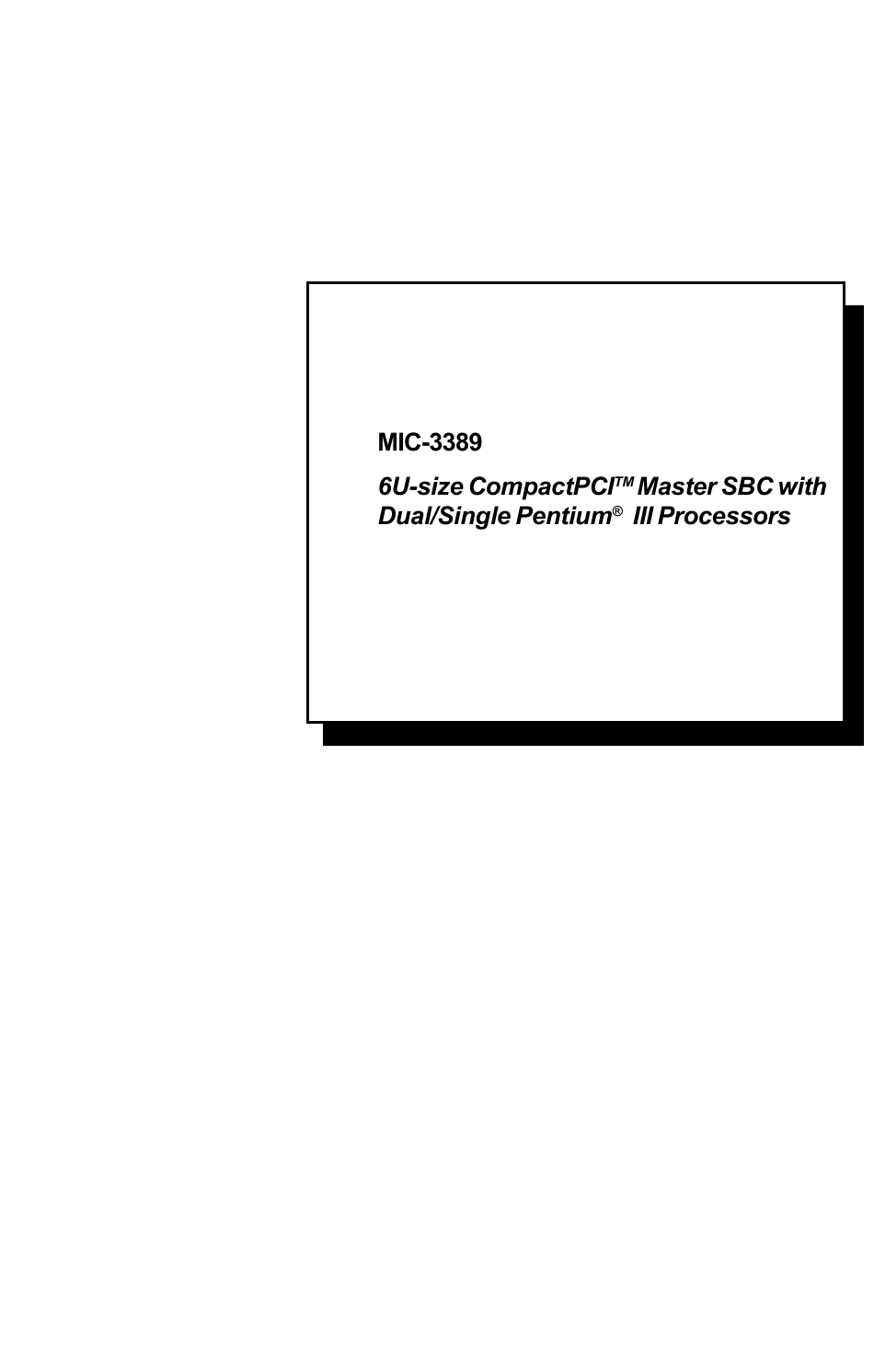

6u-size compactpci master sbc with dual/single pentium iii processors
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIC-3389 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech MIC-3389

Summary of Contents for Advantech MIC-3389

  • Page 2 All other product names or trademarks are properties of their respective owners. The MIC-3389, developed by Advantech CO., LTD., has passed the CE test for environment specification when shielded cables are used for external wiring. We recommend the use of shielded cables.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 • This user's manual If any of these items are missing or damaged, contact your distributor or sales representative immediately. If you have any technical questions about the MIC-3389 or any other Advantech products, please visit our support website at: • http://www.advantech.com.tw/support...
  • Page 5 Contents 1.1 Introduction ..................2 1.2 Features ....................3 1.3 Specifications ..................3 1.3.1 Standard SBC Functions ................3 1.3.2 10/100Base-TX Ethernet Interface ............4 1.3.3 PCI VGA Interface .................. 4 1.3.4 Mechanical and Environmental ..............5 1.3.5 Certificate ....................5 1.3.6 Standards and Software ................
  • Page 6 3.3 Installation for Windows NT 4.0 ............27 4.1 Introduction ..................38 4.2 Installation of SVGA Driver ..............38 4.3 Installation for Windows NT 4.0 ............39 4.4 Installation for Windows 2000 ............44 5.1 Introduction ..................50 5.2 Entering Setup ..................50 5.3 Standard CMOS Features ..............
  • Page 7 Figure 1-1: MIC-3389 functional block diagram .......... 7 Figure 1-2: MIC-3389 jumper and connector locations ......11 Figure 1-3: MIC-3389 front panel connector and indicator locations ..12 Figure 1-4: SDRAM installation ..............14 Figure 1-5: Dual CPU installation ............... 15 Figure 1-6: Single CPU installation ............
  • Page 8 Table B-2: MIC-3389 keyboard connector ............66 Table B-3: MIC-3389 CRT display connector ..........66 Table B-4: MIC-3389 COM1 and COM2 serial ports ........66 Table B-5: MIC-3389 Ethernet RJ-45 connectors ..........68 Table B-6: System I/O ports ................69 Table B-7: DMA channel assignments ............
  • Page 10 ® The MIC-3389 can be configured with dual or single Pentium processors. Dual processor configuration can support symmetric multiprocessing operations under supporting operation system software. With the special-designed heat sink, the MIC-3389 can ® support the Pentium III processors with up to 1 GHz CPU speed.
  • Page 11 ® • One or dual Socket 370 Pentium III processors (up to 1GHz) • ServerWorks ServerSet III LE chipset • Up to 2 GB Registered SDRAM with ECC • 64-bit CompactPCI • On-board VGA with 8 MB SGRAM • Dual 10/100Base-TX fast Ethernet with RJ-45 connectors •...
  • Page 12 • USB interface: Two USB connectors with fuse protection. Com- plies with USB specification 1.0 • Keyboard/Mouse connectors: One 6-pin mini-DIN connector on the front panel. • Watchdog timer: Can generate a system reset. Software enabled/ disabled. Time interval is from 1 to 63 seconds, jumperless with run-time setup.
  • Page 13 • Operating temperature: 0 ~ 45°C (32 ~ 113°F), depending on CPU installed • Storage Temperature: -20 ~ 80°C (-4 ~ 176°F) • Humidity (Operating and storage): 5 ~ 95% (non-condensing) • Power Consumption: +5V @ 10A, +3.3V @ 1.8 mA, +12V @ 240 •...
  • Page 14 PS/2 SCSI CompactFlash Slot Models name keyboard ports ports ports conn. conn. conn. conn. socket Width & mouse RIO-3302 RIO-3302S...
  • Page 15 PC-133 Registered SDRAM with ECC up to 2GB...
  • Page 16 The MIC-3389 provides jumpers for configuring your board for specific applications other than the default settings. Table 1-1 lists the jumper functions. Figure 1-2 illustrates the jumper locations. The jumper JP2 is used to select the PCI bus reference voltage before the PCI-to-PCI bridge (PVIO).
  • Page 17 From the CMOS, users can read the MIC-3389’s dual CPU status (e.g. the CPU voltages, temperatures and fan speeds), the battery voltage, and the on-board +3.3 V, +5 V and +12 V voltages. The MIC-3389 default setting is to enable the on-board hardware monitor function.
  • Page 18 On-board connectors link to external devices such as hard disk drives, keyboards, or floppy disk devices, etc. Table 1-5 lists the function of each connector, and Figures 1-2 and 1-3 illustrate each connector location. Chapter 2 gives instructions for connecting external devices to your MIC-3389.
  • Page 21 Wear a grounding wrist strap for continuous protection. The MIC-3389 provides two 168-pin DIMM sockets for the 3.3V Registered PC-133 SDRAM with ECC. The approved SDRAM modules are showed in Appendix C. Users can install a combination of the DIMMs of any size, giving a total memory capacity up to 2 GB.
  • Page 22 of the DIMM sockets snap into place 5. Check to ensure that the DIMM is correctly seated and all connec- tor contacts touch. The DIMM should not move around in its socket. 6. Repeat this operation for the rest of module.
  • Page 23 CPUs have to be the same type (PC133 -compliant) and the same speed (up to 1 GHz). In order to meet critical environmental condi- tions and the physical space of the MIC-3389 at the same time, Advantech designed a heat sink together with two slim fans to fulfill both needs.
  • Page 26 The MIC-3389 provides two IDE (Integrated Device Electronics) channels via the J3 connector to the rear transition board. Four IDE drives can be connected to the MIC-3389 through the rear transition board. Users can connect two IDE drives to each IDE channel. If two drives are installed on one channel, remember to set one as the master and the other one as the slave.
  • Page 27 The MIC-3389 provides a 6-pin mini-DIN connector (CN5) on the front panel for connection of PS/2 keyboard and PS/2 mouse. The MIC-3389 comes with a cable to convert from the single 6-pin mini- DIN connector to a double PS/2 keyboard connector and PS/2 mouse connector.
  • Page 28 The MIC-3389 is equipped with dual high performance 32-bit PCI- bus Fast Ethernet interfaces which are fully compliant with IEEE 802.3u 10/100Base-TX specifications. It is supported by all major network operating systems and is 100% Novell NE-2000 compatible. Two on-board RJ-45 jacks provide convenient connection to the network.
  • Page 29 5. Pull the upper handle down and lift the lower handle up to push the card into place. 6. Secure the card by pushing in the red handle to lock it into place. 1. Unscrew the screws on the front panel. 2.
  • Page 32 Also includes AFT. This function requires a Cisco switch with FEC capability. The MIC-3389 comes with drivers for a wide variety of networks and operating systems. The MIC-3389 is an excellent choice for opera- tion in standalone and harsh industrial environments.
  • Page 33 • \MIC3389\D_82559\INFO\MS\MS.TXT: Installation instructions for Microsoft Windows • \MIC3389\D_82559\E100BNT.SYS (NDIS 4.0), \MIC3389\LAN\ OEMSETUP.INF: Drivers for Windows NT 4.0 • \MIC3389\D_82559\E100B.SYS (NDIS 3), \MIC3389\LAN\ OEMSETUP.INF: Drivers for Windows NT 3.51 • \MIC3389\D_82559\NET82557.INF: Drivers for Windows 98 • \MIC3389\D_82559\E100BNT.SYS (NDIS 4.0), \MIC3389 \D_82559\ NET82557.INF: Drivers for Windows 95 •...
  • Page 34 • \MIC3389\D_82559\DOS\E100BODI.COM: Drivers for IBM LAN support for AS/400 and NetWare (for ODINSUP) • \MIC3389\D_82559\OS2\E100B.OS2: Drivers for LAN server (OS/2 driver) • \MIC3389\D_82559\DOS\E100B.DOS: Drivers for LAN server (DOS driver) • \MIC3389\D_82559\DOS\E100B.DOS: Drivers for BANYAN NDIS workstation • \MIC3389\D_82559\DOS\E100B.DOS: Drivers for LANTASTIC •...
  • Page 35 Before installing; create a new folder [ ], \MIC3389\D_82559\, in your disk drive, and download all files from the directory, \MIC3389\D_82559\, on the utility CD-ROM to it. 1. In the Windows NT screen, select "Start", click "Settings". Click the "Control Panel" item and choose "Network". 2.
  • Page 36 3. Click "Wired to the Network", or users may choose "Remote access to the network" if applicable. 4. Click "Select from list".
  • Page 37 5. Click "Have Disk". 6. Type in "C:\MIC3389\D_82559" in the blank column and click "OK". (C: your hard disk drive)
  • Page 38 7. Click "OK". 8. Click "Next".
  • Page 39 9. Click "Next". 10. Click "Next".
  • Page 40 11. Click "Next". 12. Insert Windows NT source disc in drive E. Type "E:\I386" in the blank column or any other directory that contains the Windows NT files. Click "Continue".
  • Page 41 13. Wait for the installation to finish. 14. Complete the settings with users' network settings. Click "OK".
  • Page 42 15. Click "Next". 16. Click "Next".
  • Page 43 17. Click "Yes" to restart the computer and enable the changes to take effect.
  • Page 46 The MIC-3389 uses ATI Rage™ XL PCI SVGA controller. This chapter describes how to install the VGA drivers for the MIC-3389. The MIC-3389 is supplied with a utility CD-ROM disc that holds the necessary files for setting up the VGA display under the directory \MIC-3389\VGA.
  • Page 47 1. Insert the utility CD-ROM disc in the CD-ROM drive and wait for the auto-run screen to pop up. Click "Install Drivers". 2. Click "6U CPU Boards". Chapter 4 PCI VGA Setup...
  • Page 48 3. Click "MIC-3389". 4. Under VGA Drivers menu, click "WIN NT". MIC-3389 User's Manual...
  • Page 49 5. Wait for the system preparation before installation. 6. Click "Next". Chapter 4 PCI VGA Setup...
  • Page 50 7. Click "Yes". 8. Wait for the system copies files. MIC-3389 User's Manual...
  • Page 51 9. Wait for installation to finish. 10. Click "Finish" to restart the computer and enable the change to take effect. Chapter 4 PCI VGA Setup...
  • Page 52 1. Insert the utility CD-ROM disc in the CD-ROM drive and wait for the auto-run screen to pop up. Click "Install Drivers". 2. Click "6U CPU Boards". MIC-3389 User's Manual...
  • Page 53 3. Click "MIC-3389". 4. Under VGA Drivers menu, click "WIN 2000". Chapter 4 PCI VGA Setup...
  • Page 54 5. Wait for the system preparation before installation. 6. Click "Next". MIC-3389 User's Manual...
  • Page 55 7. Click "Yes". 8. Click "Yes". Chapter 4 PCI VGA Setup...
  • Page 56 9. Wait for the system copies files. 10. Wait for installation to finish. 11. Click "Finish" to restart the computer and enable the change to take effect. MIC-3389 User's Manual...
  • Page 58 CPU. If there is no number assigned to the patch code, please contact Advantech's application engineer to obtain an up-to-date patch code file. This will ensure that your CPU's system status is valid. After ensuring that you have a number assigned to the patch code, press <DEL>...

  • Page 59: Features

    Choose the "Standard CMOS Features" option from the Initial Setup Menu, and the screen below will be displayed. This standard setup menu allows users to configure system components such as date, time, hard disk drive, floppy drive, display, and memory. Chapter 5 Award BIOS Setup 5 1...

  • Page 60: Advanced Bios Features

    The "Advanced BIOS Features" screen will appear after choosing the Advanced BIOS Feautures item from the initial setupmenu. This screen allows users to configure the MIC-3389 according to their particular requirements. Below are some major items that are provided in the Advanced...
  • Page 61 This option controls the ECC capability in the CPU level 2 cache. This option speeds up the Power-On Self Test (POST) conducted as soon as the computer is turned on. When enabled, the BIOS shortens or skips some of the items during the test. When disabled, normal POST procedures resume.
  • Page 62 This setting is for use under the OS/2 operating system. Choose the "Advanced Chipset Features" option from the initial setup menu, and the screen below will be displayed. This sample screen contains the manufacturer's default values for the MIC- 3389. MIC-3389 User's Manual...
  • Page 63 Chapter 5 Award BIOS Setup 5 5...

  • Page 64: Pc Health Status

    The MIC-3389 supports the on-board hardware monitor function. From the PC Health Status screen, wers can read the values ablut the CPU temperatures, CPU FAN speeds, CPU voltages (Vcore 1 & Vcore 2), the battery voltage, and the actual voltages for the on- board +3.3 V, +5 V and +12 V.

  • Page 65: Load Optimized Defaults

    "Load Optimized Defaults" loads the most appropriate values of the system parameters for maximum performance. Chapter 5 Award BIOS Setup 5 7...

  • Page 66: Set Password

    The password can be at most 8 characters long. Remember to enable this feature. You must first select the "Security Option" in the "Advanced BIOS Features" to be either "Setup" or "System." Pressing [Enter] again without typing any characters can disable the password setting function. MIC-3389 User's Manual...
  • Page 67 If you select this and press the [Enter] key, the values entered in the setup utilities will be recorded in the CMOS memory of the chipset. The microprocessor will check this every time you turn your system on and compare this to what it finds as it checks the system.
  • Page 68 Selecting this option and pressing the [Enter] key lets you exit the Setup program without recording any new values or changing old ones. MIC-3389 User's Manual...
  • Page 70 To program the watchdog timer, you must write a program which writes a value to I/O port address 443 (hex). This output value represents time interval. The value range is from 01 (hex) to 3F (hex), and the related time interval is 1 sec. to 63 sec. Data Time Interval 1 sec.
  • Page 71 After data entry, your program must refresh the watchdog timer by rewriting the I/O port 443 (hex) while simultaneously setting it. When you want to disable the watchdog timer, your program should read I/O port 43 (hex). The following example shows how you might program the watchdog timer in BASIC:...
  • Page 78 * Ethernet function is auto-sensing...
  • Page 79 #: low active...
  • Page 80 #: low active...
  • Page 81 #: Low active...
  • Page 84 Vendor Model Name Capacity SAMSUNG 128 MB SMART SM572164574E63R K4S640432D-TC75 (PC133 REGISTERED) SAMSUNG 256 MB SMART SM572324574E03R K4S280432B-TC75 (PC133 REGISTERED) SAMSUNG 512 MB SMART SM572644578E63R K4S560432A-TC75 (PC133 REGISTERED) 1 GB SMART SM572284578E83R (PC133 REGISTERED) SAMSUNG 128 MB AR16V72C4S4GAS KM44S16030CT-G7 (PC133 REGISTERED) SAMSUNG 256 MB AR32V72C4S4GAS...
