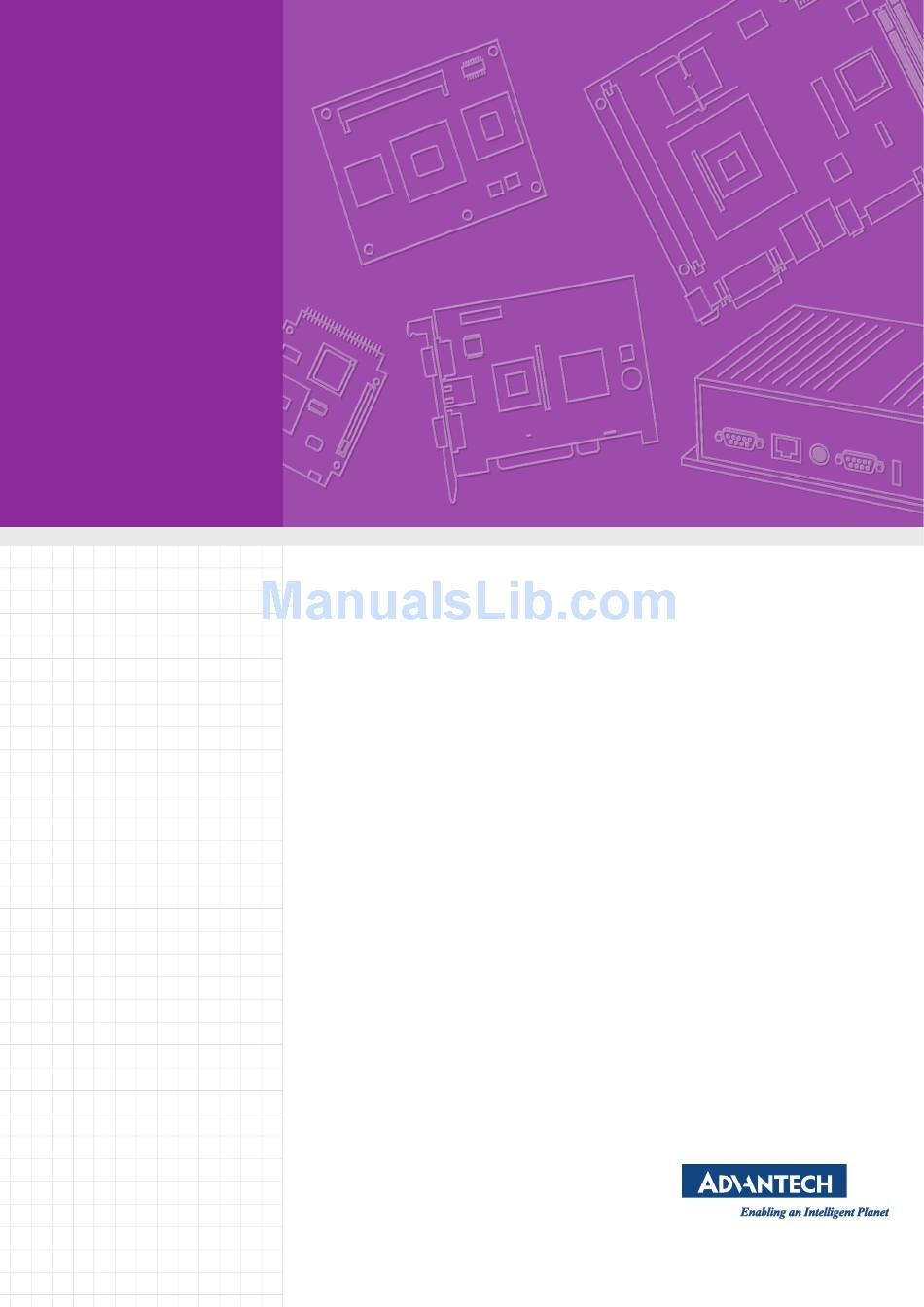

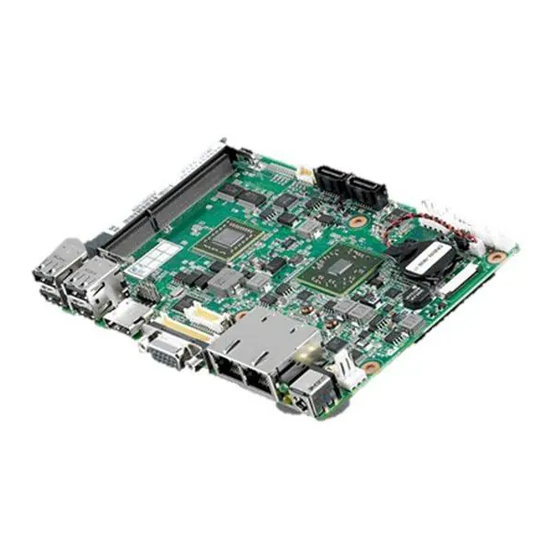

- Page 1 User Manual MIO-5270...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. -
Page 4: Technical Support And Assistance
Technical Support and Assistance Visit the Advantech web site at www.advantech.com where you can find the lat- est information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –... -
Page 5: Packing List
Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. 1 x MIO-5270 SBC 1 x SATA Cable 30cm (P/N 1700006291) ... -
Page 6: Optional Accessories
Displayport to Ext. Displayport *MIOe-230 compatibility is optional by request. Optional Accessories Part number Description 1960054266T001 Heat spreader AMD-Ontario 137x84.2x16.7-SC MIO-5270 1703100260 Internal USB 5/6 cable 1935032000 Screw of Heatsink / Cooler R/S 5.5 2.0 +M M3*20L ST Ni 1910002088... - Page 7 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 8 MIO-5270 User Manual viii...
-
Page 9: Table Of Contents
Chipset Configuration................25 3.4.1 North Bridge Configuration ............26 3.4.2 Display Configuration Select............27 3.4.3 South Bridge ................28 Boot Configuration .................. 29 Security Configuration................30 Save & Exit....................31 Chapter MIOe Installation ........33 Appendix A Pin Assignments .......35 MIO-5270 User Manual... - Page 10 Table B.2: 1st MB memory map ..........58 Interrupt assignments ................59 Table B.3: Interrupt assignments..........59 Appendix C Watchdog Timer Sample Code ..61 EC Watchdog Timer sample code ............62 Appendix D AMD G-Series ........63 MIO-5270 User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information... -
Page 12: Introduction
6 x USB 2.0 ports 2 x SATAII (Max data transfer rate 300 MB/s) 4 x COM (3 x RS-232, 1 x RS-232/422/485) Multi level Watchdog timer (set by Advantech iManager) 2 x GbE MIOe 2.0 connector ... -
Page 13: Chipset
Up to 2 Display Port/TMDS Integrated VGA DAC Displayport 1.1a Internal Graphics Features Integrated Graphics Engine clock speed: 500 MHz or 280 MHz, depen- dent on OPN phics memory controller" Dedicated gra MIO-5270 User Manual... - Page 14 Default: 500mA @ one port (Up to 1A @ 2 ports) Other Features * 2 x SATAII (Max. Data transfer Rate 300MB/s) * HD Audio CODEC (ALC892) * Power Management (S0, S3,S4, S5) BIOS 32-Mb Flash BIOS via SPI MIO-5270 User Manual...
-
Page 15: Mechanical Specifications
Sequence control Supported SMBus Supported GPIO 8-bit GPIO Multi Level WDT (set by Advantech iManager) Watchdog timer Programmable 1-255 sec / min Hardware monitor CPU Temperature / input Current / input Voltage Power saving Deep sleep S5 mode / Smart Fan / Back light control 1. -
Page 16: Electrical Specifications
Standard products (0~60°C) Storage temperature: -40~85°C 1.3.4.4 Storage Relative Temperature Standard products (0~60°C) Relative humidity: 95% @ 60°C Phoenix products (-20~80°C) Relative humidity: 95% @ 60°C Platinum Phoenix products (-40~85°C) Relative humidity: 95% @ 60°C MIO-5270 User Manual... -
Page 17: Chapter 2 Hardware Installation
Chapter Hardware Installation... -
Page 18: Jumpers
This chapter explains the setup procedures of the MIO-5270 A1 hardware, including instructions on setting jumpers and connecting peripherals, switches, indicators and mechanical drawings. Be sure to read all safety precautions before you begin the installation procedure. Jumpers 2.1.1 Jumper List... -
Page 19: Jumper Description
To open a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3. MIO-5270 User Manual... -
Page 20: Connectors
CN18 External USB (1/2) CN19 External USB (3/4) CN20 HDMI CN22 12V Power Input CN23 CN24 Audio CN25 COM1/COM2 CN26 COM3/COM4 CN28 MIOe CN29 PCIE Mini Card Holder CN30 PCIE Mini Card CN31 CFast FAN1 CPU FAN MIO-5270 User Manual... -
Page 21: Mechanical
Mechanical 2.3.1 Jumper and Connector Location CN10 CN12 FAN1 ESBC Jensen. Li CN22 CN18 CN19 CN20 CN17 CN23 Power LED CN13 CN14 Figure 2.1 Jumper and Connector Layout (Component Side) MIO-5270 User Manual... -
Page 22: Figure 2.2 Jumper And Connector Layout (Solder Side)
CN24 CN25 CN26 CN28 CN29 CN31 BIOS Audio GPIO COM 1/2 COM 3/4 MIOe PCIe Mini card CFast Socket Figure 2.2 Jumper and Connector Layout (Solder Side) MIO-5270 User Manual... -
Page 23: Board Dimensions
2.3.2 Board Dimensions Figure 2.3 Board Dimension Layout (Component Side) Figure 2.4 Board Dimension Layout (Solder Side) MIO-5270 User Manual... -
Page 24: Figure 2.5 I/O Connectors Mechanical Drawing
139,50 130,81 111,92 76,09 45,58 26,30 8,30 18,54 39,62 75,69 112,82 Figure 2.5 I/O Connectors Mechanical Drawing MIO-5270 User Manual... -
Page 25: Chapter 3 Bios Settings
Chapter BIOS Settings... -
Page 26: Entering Setup
AMIBIOS has been integrated into many motherboards for over a decade. With the AMIBIOS setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the MIO-5270 BIOS setup screens. -
Page 27: Main Setup
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. MIO-5270 User Manual... -
Page 28: Advanced Bios Features Setup
Advanced BIOS Features Setup Select the Advanced tab from the MIO-5270 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 29: Pci Subsystem Settings Configuration
Enabled or disable VGA palette registers snooping. PERR# Generation Enabled or disable PCI device to generation PERR#. SERR# Generation Enabled or disable PCI device to generation SERR#. PCI Express Settings Change PCI express device detail settings. MIO-5270 User Manual... -
Page 30: Acpi Settings Configuration
3.3.2 ACPI Settings Configuration ACPI Sleep State Select the ACPI state used for system suspend. S3 Video Repost Enable or disable video repost. MIO-5270 User Manual... -
Page 31: Cpu Configuration
C6 Mode This item allows you to auto or disable C6 function. Cpb Mode This item allows you to auto or disable CPB. Node 0 Information View detail of memory information related to node 0. MIO-5270 User Manual... -
Page 32: Ide Configuration
3.3.4 IDE Configuration IDE Configuration Display SATA Port0 / SATA Port1 / SATA Port2 / SATA Port3 information. 3.3.5 USB Configuration MIO-5270 User Manual... -
Page 33: Embedded Controller Configuration
This item allows you to select normal or deep sleep power saving. EC iManager Smart FAN This item allows you to enable or disable EC smart FAN control. Temperature & Voltage show CPU Temperature VBAT / +V5SB / +Vin / Vcore / Current Display current. MIO-5270 User Manual... -
Page 34: Super I/O Configuration
Serial Port1 / Port2 / Port3 / Port4 IRQ This item allows you to select serial port1 ~ port4 of IRQ. Auto Flow Control For Serial Port1 This item allows you to enable or disable auto flow control function. MIO-5270 User Manual... -
Page 35: Chipset Configuration
Chipset Configuration North Bridge Detail for North Bridge items. Display Config Select Detail for display items. South Bridge Detail for South Bridge items. MIO-5270 User Manual... -
Page 36: North Bridge Configuration
3.4.1 North Bridge Configuration GFX Configuration Details of LAN1/LAN2, and PSPP Policy items. Memory Configuration Details of Bank Interleaving, IOMMU Mode, and Memory Clock items. Node 0 Information Details of memory information. MIO-5270 User Manual... -
Page 37: Display Configuration Select
This item allows you to enable or disable LVDS function. HDMI This item allows you to enable or disable HDMI function. * LVDS setting of customized define, please refer to the document on CD-ROM: "Chrontel EEPROM Adjust SOP.PDF" MIO-5270 User Manual... -
Page 38: South Bridge
Options for SB USB configuration. SB GPP Port Configuration Options for SB GPP port configuration. SB HD Azalia Configuration Options for SB HD Azalia. MINI Card/M-SATA This item allows you to select MINI card or M-SATA. MIO-5270 User Manual... -
Page 39: Boot Configuration
This item allows you to select Upon request or Always. Option ROM Messages Sets display mode for option ROM. Interrupt 19 Capture This item allows option ROMs to trap interrupt 19. Boot Option Sets the system boot order. MIO-5270 User Manual... -
Page 40: Security Configuration
Security Configuration Select Security Setup from the MIO-5270 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:... -
Page 41: Save & Exit
This item allows you to save the changes done so far as user defaults. Restore User Defaults This item allows you to restore the user defaults to all the options. Boot Override Boot device select can override your boot priority. MIO-5270 User Manual... - Page 42 MIO-5270 User Manual...
-
Page 43: Chapter 4 Mioe Installation
Chapter MIOe Installation... - Page 44 Four long screws are for the heat- sink, two shorter screws are for the main board. There are six standoff’s on the MIOe module which can also can be installed with the screws and copper studs. MIO-5270 User Manual...
-
Page 45: Appendix A Pin Assignments
Appendix Pin Assignments... - Page 46 Inverter Power Output Part Number 1655000453 Footprint WHL5V-2M-24W1140 Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI Pin Name +12V ENABKL Reset Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin Name RESET# MIO-5270 User Manual...
- Page 47 SATA Power Part Number 1655001154 Footprint WF_4P_98_BOX_R1_D Description WAFER BOX 4P 2.50mm 180D(M) DIP 24W1170-04S10-01 Pin Name +12V SATA 1 Part Number 1654007578 Footprint SATA_7P_WATF-07DBN6SB1U Description Serial ATA 7P 1.27mm 180D(M) SMD WATF-07DBN6SB1U Pin Name MIO-5270 User Manual...
- Page 48 SATA 2 Part Number 1654007578 Footprint SATA_7P_WATF-07DBN6SB1U Description Serial ATA 7P 1.27mm 180D(M) SMD WATF-07DBN6SB1U Pin Name RS422/485 Part Number 1655304032 Footprint WF_5P_49_BOX_85205 Description WAFER 5P 1.25mm 180D(M) SMD 85205-05701 Pin Name 422RX- 422RX+ 422/485TX+ 422/485TX- MIO-5270 User Manual...
- Page 49 GPIO Part Number 1653004099 Footprint HD_5x2P_79_23N685B-10M10 Description BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name GPIO4 GPIO0 GPIO5 GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 MIO-5270 User Manual...
- Page 50 CN10 DDR3 SODIMM Socket Part Number 1651001648 Footprint DDR3_204P_2-2013311-1 Description DDR3 SODIMM H=9.2mm 204P SMD 2-2013311-1 Pin Name MIO-5270 User Manual...
- Page 51 Part Number 1653005260 Footprint HD_5x2P_79_N10 Description PIN HEADER 2x5P 2.0mm 180D(M) SMD 21N22050 Pin Name A_D- B_D- A_D+ B_D+ CN13 SMBus Part Number 1655904020 Footprint FPC4V-125M Description WAFER 4P 1.25mm 180D(M) SMD 85205-04001 Pin Name SMB_DAT SMB_CLK MIO-5270 User Manual...
- Page 52 Footprint SPH20X2 Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V Pin Name +3.3V, +5V or +12V +3.3V, +5V or +12V +3.3V, +5V or +12V +3.3V, +5V or +12V LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2- MIO-5270 User Manual...
- Page 53 LVDS1_D2- LVDS0_D2+ LVDS1_D2+ LVDS0_CLK- LVDS1_CLK- LVDS0_CLK+ LVDS1_CLK+ LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ MIO-5270 User Manual...
- Page 54 CN18 External USB Part Number 1654009513 Footprint USB_8P_UB1112C-8FDE-4F Description Pin Name CN19 External USB Part Number 1654009513 Footprint USB_8P_UB1112C-8FDE-4F Description Pin Name MIO-5270 User Manual...
- Page 55 TMDS Data2+ TMDS Data2 Shield TMDS Data2®C TMDS Data1+ TMDS Data1 Shield TMDS Data1®C TMDS Data0+ TMDS Data0 Shield TMDS Data0®C TMDS Clock+ TMDS Clock Shield TMDS Clock®C Reserved Reserved DDC Ground +5V Power Hot Plug Detect MIO-5270 User Manual...
- Page 56 1655404090 Footprint WF_2x2P_165_BOX_RA_D_740SP Description ATX PWR CONN. 2x2P 4.2mm 180D(M) DIP 24W4310-04S Pin Name +12V +12V CN23 Part Number 1654000055 Footprint DBVGA-VF5MS Description D-SUB Conn. 15P 90D(F) DIP 070242FR015S200ZU Pin Name GREEN BLUE DDAT HSYNC VSYNC DCLK MIO-5270 User Manual...
- Page 57 BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name LOUTR LINR LOUTL LINL MIC1R MIC1L CN25 COM1/COM2 Part Number 1653004793 Footprint HD_10x2P_79_23N685B-20M10 Description Pin Name DCD1# DSR1# RXD1 RTS1# TXD1 CTS1# DTR1# RI1# DCD2# DSR2# RXD2 RTS2# TXD2 CTS2# DTR2# RI2# MIO-5270 User Manual...
- Page 58 CN26 COM3/COM4 Part Number 1653004793 Footprint HD_10x2P_79_23N685B-20M10 Description Pin Name DCD3# DSR3# RXD3 RTS3# TXD3 CTS3# DTR3# RI3# DCD4# DSR4# RXD4 RTS4# TXD4 CTS4# DTR4# RI4# MIO-5270 User Manual...
- Page 59 CN28 MIOe Part Number 1654006235 Footprint BB_40x2P_32_1625x285_2HOLD Description Pin Name PCIE_RX0+ PCIE_TX0+ PCIE_RX0- PCIE_TX0- PCIE_RX1+ PCIE_TX1+ PCIE_RX1- PCIE_TX1- PCIE_RX2+ PCIE_TX2+ PCIE_RX2- PCIE_TX2- PCIE_RX3+ PCIE_TX3+ PCIE_RX3- PCIE_TX3- PCIE_CLK+ LOUTL PCIE_CLK- LOUTR AGND SMB_CLK SMB_DAT PCIE_WAKE# RESET# SLP_S3# MIO-5270 User Manual...
- Page 60 CLK33M SLP_S5# LPC_AD0 DDP_HPD LPC_AD1 LPC_AD2 DDP_AUX+ LPC_AD3 DDP_AUX- LPC_DRQ#0 LPC_SERIRQ DDP_D0+ LPC_FRAME# DDP_D0- USB0_D+ DDP_D1+ USB0_D- DDP_D1- USB1_D+/USB_SSTX+ DDP_D2+ USB1_D-/USB_SSTX- DDP_D2- USB2_D+/USB_SSRX+ DDP_D3+ USB2_D-/USB_SSRX- DDP_D3- USB_OC# +12VSB +5VSB +5VSB +5VSB +5VSB MIO-5270 User Manual...
- Page 61 CN29 PCIe Mini Card Holder Part Number 1654002539 Footprint FOX_AS0B226-S68K7F_HOLDER Description MINI PCI Express 52P 6.8mm 90D SMD AS0B226-S68K7 Pin Name MIO-5270 User Manual...
- Page 62 CN30 PCIe Mini Card Part Number 1654002538 Footprint FOX_AS0B226-S68K7F Description MINI PCI Express 52P 6.8mm 90D SMD AS0B226-S68N7 Pin Name WAKE# +3.3VSB +1.5V REFCLK- REFCLK+ PERST# PERn0 +3.3VSB PERp0 MIO-5270 User Manual...
- Page 63 +1.5V SMB_CLK PETn0 SMB_DAT PETp0 USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB MIO-5270 User Manual...
- Page 64 CN31 CFast Part Number 1653004402 Footprint CFAST_24P_N7E24 Description CFast 24P 1.27mm 90D(M) SMD N7E24-M516RA-50 Pin Name PC10 PC11 PC12 PC13 +3.3V PC14 +3.3V PC15 MIO-5270 User Manual...
- Page 65 PC16 PC17 FAN1 CPU FAN Part Number 1655003010 Footprint W_3V_2.54mm Description Wafer 2.54mm 3P 180D(M) DIP W/LOCK 22-27-2031 Pin Name TACH MIO-5270 User Manual...
- Page 66 MIO-5270 User Manual...
-
Page 67: System Assignment
Appendix System Assignment... -
Page 68: System I/O Ports
System ROM D0000h - EFFFFh Unused (reserved for Ethernet ROM) C0000h - CEFFFh Expansion ROM (for VGA BIOS) B8000h - BFFFFh CGA/EGA/VGA text B0000h - B7FFFh Unused A0000h - AFFFFh EGA/VGA graphics 00000h - 9FFFFh Base memory MIO-5270 User Manual... -
Page 69: Interrupt Assignments
Keyboard IRQ2 Interrupt from controller 2 (cascade) IRQ3 COM2 IRQ4 COM1 IRQ5 EC Watch DOG IRQ6 Reserved IRQ7 COM3 IRQ8 IRQ9 Reserved IRQ10 Reserved IRQ11 COM4 IRQ12 Reserved IRQ13 Math Coprocessor IRQ14 Primary IDE IRQ15 Secondary IDE MIO-5270 User Manual... - Page 70 MIO-5270 User Manual...
-
Page 71: Watchdog Timer Sample Code
Appendix Watchdog Timer Sample Code... -
Page 72: Ec Watchdog Timer Sample Code
EC_Command_Port mov al, 57h ; Watch dog event flag. out dx,al mov dx, EC_Data_Port mov al, 04h ; Reset event. out dx,al mov dx, EC_Command_Port mov al,28h ; start WDT function. out dx,al exit MIO-5270 User Manual... -
Page 73: Amd G-Series
Appendix AMD G-Series... - Page 74 Advantech MIO-5270 is a MIO compact Single Board Computer with AMD G-series APU which supports AMD accelerated processing technology. This technology (known as ATI stream) is a software and hardware combination that enables CPU graphic engine acceleration. This acceleration can be supported with specific 3rd party applications.
- Page 75 MIO-5270 User Manual...
- Page 76 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2011...
