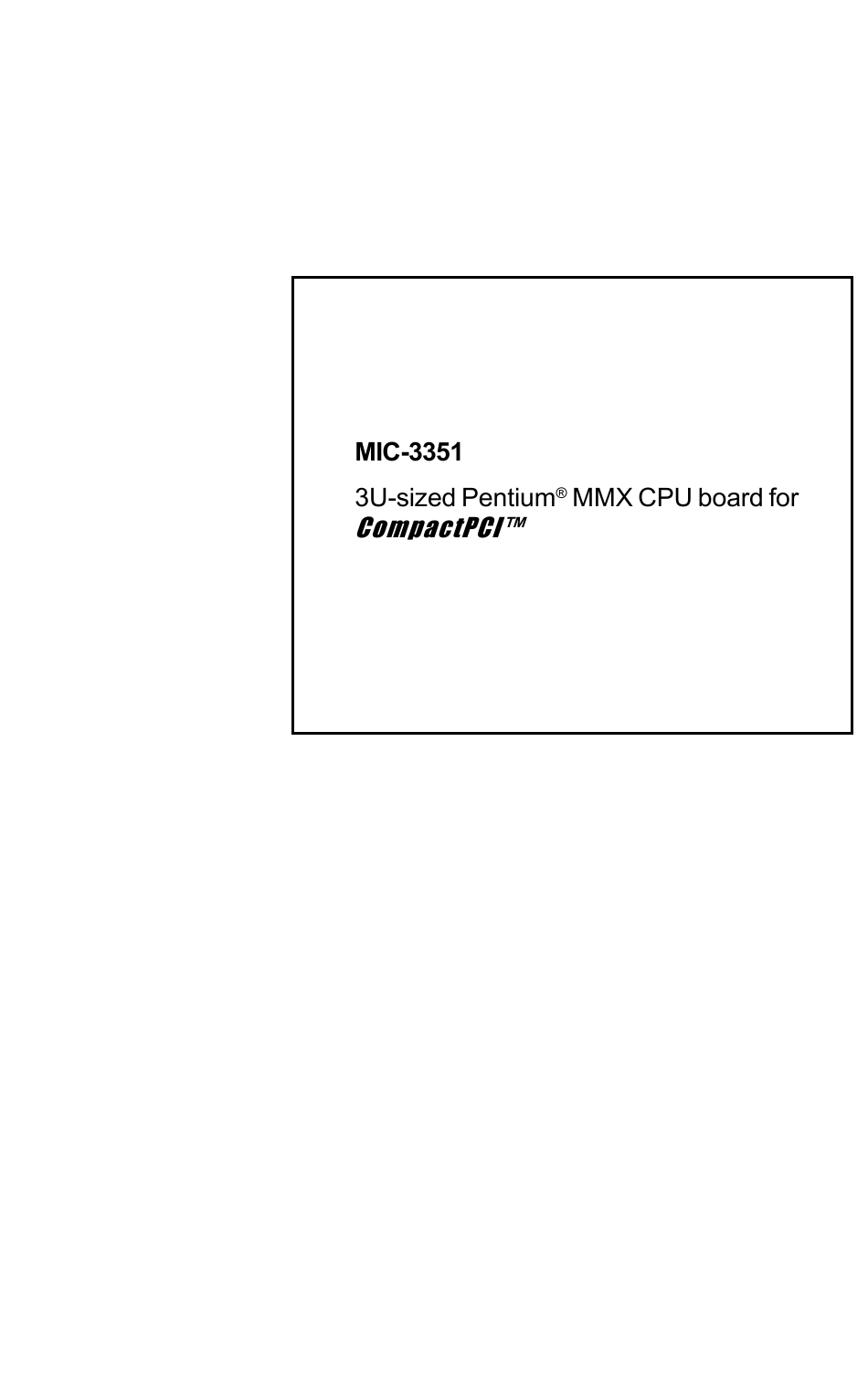

3u-sized pentium mmx cpu board for compactpci
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIC-3351 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech MIC-3351

Summary of Contents for Advantech MIC-3351

  • Page 2 All other product names or trademarks are properties of their respective owners. The MIC-3351, developed by Advantech CO., LTD., has passed the CE test for environment specification when shielded cables are used for external wiring and sleeve core clamps are added to the USB cables.
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 5 • This user's manual If any of these items are missing or damaged, contact your distributor or sales representative immediately. If you have any technical questions about the MIC-3351 or any other Advantech products, please visit our support website at: • http://support.advantech.com.tw...
  • Page 6 1.1 Introduction ..................2 1.2 Specifications ................... 2 1.2.1 Standard SBC functions ................ 2 1.2.2 PCI SVGA interface ................3 1.2.3 Ultra2 Wide SCSI Interface (MIC-3351S only) ........3 1.2.4 Mechanical and environmental specifications ........4 1.3 Function Block Diagram ..............5 1.4 Board Dimensions ................

  • Page 7: Table Of Contents

    3.1 Introduction ..................26 3.2 Utility and Drivers ................26 4.1 Introduction ..................30 4.2 Installation of SVGA Driver ............30 4.2.1 Installation for Windows 3.1 .............. 31 4.2.2 Installation for Windows 95 ............... 33 4.2.3 Installation for Windows 98 ............... 33 4.2.4 Installation for Windows NT ..............
  • Page 8 B.1 VGA Display Connector (CN1) ............60 B.2 Keyboard and Mouse Connnector (CN3) ........60 B.3 COM1 and COM2 Serial Port (CN2) ..........61 B.4 USB Connector (CN4) ..............62 B.5 Ethernet RJ-45 Connector (CN9) ..........62 B.6 Parallel Port Connector (CN8) ............63 B.7 IDE Connector (CN7) ..............
  • Page 12 • MIC-3351S: 3U CompactPCI Pentium MMX CPU board with an Ultra2 Wide SCSI interface Please check which version of the MIC-3351 you have on hand. Some of the functions in this manual may not be applicable to some version. ®...
  • Page 13 • FDD interface: Supports up to two floppy disk drives • Parallel port: Configured to LPT1, LPT2, LPT3 or disabled. Supports multi-mode parallel port (SPP/ECP/EPP), MIC-3351 only • Serial ports: Two RS-232 ports with 16C550 UARTs • Ethernet: Intel 82559 Fast Ethernet Controller Chip 10/100 Base-TX with RJ-45 connector •...
  • Page 14 • Board size: 160 x 100 mm (3U size), 2-slot (8TE) wide. Optional 1-slot wide on-board FDD mounting bracket • Max. power requirements: +5 V (4.75 ~ 5.25 V) @ 2.30 A (under typical conditions) • Operating temperature: 0 ~ 70° C (32 ~ 158° F) •...
  • Page 17 The MIC-3351 provides jumpers for configuring your board for specific applications other than the default settings. Table 1-1 list the jumper functions. Figure 1-3 illustrates the jumper locations.
  • Page 18 This section tells how to set the jumpers to configure your card. It gives the card default configuration and your options for each jumper. After you set the jumpers and install the card, you will also need to run the BIOS Setup program (discussed in Chapter 6) to configure the serial port addresses, floppy/hard disk drive types and system operating parameters.
  • Page 19 If a CompactFlash card and an IDE drive are connected to the primary IDE channel at the same time, we recommend to set the CompactFlash card as master and the other IDE drive as slave. Otherwise, the MIC-3351 may not be able to detect the CompactFlash correctly.
  • Page 20 On board connectors link to external devices such as hard disk drives, keyboards, or floppy drives, etc. Table 1-4 lists the function of each connector and Figure 1-4 and Figure 1-5 illustrate each connector location. Chapter 2 gives instructions for connecting external devices to your card.
  • Page 23 PRINTER SCSI COM 1 COM 2 COM 1 COM 2 RESET RESET...
  • Page 24 Follow these simple precautions to protect yourself from harm and the products from damage. 1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on. 2.
  • Page 25 The MIC-3351 provides two 144-pin SODIMM sockets, one on the component side of the upper board and the other one on the solder side of the upper board. Each socket accepts 16, 32, 64, or 128 MB SDRAM. The sockets can be filled in any combination with DIMMs of any size, giving a total memory capacity between 16 and 256 MB.
  • Page 28 The MIC-3351 provides one IDE (Integrated Device Electronics) connector on board. Two IDE drives can be connected to the MIC- 3351 through the on-board conector. However, due to the limited space, the on-board bracket accepts only one 2.5" hard disk drive.
  • Page 29 One floppy disk drive can be connected to the MIC-3351 through the on-board connector. The 1-slot wide mounting bracket shipped with the MIC-3351 can accommodate one floppy disk drive. Please refer to Figure 2-1 for the assembling procedures. This socket accepts an IDE-compatible CompactFlash memory card. If a CompactFlash card is inserted in the CompactFlash socket and an IDE drive (i.e.
  • Page 30 The parallel port is designated as LPT1 and can be disabled or changed to LPT2 or LPT3 from the system BIOS setup. The MIC-3351 provides a 6-pin mini-DIN connector (CN3) on the front panel for connection of PS/2 keyboard and PS/2 mouse. The MIC-3351 comes with an cable to convert from the single 6-pin mini-DIN connec- tor to a double PS/2 keyboard connector and PS/2 mouse connector.
  • Page 31 The MIC-3351 is equipped with a high performance 32-bit PCI-bus Fast Ethernet interface which is fully compliant with IEEE 802.3u 10/ 100Base-TX specifications. It is supported by all major network operating systems and is 100% Novell NE-2000 compatible. One on- board RJ-45 jack provides convenient connection to the network.
  • Page 32 The inject/eject handles of MIC-3351 help you install and remove the card easily and safely. Follow the procedure below to install the MIC- 3351 into a chassis: 1. Hold the card vertically. Be sure that the card is pointing in the correct direction.
  • Page 36 PHY and is compatible with the Intel PRO/100+ Server and Client Adapter. The MIC-3351 comes with drivers for a wide variety of networks and operating systems. The MIC-3351 is an excellent choice for operation in standalone and harsh industrial environments.
  • Page 37 • MIC3000\82559\WFW\E100B.38_, \MIC3000\82559\WFW\ OEMSETUP.INF: Drivers for Windows 3.1 For Novell NetWare • \MIC3000\82559\INFO\NETWARE\NETWARE.TXT: Installation instructions for Novell NetWare • \MIC3000\82559\NWSERVER\3X4X.OLD\E100B.LAN: Drivers for NetWare 3.12 and 4.10 • \MIC3000\82559\NWSERVER\311LAN\E100B.LAN: Drivers for NetWare 3.11 • \MIC3000\82559\OS2\E100BODI.SYS: Drivers for NetWare OS/2 ODI Client •...
  • Page 38 • \MIC3000\82559\DOS\E100B.DOS: Drivers for BANYAN NDIS workstation • \MIC3000\82559\DOS\E100B.DOS: Drivers for LANTASTIC 6.0 • \MIC3000\82559\DOS\E100B.DOS: Drivers for general NDIS 2.X (DOS driver) • \MIC3000\82559\OS2\E100B.OS2: Drivers for general NDIS 2.X (OS/2 driver) Before installing drivers, please refer to the installation instructions of each operating system.
  • Page 40 The MIC-3351 uses an Intel C&T 69000 chipset as its VGA controller. The VGA controller has an integrated 2 MB SDRAM operating at 83 MHz, and can drive CRT displays with resolutions up to 1024 x 768 at 64 K colors. It supports interlaced and non-interlaced analog monitors (color and monochrome VGA) in high-resolution modes while main- taining complete IBM VGA compatibility.
  • Page 42 ChipsCPL...
  • Page 43 "D:\MIC3000\69000\Win95\w95500.exe" from Windows Start menu's Run command or by double-clicking the w95500.exe icon in Windows Explorer. The installation program will search MIC-3351's VGA display controller then finish the installation automatically. To install the VGA driver for Windows 98, run the program "D:\MIC3000\69000\Win98\w98600.exe"...

  • Page 48: Utility User's Guide And Installation Instructions

    The MIC-3351S uses the Symbios SYM53C895 SCSI processor to provide an Ultra2 Wide SCSI interface with data transfer rate up to 80 MB/s. The device can support cables up to 12-meter long and up to 16 LVD devices on a wide LVD ( Low Voltage Differential) SCSI bus. Device drivers and utilities for DOS, Windows 3.1, Windows 98/95/NT, OS/2, SCO UNIX, UnixWare and NetWare are included in the utility CD-ROM.
  • Page 49 • VERIFY.HTM: SDMS DOS verify utility user's guide For Windows 95/98: • DEVMGR95.HTM: Installing the SYMC8XX.MPD/SYM_HI.MPD driver in Windows 95 • SCSITOOL.HTM: Installation guide for Symbios SCSI tools for Windows 95/98 and Windows NT • WIN95.HTM: Installation guide for device drivers for Windows 95 and Windows 98 For Windows NT: •...
  • Page 50 For NetWare: • NETWDMI.HTM: NetWare DMI 1.0 SDMS component instrumenta- tion • NWPA.HTM: Installation guide for Symbios NetWare NWPA drivers SYM8XXNW.HAM and SYMHINW.HAM For OS/2: • OS2.HTM: Driver installation for OS/2 For Solaris: • SOLARIS.HTM: Installation guide for the Solaris device driver Other tools and utilities •...
  • Page 51 • \SYM895\DISKIMAG\8XXNT95.EXE: Drivers for Windows 95/NT • \SYM895\DISKIMAG\NW_OS2.EXE: Drivers for NetWare and OS/2 • \SYM895\DISKIMAG\NTCONFIG.EXE: Configuration utility for Windows NT • \SYM895\DISKIMAG\DOSUTILS.EXE: DOS configuration and format utility The device drivers and utilities for the SCSI interface are provided in the directories \SYM895\DRIVERS, \SYM895\UTILITY and \SYM895\WINNT on the utility CD-ROM disc.
  • Page 52 Other tools and utilities • \SYM895\DRIVERS\BIOS • \SYM895\UTILITY Please refer to related documents listed in section 5.2 for detailed installation guides.
  • Page 54 CPU. If there is no number assigned to the patch code, please contact Advantech's application engineer to obtain an up-to-date patch code file. This will ensure that your CPU's system status is valid. After ensuring that you have a number assigned to the patch code,...

  • Page 55: Standard Cmos Setup

    Choose the "STANDARD CMOS SETUP" option from the INITIAL SETUP SCREEN Menu, and the screen below will be displayed. This standard setup menu allows users to configure system components such as date, time, hard disk drive, floppy drive, display, and memory. ↑↓→←...

  • Page 56: Bios Features Setup

    The "BIOS FEATURES SETUP" screen will appear after the BIOS FEATURES SETUP item from the CMOS SETUP UTILITY Menu has been chosen. This screen allows the user to configure the MIC-3351 according to his particular requirements. Below are some major items that are provided in the BIOS FEATURES SETUP screen: ↑↓→←...
  • Page 57 During and after the system boots up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system. If this happens, a warning message will be displayed. You can run the anti-virus program to locate the problem.
  • Page 58 The default is "On". Keypad boots up to number keys. Keypad boots up to arrow keys. High Sets the speed to high Sets the speed to low Enabled Enable IDE HDD Block Mode. BIOS will detect the block size of the HDD and send a block command automatically. Disabled Disable IDE HDD Block Mode Normal...
  • Page 59 When holding down a key, the Typematic Delay is the time interval between the appearance of the first and second characters. The input values (msec) for this category are: 250, 500, 750, 1000. This setting determines whether the system will boot if the password is denied, while limiting access to Setup.

  • Page 60: Chipset Features Setup

    Choosing the "CHIPSET FEATURES SETUP" option from the INITIAL SETUP SCREEN Menu causes the screen below to be displayed. This sample screen contains the manufacturer's default values for the MIC-3376. ↑↓→← ↑↓→← ↑↓→← ↑↓→← ↑↓→← Shared memory architecture can support 0.5 MB, 1MB, 1.5 MB, 2 MB, 3 MB, 3.5 MB and 4 MB of system memory.

  • Page 61: Power Management Setup

    The power management setup controls the CPU cards' "green" features. The following screen shows the manufacturer's default values. ↑↓→← This option allows you to determine if the values in power manage- ment are disabled, user-defined, or predefined. You can choose to turn the HDD off after one of the time intervals listed, or when the system is in Suspend mode.

  • Page 62: Load Bios Defaults

    IRQ can be set independently. Activity on any enabled IRQ will wake up the system. ↑↓→← "LOAD BIOS DEFAULTS" loads the most appropriate values of the system parameters for minimum performance. These default values are loaded automatically if the stored record created by the Setup program becomes corrupt (and therefore unusable).

  • Page 63: Password Setting

    ↑↓→← To change, confirm, or disable the password, choose the "PASS- WORD SETTING" option from the Setup main menu and press [Enter]. The password can be at most 8 characters long. Remember to enable this feature. You must first select the Security Option in the BIOS FEATURES SETUP to be either "Setup"...
  • Page 64 If you select this and press the [Enter] key, the values entered in the setup utilities will be recorded in the CMOS memory of the chipset. The microprocessor will check this every time you turn your system on and compare this to what it finds as it checks the system. This record is required for the system to operate.
  • Page 66 To program the watchdog timer, you must write a program which writes a value to I/O port address 443 (hex). This output value represents time interval. The value range is from 01 (hex) to 3F (hex), and the related time interval is from 1 sec. to 63 sec. Data Time Interval 1 sec.
  • Page 67 After data entry, your program must refresh the watchdog timer by rewriting the I/O port 443 (hex) while simultaneously setting it. When you want to disable the watchdog timer, your program should read the I/O port 443 (hex). The following example shows how you might program the watchdog timer in BASIC:...
  • Page 72 USB2 USB1...
  • Page 74 43 41 ..3 1 44 42 ..4...
  • Page 75 26 25 ..2 1...
  • Page 80 * Ethernet function is auto-sensing...
