Summary of Contents for HunterDouglas WHISPER Cellular EasyRise Shades
- Page 1 WHISPER Cellular ® WHISPER Cellular ® EasyRise Shades EasyRise Shades Installation • Operation • Care Installation Operation • • 05/2013...
-
Page 2: Table Of Contents
CONTENTS Getting Started: Product View ..............1 Tools and Fasteners Needed .......... 2 Installation: Installation Overview ............ 3 Mounting Types and Window Terminology ....... 3 Mount the Installation Brackets — Reveal Mount .... 4 Mount the Installation Brackets — Face Mount ....5 Mount the Installation Brackets —... -
Page 3: Getting Started
GETTING STARTED Product View Installation Brackets Fabric-Covered Headrail End Cap Cord Tensioner and Bracket Hold-Down Bracket (Optional) -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing WHISPER Cellular EasyRise Shades. With proper installation, ® operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. If your shade has a protective plastic cover on the fabric-covered headrail, keep the plastic in place until the shade is installed. -
Page 5: Installation
INSTALLATION Installation Overview Your order will include the correct number of installation brackets for your shade width, as shown in the table. Shade Brackets 10mm & 20mm Width (mm) Required End Mount Installation Brackets 310 – 915 Bracket 916 – 1830 1831 –... -
Page 6: Mount The Installation Brackets - Reveal Mount
INSTALLATION Mount the Installation Brackets — Reveal Mount Measure 50mm from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark their location. Mount into wood whenever possible. -
Page 7: Mount The Installation Brackets - Face Mount
INSTALLATION Mount the Installation Brackets — Face Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail on the mounting surface. Alternatively, measure the width of the headrail and use that width to mark the headrail ➤... - Page 8 INSTALLATION Attach the installation or extension brackets using the screws provided. ■ IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, first attach the installation ■ bracket to the 13mm spacer block before stacking additional spacer blocks together.
-
Page 9: Mount The Installation Brackets - End Mount
INSTALLATION Mount the Installation Brackets — End Mount End mount the headrail when conventional mounting techniques will not work — for example, in an arched window opening. Position the end mount brackets so that the top of the attached installation brackets equal ■... -
Page 10: Install The Shade
INSTALLATION Install the Shade The front of the bracket fits under the groove. Hold the shade so that the front of the headrail ■ Bracket (colored fabric) faces you. Slip the headrail onto the installation brackets, so ■ Headrail that the front of the bracket fits under the groove of the headrail. -
Page 11: Level The Bottom Rail (If Necessary)

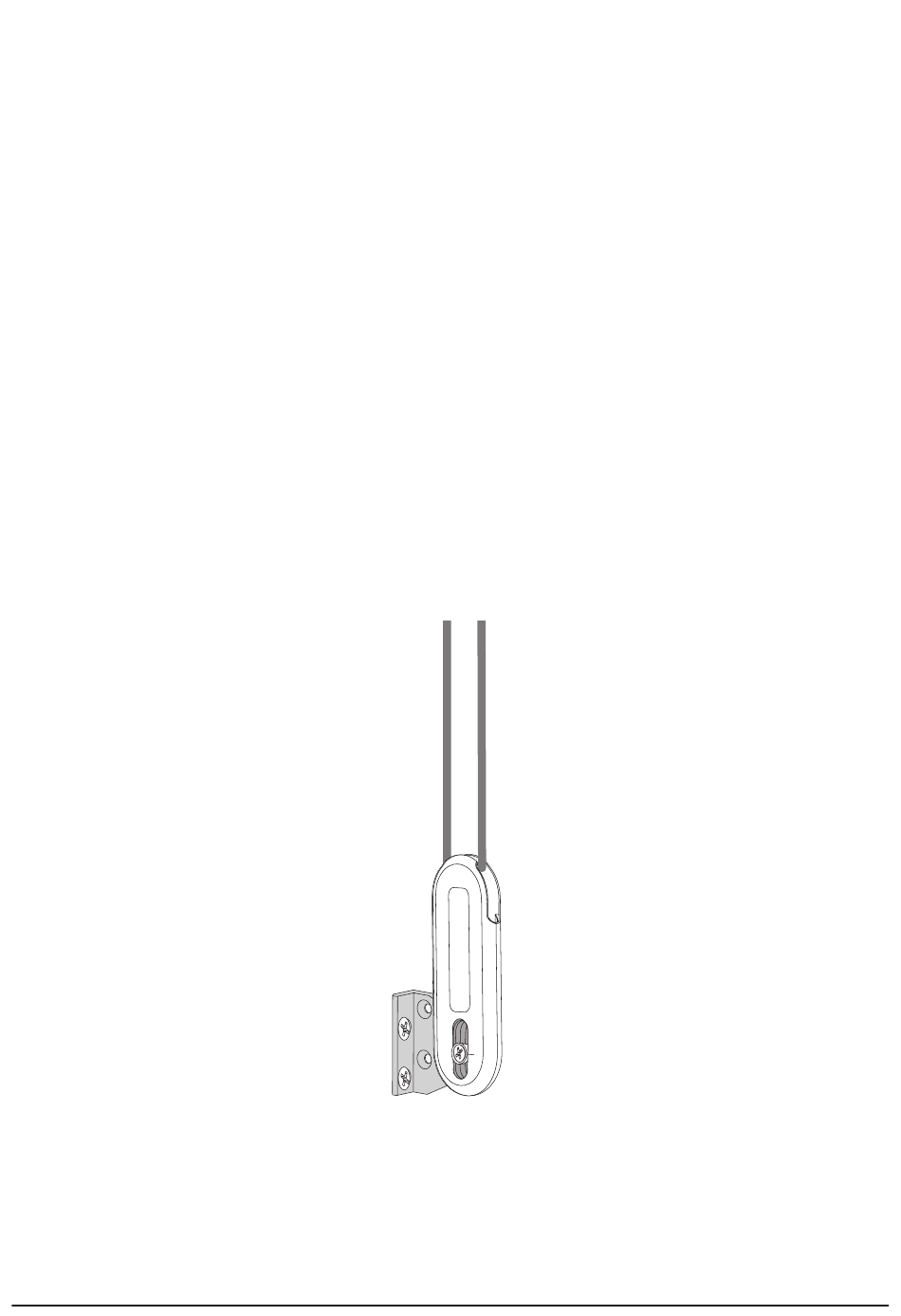

INSTALLATION Shade Height Adjustment Shade height and adjustments to level the bottom rail can be made by adjusting the cord on the underside of the bottom rail. Locate the ferrule, seated in a pocket in the bottom rail. Remove the ferrule by pulling on the excess cord. - Page 12 INSTALLATION UNIVERSAL CORD TENSIONER Before doing anything, you must first slide the universal cord tensioner to the bottom of the cord loop. Insert a small screwdriver, through the screw hole at the bottom of the cord tensioner. Move the screw hole down to the indicator line to release the safety mechanism.
- Page 13 INSTALLATION • Hold the cord tensioner firmly in place and check that the cord can move freely through it. If the cord does not move freely through the cord tensioner, it is too tight and the cord tensioner and/or bracket should be moved up.
- Page 14 INSTALLATION • Attach the inside mount bracket to the cord tensioner. The nub on the inside mount bracket fits into the back of the screw hole in the cord tensioner. • Insert the small screw into the front of the screw hole to secure the cord tensioner to the bracket.
- Page 15 INSTALLATION Face Mount • This option uses three screws and is attached to an outside mount bracket. Locate the cord tensioner as close to the window covering as possible to minimize accessibility by children and pets. Be sure the cord tensioner is not placed in the path of the bottom rail and fabric.
-
Page 16: Operation
OPERATION • Ensure the cord can move freely through the cord tensioner without engaging the lock. The centre of the screw hole should be aligned with the indicator line on the cord tensioner. Do not pull the screw hole down to the bottom of the slot. This may cause the cord to become too tight, affecting the window covering function and increasing cord wear. -
Page 17: Troubleshooting
OPERATION Troubleshooting Problem The shade is hard to raise or lower, or will not raise or lower. Solution Check that the cord tensioner is mounted correctly. See the instructions included with your Universal Cord Tensioner Installation on page 10. For Duolite and Top Down/Bottom Up Shades: The lift cords in the headrail may have “overturned”. - Page 18 OPERATION Problem The shade will not fit into the installation brackets. Solution Check that the installation brackets are level and aligned. Shim the installation brackets to level the headrail, if necessary. Be sure the heads of the screws are flush against the installation bracket. Check that the headrail is completely inserted into the installation brackets.
-
Page 19: Care
CARE Removing the Shade (If Necessary) Lower the shade approximately 100mm. ■ Bracket While holding the headrail, push ■ back on the bottom tab of Back of the installation bracket to Headrail Shade release the bottom edge of the headrail. After releasing the bottom ■... - Page 20 CARE Bathtub Cleaning/Water Immersion CAUTION: Do not immerse fabric-covered valance, Daybreak, Dusk, Sunterra and all blockout fabrics in all fabric ranges. Immerse the shade in a basin or bathtub filled with warm water and a mild detergent. Never ■ immerse the headrail into the solution. Rinse with clean water.
-
Page 21: Child Safety
CHILD SAFETY Warning Protecting Your Children Please be aware that blind cords or chains pose a strangulation hazard for children. To reduce the risk of strangulation this internal window covering must be installed in such a way that a loose cord cannot form a loop 220 mm or longer at a height of less than 1600mm above floor level. - Page 22 Notes...
- Page 23 Notes...
