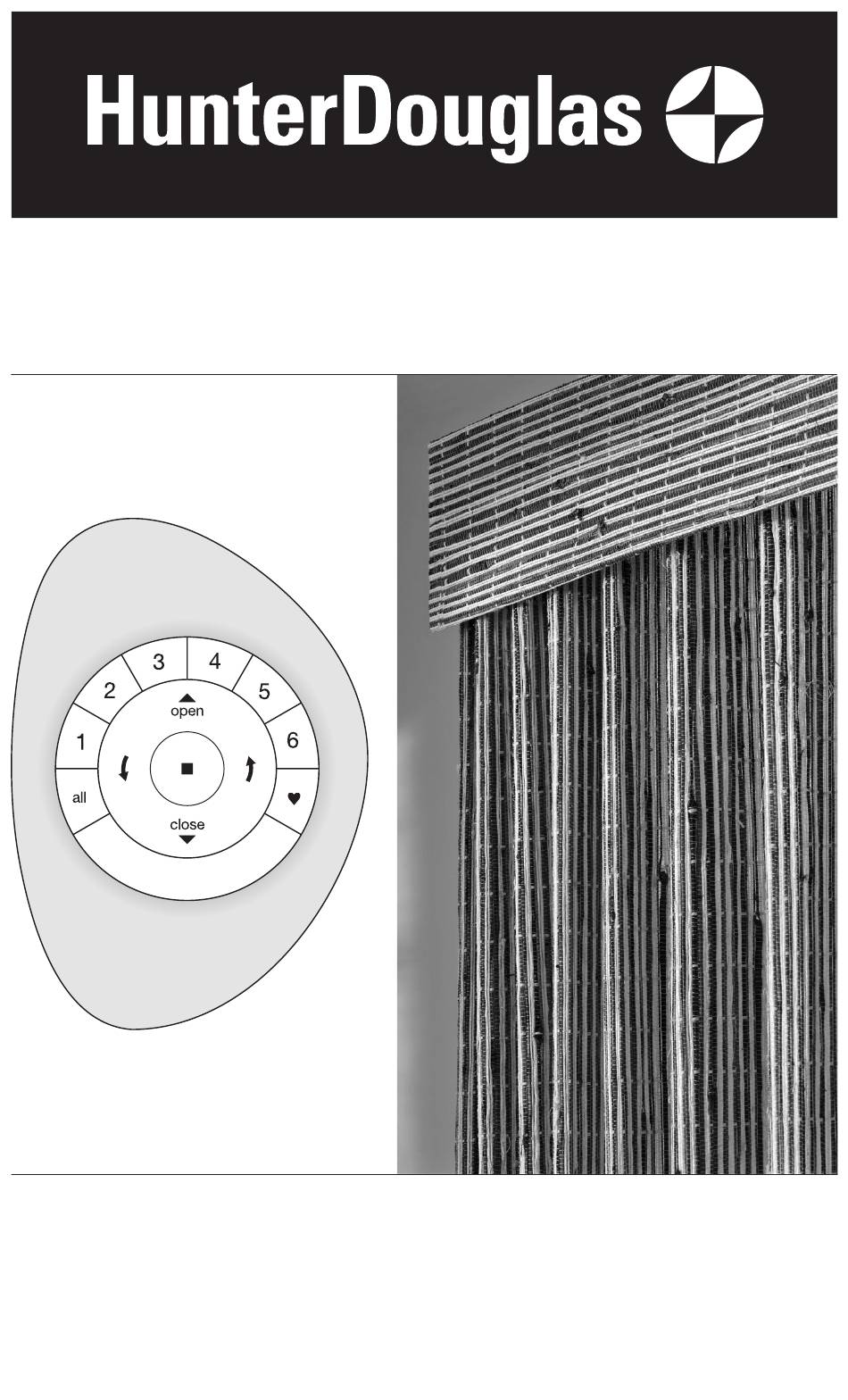

- Page 1 Installation Operation Care • • Provenance Woven Wood Shades ® Vertical Drapery with PowerView Motorization ®...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED Product View ................... 1 Tools Needed .................. 2 Brackets and Fasteners Needed ............. 2 Mounting Types and Window Terminology ........3 INSTALLATION Inside and Ceiling Mount..............4 Outside Mount ................6 Connect the Receiver (If Not Already Connected) ......8 Mount the Receiver ................ -
Page 3: Getting Started
GETTING STARTED Product View Valance Attached Valance Mounting Clips PowerView ® Receiver Outside Mount Installation Brackets Valance Return Fabric Not Shown: Split Stack Vertical Drapery... -
Page 4: Tools Needed
GETTING STARTED Thank you for purchasing the Hunter Douglas Provenance Woven Woods vertical drapery ® with PowerView Motorization. With proper installation, operation, and care, your new ® drapery will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before ■... -
Page 5: Mounting Types And Window Terminology
GETTING STARTED Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process flows easily. To prepare for this important first step, review the mounting types and basic window terminology illustrated below. Molding Head Jamb Jamb Jamb... -
Page 6: Installation
INSTALLATION Inside and Ceiling Mount Mount the Standard Valance/Headboard Mounting clips are pre-attached to the underside of the valance board. A minimum inside mounting depth of 2 ⁄ " is required. For a flush ■ mount, minimum depth is 4 ⁄... - Page 7 INSTALLATION Mount the Headrail Orient the headrail so that the control side is located on the correct side. ■ Center the headrail underneath the mounting clips. ■ Ensure that all the mounting clips on the headboard are oriented with the hook toward ➤...
-
Page 8: Outside Mount
INSTALLATION Outside Mount The number of installation brackets required varies based on Attached the headrail width, as shown in the table on Page 2. Mounting Clip IMPORTANT: The top of the installation brackets must be mounted at the ordered height minus ⁄... - Page 9 INSTALLATION Attach the Installation Brackets Center the installation brackets on your marks and mark the location of the screw holes. ■ The installation brackets must be mounted ➤ Wall Ordered Mark Ordered level for the unit to operate correctly. Height Height - ⁄...
-
Page 10: Connect The Receiver (If Not Already Connected)
INSTALLATION Connect the Receiver (If Not Already Connected) IMPORTANT: Connect the receiver before connecting the DC power supply. Plug the 10-pin receiver connector into the motor housing. ■ CAUTION: The receiver connector can only be inserted one way. Do not force the connector into the motor housing. Snap the cover into place over the motor. -
Page 11: Test Headrail Operation
INSTALLATION Test Headrail Operation Testing the drapery with the programming button will allow you to ensure that the motor and power source are working correctly. Press and release the programming button on the PowerView ® ■ Receiver located on the bottom of the motor to test operation. If the drapery does not operate, see “Troubleshooting”... -
Page 12: Install The Drapery
INSTALLATION Install the Drapery Unroll Window The drapery are rolled so the end that is “out” is the stationary or stack side end. Position “Out” the roll under the installed headrail so it unrolls toward the window. Drapery will be marked LEFT First or RIGHT. -
Page 13: Outside Mounts: Install The Valance
INSTALLATION Outside Mounts: Install the Valance Standard Valance Ensure that all the mounting clips on the Hook into ■ the front standard valance headboard are groove of the oriented with the hook toward the front headrail. Mounting and the release tab toward the window. Clip Starting at the center of the headrail, tilt ■... -
Page 14: Operation
PowerView Scene Controller For information regarding operation and programming of the PowerView Scene Controller, refer to your PowerView Motorization Scene Controller Guide or to the online PowerView Step-by-Step Guide at hunterdouglas.com/operating-systems/motorized/powerview- motorization/manuals. PowerView App Operation The PowerView Hub is required for PowerView App operation. For information regarding setup and operation using the PowerView App, refer to the online PowerView Step-by-Step Guide at hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals. -
Page 15: Resetting The Drapery (If Necessary)
OPERATION Resetting the Drapery (If Necessary) Calibration Reset The calibration reset is used to calibrate the drapery’s travel limits. 1. Press and hold the programming button for approximately 6 seconds. The drapery will move slightly. Release the programming button (the light flashes red). 2. - Page 16 OPERATION Problem The drapery does not open or does not close easily. Solution Check that the drapery is attached to the carriers correctly, alternating between the front and back tracks. Check that the installation brackets are level and the attached mounting clips are aligned.
-
Page 17: Care
CARE Removing the Drapery (If Necessary) Remove the drapery from the carriers. ■ At each grommet, separate the carrier hinge from the post. Roll the drapery from the ➤ leading edge to the stationary end, so that the stationary end is on the outside of the roll. -
Page 18: Cleaning Procedures
CARE Cleaning Procedures For most fabrics, the following options are available if your drapery needs cleaning. Dusting Regular light dusting with a feather duster is all the cleaning that is needed in most ■ circumstances. You may also use a hair dryer on a cool setting or compressed air set to a low pressure. -
Page 19: Declarations
Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that assembly PV16 conforms with the essential requirements of the EMC directive 2004/108/EC and R&TTE directive 1999/5/EC. A copy of the original declaration of conformity may be found at: www.hunterdouglas.com/RFcertifications. -
Page 20: Warranty
If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
