Summary of Contents for HunterDouglas Designer Screen Patio Shade

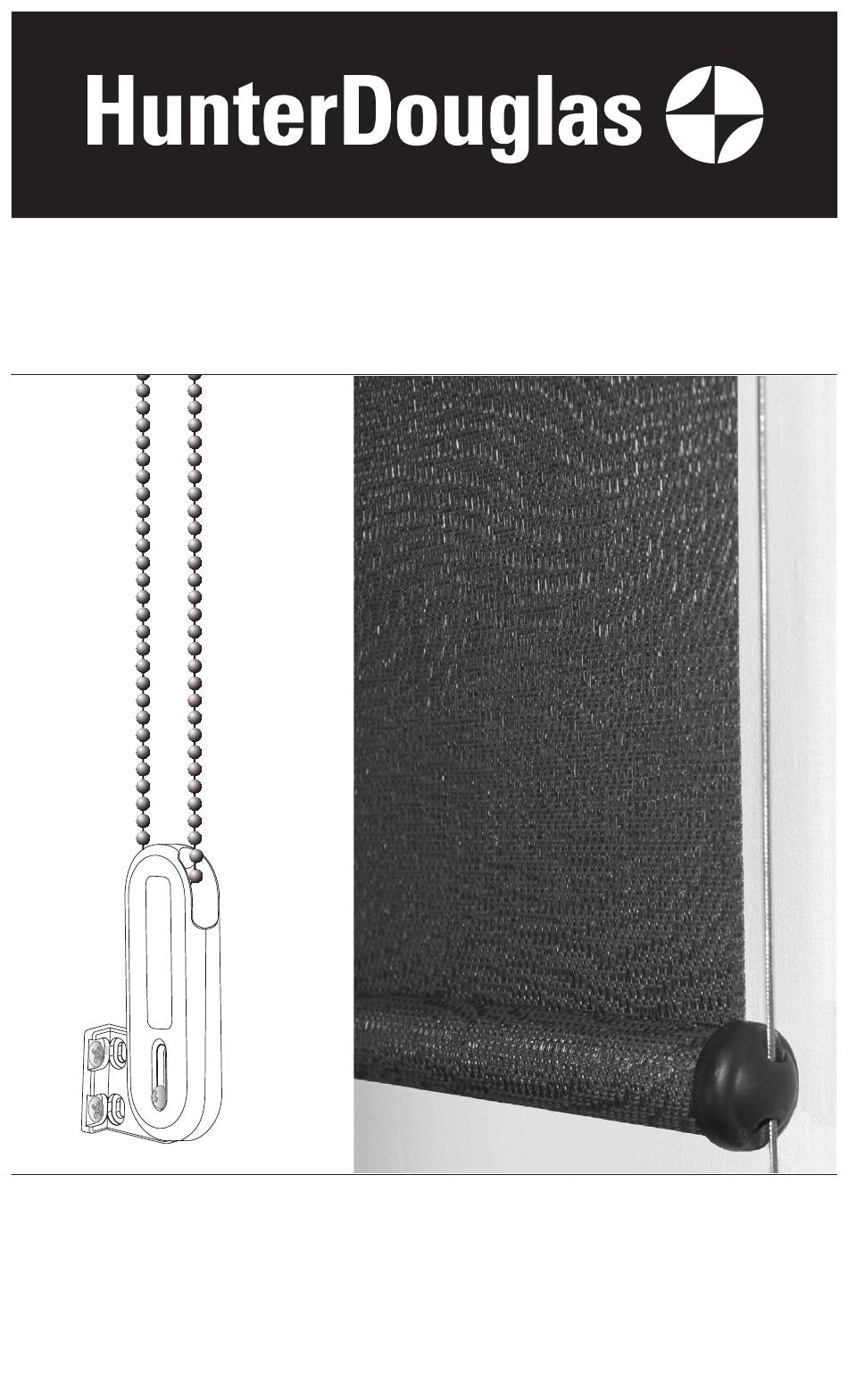

- Page 1 Installation Operation Care • • Designer Screen Patio Shade Cable Guide System with Beaded Cord Loop...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED Tools and Fasteners Needed ..............2 Mounting Types and Window Terminology ..........2 Mount the Standard Installation Brackets — Inside Mount ..... 3 Mount the Standard Installation Brackets — Outside Mount ....4 Mount the Cassette Installation Brackets — Inside Mount ...... 5 Mount the Cassette Installation Brackets —... - Page 3 PRODUCT VIEW Clutch-Side Installation Bracket Beaded Cord Loop Idler-Side Installation Bracket Cable Cord Tensioner Cassette Bracket Bracket Cassette and Cassette End Plates End Cap Hold-Down Bracket...
-
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Designer Screen Patio Shades with Cable Guide System. With proper installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. -
Page 5: Mount The Standard Installation Brackets - Inside Mount
INSTALLATION Mount the Standard Installation Brackets — Inside Mount Installation Brackets. The installation brackets are supplied Idler in pairs. One bracket is used on the clutch side with the beaded Side Clutch cord loop and the other bracket is used with the idler side of Side the shade. -
Page 6: Mount The Standard Installation Brackets - Outside Mount
INSTALLATION Mount the Standard Installation Brackets — Outside Mount Installation Brackets. The installation brackets are Ceiling Mount Holes supplied in pairs. One bracket is used on the clutch side Idler Side with the beaded cord loop and the other bracket is used Clutch with the idler side of the shade. -
Page 7: Mount The Cassette Installation Brackets - Inside Mount
INSTALLATION Mount the Cassette Installation Brackets — Inside Mount Installation Brackets for Cassette Shades. The number of installation brackets required varies depending on the shade width, as shown in the table. Cassette Shade Shade Brackets Width Required Up to 36" Cassette "... -
Page 8: Mount The Cassette Installation Brackets - Outside Mount
INSTALLATION Mount the Cassette Installation Brackets — Outside Mount Installation Brackets for Cassette Shades. The number of installation brackets required varies depending on the shade width, as shown in the table. Cassette Shade Shade Brackets Width Required Up to 36" Cassette "... -
Page 9: Install The Cables
INSTALLATION Use a level to check that the mounting surface is level. Shim the brackets if necessary. ■ Shims are not provided. Attach the installation brackets using the screws provided. ■ Install the Cables Thread all of the cable through the hole in ■... - Page 10 INSTALLATION It is important to verify gap between idler flange ■ and idler mount is ∕ " or less. If the gap is greater, " or less see “Removing the Shade (Only If Necessary)” on page 14. Loosen the screws on either or both brackets and slide the brackets closer together.
-
Page 11: Install The End Caps And Cables
INSTALLATION Install the End Caps and Cables Look inside each end cap for the identifier to indicate left hand or ■ right hand side for the end cap. Identifier Align the end cap ribs with the bottom rail channels. Push end cap onto the bottom rail ■... -
Page 12: Attach The Cable Hold-Down Brackets
INSTALLATION Attach the Cable Hold-Down Brackets If not already, fully raise the shade. Side Back Bottom ■ Select one of the three mounting options: ■ Place the hold-down ■ bracket in the desired " location, allowing ∕ " clearance from the center "... -
Page 13: Attach The Universal Cord Tensioner (Uct)
INSTALLATION Pull the cable taut and tightening the set screw ■ with the Allen wrench provided. Turn to Tighten If the cable is long, wrap the cable with electrical ■ tape where you intend to cut it. A ½" of cable can be left past the clamp for future adjustments. -
Page 14: Operation
OPERATION Operate the Shade BACK Cord To Lower the Shade Lowers Hold the BACK of the cord loop and pull down. ■ Pull until the shade is at the desired height. ■ To Raise the Shade Hold the FRONT of the cord loop and pull down. ■... - Page 15 OPERATION Problem The shade fabric winds unevenly on the roll. Solution Check that the shade is level. Using the beaded cord loop, completely lower the roller shade. If the fabric winds unevenly and begins to telescope to one side, check ➤...
-
Page 16: Removing The Shade (Only If Necessary)
OPERATION Removing the Shade (Only If Necessary) Remove the cover from hold-down bracket. ■ Remove the cable from the clamp on the hold-down bracket. ■ Loosen the set screw then pull the cable from the clamp. ➤ NOTE: A new cable may be necessary to reinstall securely. Turn to Pull to Loosen... -
Page 17: Cleaning Procedures
CARE Cleaning Procedures Designer Screen Shades are made from anti-static, dust-resistant materials which repel dirt and dust. The following options are available if your shade needs cleaning. Dusting Regular light dusting with a feather duster is all the cleaning needed in most ■... -
Page 18: Child Safety
CHILD SAFETY WARNING For more safety information call 1-888-501-8364 in the U.S. or 1-866-662-0666 in Canada. Young children can STRANGLE in cord loops. They can also wrap cords around their necks and STRANGLE. Always keep cords out of the reach of children. ■... - Page 20 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
