INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

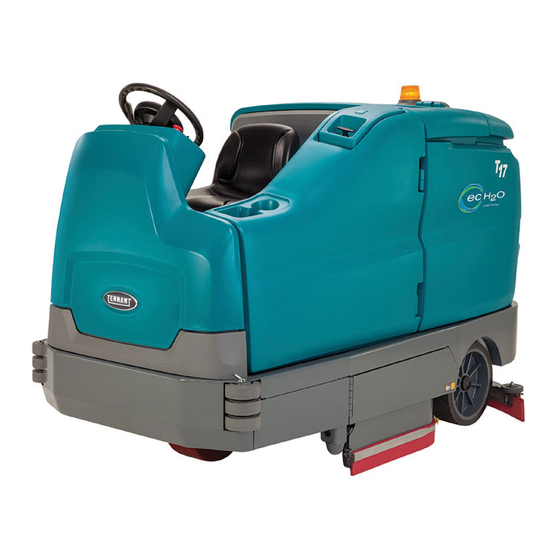

Installation instructions for kit number 9020057 / 9020206 (T17 machines NA serial numbers
000000- 010999 / EU serial numbers 0000- 0330) / 9014962 / 9014963 (T17 machines NA serial
numbers 011000-
SYNOPSIS:
This kit contains the parts needed to install a sweeping side brush or dual sweeping side brush kit
onto T17 scrubbers.
Please follow step-by-step instructions.
Machine must be factory equipped with side brush harness kit (PREP KIT, SIDE BRUSH
HARNESS [T17] - 9020047) to install the sweeping side brush(es).
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2.5 hours - single sweeping side brush / 3.5 hours - dual sweeping side
brushes)
PREPARATION:
1. Completely empty both the solution tank and
the recovery tank.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
2. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
IB 9012969 (07- 2016)
/ EU serial numbers 0400-
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
)
3. Place chocks behind both rear tires.
4. Jack up the front end of the machine. Place
jack stands under the front end of the
machine, and lower the machine onto the jack
stands.
FOR SAFETY: When servicing machine: block
machine tires before jacking machine up, jack
machine up at designated locations only.
(support machine with jack stands), use hoist
or jack that will support the weight of the
machine.
NOTE: Refer to MACHINE JACKING in the
MAINTENANCE section of Operators Manual for
additional information pertaining to safely jacking
up the machine.
No. 9012969
Machine: T17
Published: 07- 2016
Rev. 01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the T17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T17

Summary of Contents for Tennant T17

  • Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9020057 / 9020206 (T17 machines NA serial numbers 000000- 010999 / EU serial numbers 0000- 0330) / 9014962 / 9014963 (T17 machines NA serial numbers 011000-...

  • Page 2: Installation

    INSTALLATION: Right side sweeping side brush mounting location T17 machines NA serial numbers (011000- ) / EU serial numbers (0400- ) / M17 All machines Left side sweeping side brush mounting location Right side sweeping side brush mounting location T17 machines NA serial numbers...
  • Page 3 1. Remove any parts and components from the 7. Reassemble all parts removed to install the machine necessary to install the sweeping sweeping side brush(es) back onto the side brush assembly onto the machine. machine. 2. Cut the cable ties securing the side sweep 8.
  • Page 4 M8 SEMS hex screws 15 7 FRONT FIG. 2 - Sweeping Side Brush Lift Group, Right Side IB 9012969 (07- 2016)
  • Page 5 Tennant Ref. Part No. Description Qty. 1207330 Housing Wldt, SBA, RH (Kits 9020057 / 9020206 Only) 1225432 Housing Wldt, SBA, RH (Kits 9014962 / 9014963 Only) 1071085 Clip, Tie, 0.25d, Plstc 369781 Pulley, Cable, 1.5d Nyl 222460 Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]...
  • Page 6 FRONT FIG. 3 - Sweeping Side Brush Drive Motor Group, Right Side Tennant Part No. Ref. Description Qty. 1212824 Motor, Ele, 36vdc 0.08hp 0068rpm Gear RH 1207139 Bracket Wldt, Mtg, Motor, SBA 11398 Pin, Roll, .250d X 2.00l, .250/.256 1040467 Screw, Hex, M6 X 1.00 X 20, 9.8, SEMS...
  • Page 7 (Qty. 3) M8 SEMS hex screws FRONT FIG. 4 - Sweeping Side Brush Lift Group, Left Side IB 9012969 (07- 2016)
  • Page 8 Tennant Ref. Part No. Description Qty. 1207554 Housing Wldt, SBA, LH (Kits 9020057 / 9020206 Only) 1225423 Housing Wldt, SBA, LH (Kits 9014962 / 9014963 Only) 1071085 Clip, Tie, 0.25d, Plstc 369781 Pulley, Cable, 1.5d Nyl 222460 Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]...
  • Page 9 FRONT FIG. 5 - Sweeping Side Brush Drive Motor Group, Left Side Ref. Part No. Description Qty. 1212823 Motor, Ele, 36vdc 0.08hp 0068rpm Gear LH 1207559 Mount Wldt, Motor, SBA 11398 Pin, Roll, .250d X 2.00l, .250/.256 1040467 Screw, Hex, M6 X 1.00 X 20, 9.8, SEMS 1207412 Cover, Sidebrush, Sweeping 1020341...
  • Page 10 FRONT FIG. 6 - Sweeping Side Brush Electrical Group Ref. Part No. Description Qty. 9020229 Circuit Board Kit, H20, Afmkt [T17] 06926 Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 1202860 Washer, Flat, 0.17b 0.31d .03, Nyl 1210399 Stand- Off, Circuit Board [0.25”] 383723 Circuit Breaker, 20.0a, Resettable...
  • Page 11 11. Remove the pan screws holding the control 18. Carefully remove the electrical enclosure panel to the front shroud and set the cover from the electrical enclosure and hardware aside. (Fig. 6) position the electrical enclosure cover out of the way. Do Not break or damage wires / wire 12.
  • Page 12 26. Reconnect the battery cable to the machine. 27. Start the machine, place machine into configuration mode, and reconfigure the machine for the sweeping side brush(es). Refer to the T17 Service Manual for instructions / information for accessing configuration mode and reconfiguring the machine.
  • Page 13 FIG. 11 - Sweeping Side Brush Wire Harness Group - Must Be Factory Installed IB 9012969 (07- 2016)
  • Page 14 FIG. 12 - Machine Main Wire Harness CAN BUS Lead IB 9012969 (07- 2016)
  • Page 15 FIG. 13 - Schematic TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 9012969 (07- 2016)
