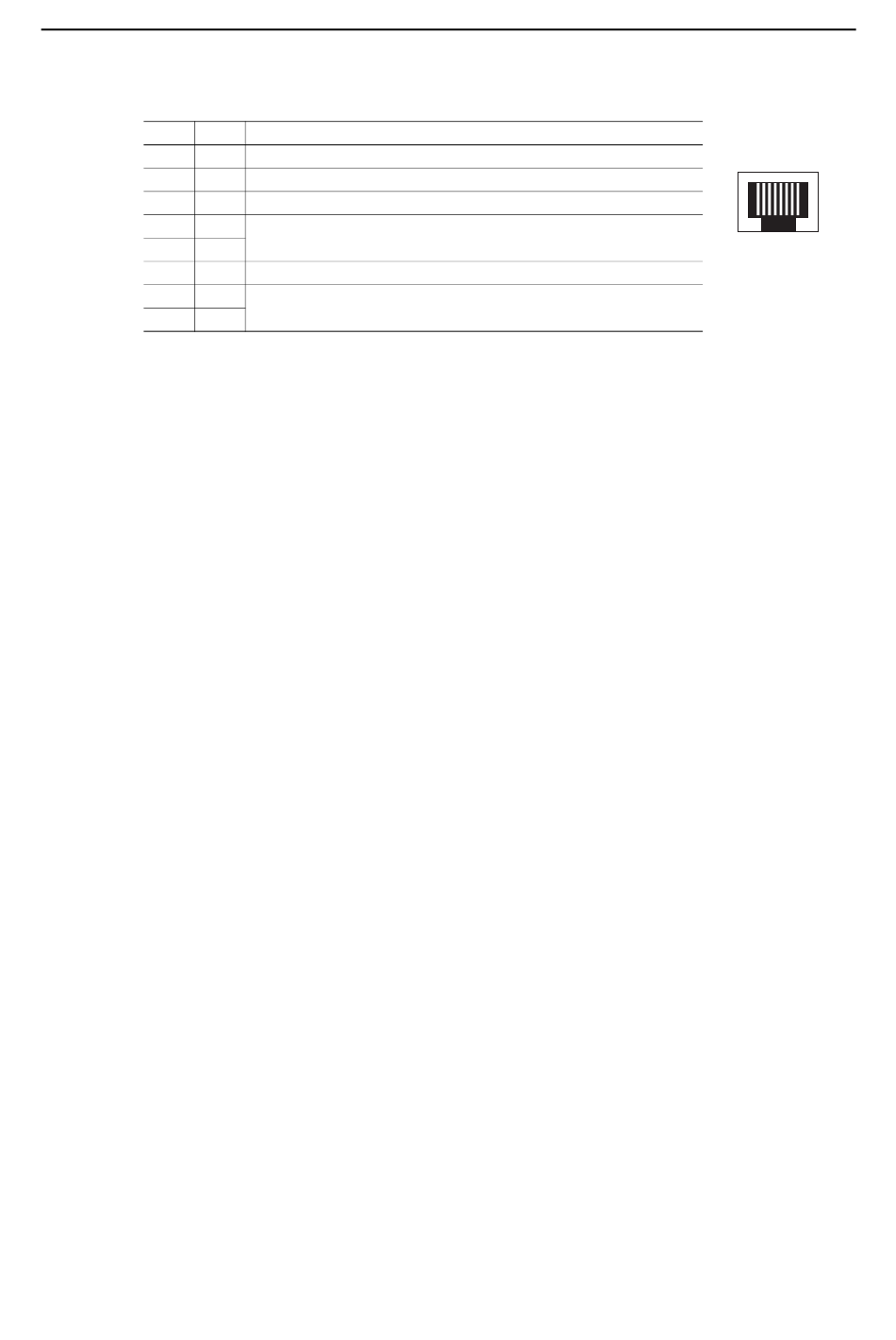

EtherCAT Connector Pinout
Pin
Signal Notes
1
TD+
-
2
TD-
-
3
RD+
-
4
-
Normally left unused; to ensure signal integrity, these pins are internally tied
together and terminated to PE via a filter circuit.
5
-
6
RD-
-
7
-
Normally left unused; to ensure signal integrity, these pins are internally tied
together and terminated to PE via a filter circuit.
8
-
Technical Specification A-2
1
8
