B-Tech BT9901 Installation Manual & Parts List

Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions........................................................................................................................5
Product Dimensions................... ........................................................................................................7
B-Tech Contact Details.......................................................................................................................8
INSTALLATION TOOLS REQUIRED
Crosshead screwdriver
Spanner

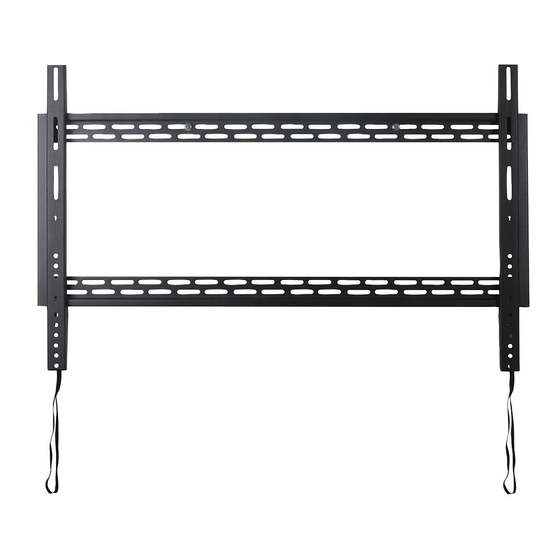

B-TECH AUDIO VIDEO MOUNTS
BT9901
X-LARGE
FLAT SCREEN WALL MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE
CONTENTS
www.btechavmounts.com
FEATURES
• Designed for extra-large screens up to
100" (254cm) / 100kg (220lbs)
• Universal screen interface fits screens with VESA
mounting patterns up to: H: 900mm x V: 600mm
• Simple "hook-on" installation
• All mounting hardware and fixings included
100kg
(220Ibs)
Drill
Drill Bit
100"
900
x
(254cm)
600
Pencil
