REG DESIGN NO: 3021678
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
8mm (5/16") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
BT7525

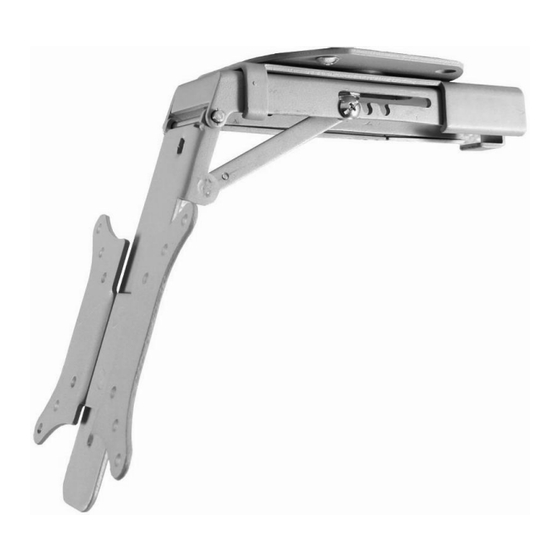

UNDER CABINET SMALL FLAT SCREEN MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Drill
Crosshead
screwdriver
www.btechavmounts.com
FEATURES
●
Designed for flat screens up to 17" (43cm) / 10kg (22lbs)
●
Fits 50 x 50mm, 75 x 75mm and 100 x 100mm
VESA mounting patterns
●
Mounts flat screens under cabinets and shelves
- ideal for use in the kitchen
●
Slide-out and flip-down action
●
Tilts +/-15° from vertical and swivels 360°
●
Minimum cupboard thickness is 15mm (0.6")
●
Simple installation with all mounting hardware included
●
Additional separate interface for cupboards with pelmets
3mm (1/8") wood bit
Pencil
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech mountlogic BT7525
Summary of Contents for B-Tech mountlogic BT7525
-
Page 1: Table Of Contents
REG DESIGN NO: 3021678 CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED Pencil 8mm (5/16") spanner Stud finder Drill Crosshead 3mm (1/8") wood bit or socket (optional) screwdriver B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT7525 PARTS LIST MOUNT ASSEMBLY Suitable for loads up to 10kg (22lbs) - Page 5 PART NAME MOUNTING PLATE OUTER SECTION M8 PLASTIC WASHER M8 NYLOC NUT INNER SECTION ADJUSTMENT ARM PIVOT SCREW E-CLIP M5 x 15mm SCREW M5 x 3mm SPACER M5 HANDWHEEL TILT BAR M3 x 8mm SCREW M5 NYLOC NUT M5 WASHER LOW PROFILE INTERFACE KIT HIGH PROFILE INTERFACE KIT M2.5 HEX KEY...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Slide the inner section back (part 5), then tighten the handwheel (part 11) to fix the extended postion. Adjust arm position by pushing down on tilt bar (part 12) and pulling the adjustment arm (part 6) to an upright position. - Page 7 Remove the interface plate from the tilt arm. Fix the mount to the underside of a cabinet. 15mm (0.6") Minimum CABINET Ensure the depth is more than the depth of the flat screen. The wood screws are only suitable for mounting to solid wood or boards such as chipboard or MDF at least 15mm (0.6") thick.
- Page 8 a) Choose a suitable interface. i. Cabinet without pelmet ii. Cabinet with pelmet b) Attach a suitable interface to the flat screen. FLAT SCREEN...
- Page 9 FLAT SCREEN Attach the screen to the mount. CABINET FLAT SCREEN...
- Page 10 To tilt the flat screen, push the tilt bar (part 12) upward and move the screen to the desired angle. To swivel mount, turn flat screen. ° SWIVEL ° FLAT SCREEN ° +/- 15 OPTIONAL - Store away Push tilt bar upward (part 12), push flat screen into store away position then slide until you are able to tighten the handwheel (part 11).
-
Page 11: Product Dimensions
INTERFACE PLATE CEILING PLATE 100mm 3.9" 72mm 2.8" 75mm 5.5mm 3" 0.2" 50mm 2" 100mm 115mm 3.9" 4.5" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
©2009 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
