Kessel 80888 Quick Start Manual

Replacement Probe + Adaptor Article Number 80888)
For all Staufix Premium and Ecolift backwater valves / pumps for the following control units:: 80073, 28073, 80071, 28071, 21071
Please follow the safety and product information contained in the Installation and User's manual
Valid beginning Jan 2011
Contents of delivery

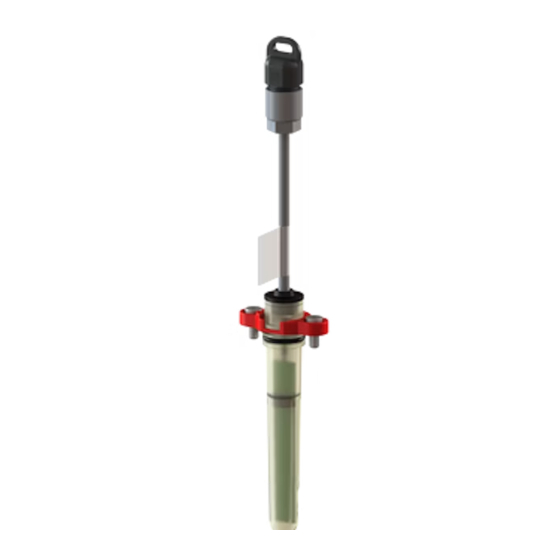

• When replacing the pump probe the red plastic adaptor must be properly connected (attached and turn a quarter turn counter clockwise). Also take the
small red sticker and stick it to the probe cable near the connection plug (see photos 1-3).
• When replacing the motor probe the black plastic adaptor must be connected (see photos 4-6)
Adaptor installation instructions:
• These raised tips prevent the
probe from being connected im-
properly and must always point
upward.
010-880 page 1
und Ersatz Sonden 80085, 80086, 80087, 80088
①
If required on-site (for example for conduit pipes, cable length changes, etc.)
Unscrew the Remove plug.
black connector.
② ③
Remove any
residue.
④ ⑤
Restrip cables. Insert cables until they
contact back of plug.
08/2011
⑥
Continued page 2
