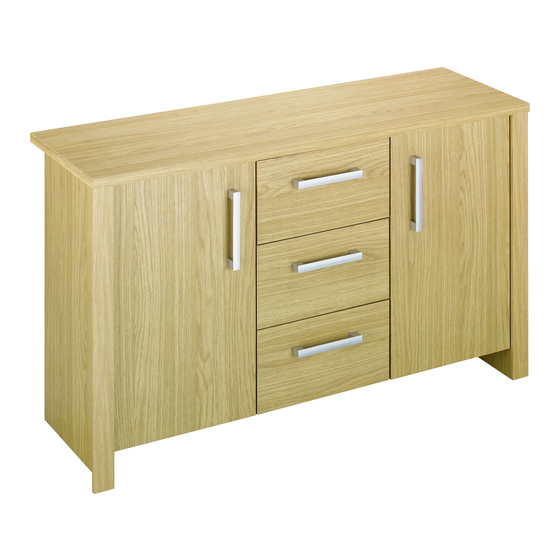

2 Door 3 Drawer Sideboard
Assembly Instructions
041 xx 3046
- Please keep for future reference
Dimensions
Width - 121.8cm
Depth - 38.8cm
Height - 74.2cm
MADE IN
GREAT BRITAIN
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967
Please turn to back page for important information when contacting Customer Helpline.
Rev A - 21/11/12
