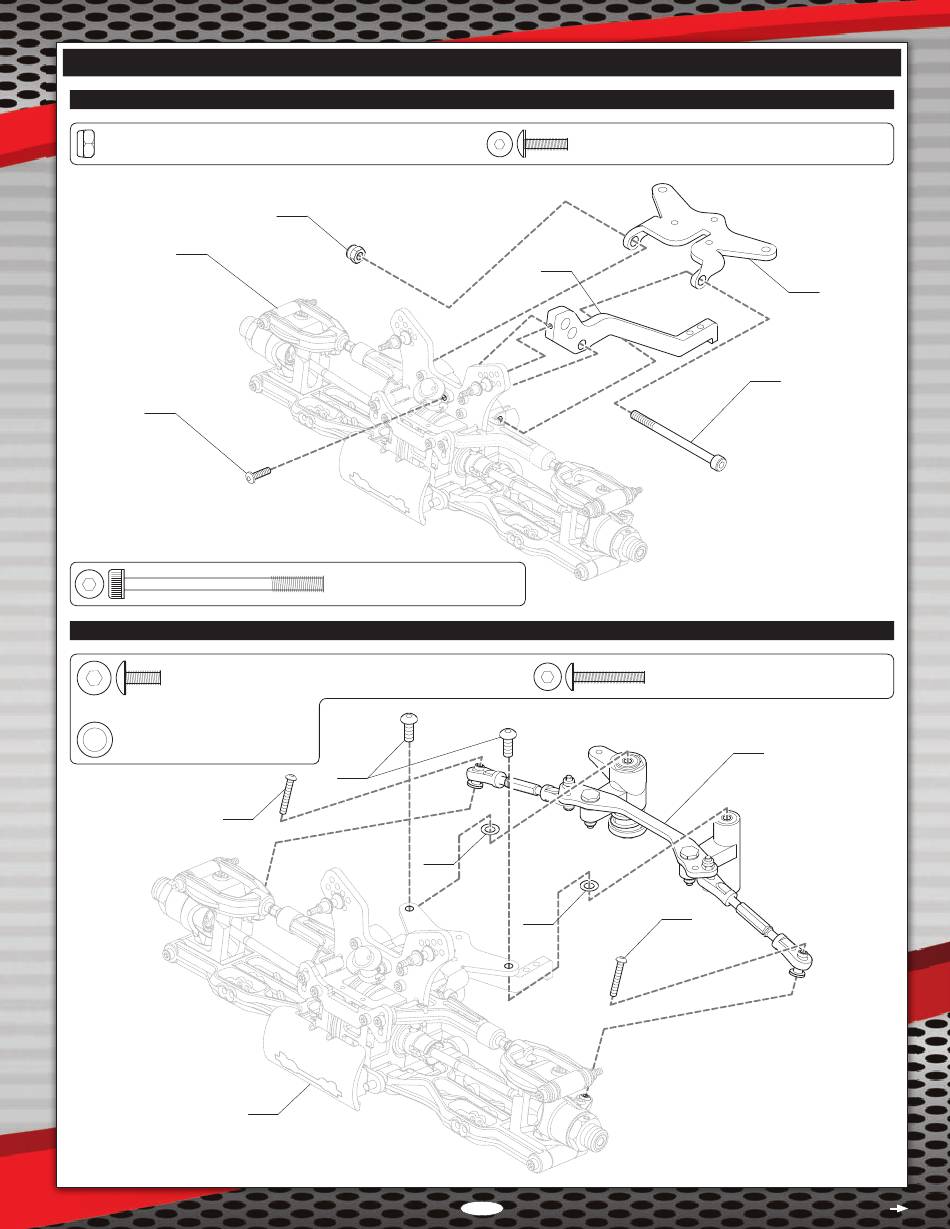

ExpLODED vIEW ASSEmBLY DRAWINGS
STEP 29: FRONT CHASSIS BRACE
(148559) Lock Nut 4mm -- 1
(148634) Button Head Screw 3 x 12mm -- 1
148559
Step 9
149273
149286
148651
148634
(148651) Cap Screw 4 x 55mm -- 1
STEP 30: FRONT CHASSIS BRACE
(148627) Button Head Screw 3 x 20mm -- 2
(148637) Button Head Screw w/Threadlock 4 x 10mm -- 2
(148621) Shim 6 x 9.8 x 0.1mm -- 2
Step 28
148637
148627
148621
148627
148621
Step 29
Continued On Next Page
