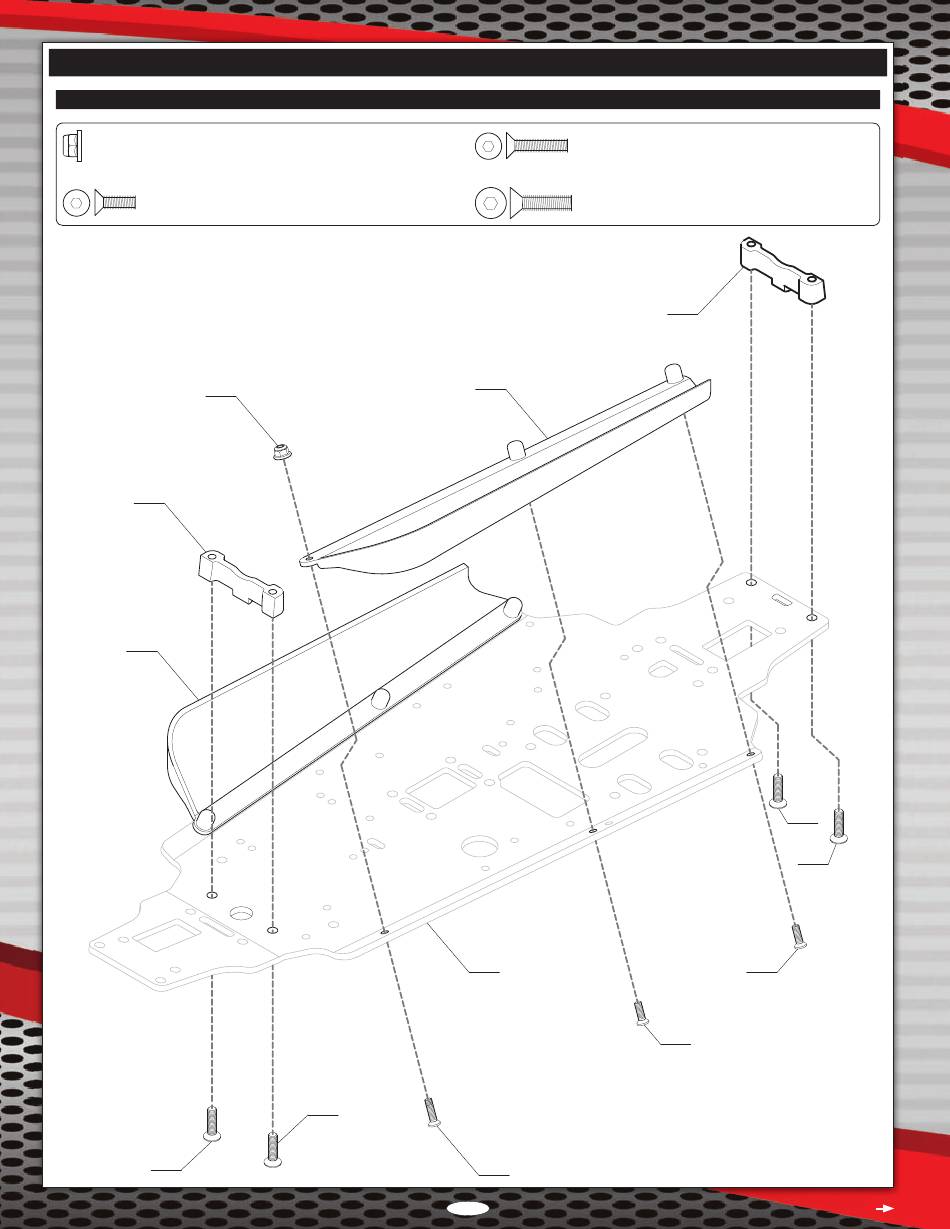

ExpLODED vIEW ASSEmBLY DRAWINGS
STEP 19: CHASSIS GUARDS
(148560) Flanged Lock Nut 3mm -- 1
(148641) Flat Head Screw 3 x 12mm -- 1
(148640) Flat Head Screw 3 x 10mm -- 5
(148646) Flat Head Screw 4 x 15mm -- 4
149894
149429
148560
for left side
149894
149429
for right side
148646
148646
149264
148640
148640
148646
148646
148641
Continued On Next Page
Page 30
