XTM Racing X-Terminator 2e Operating Manual And Assembly Manual page 26

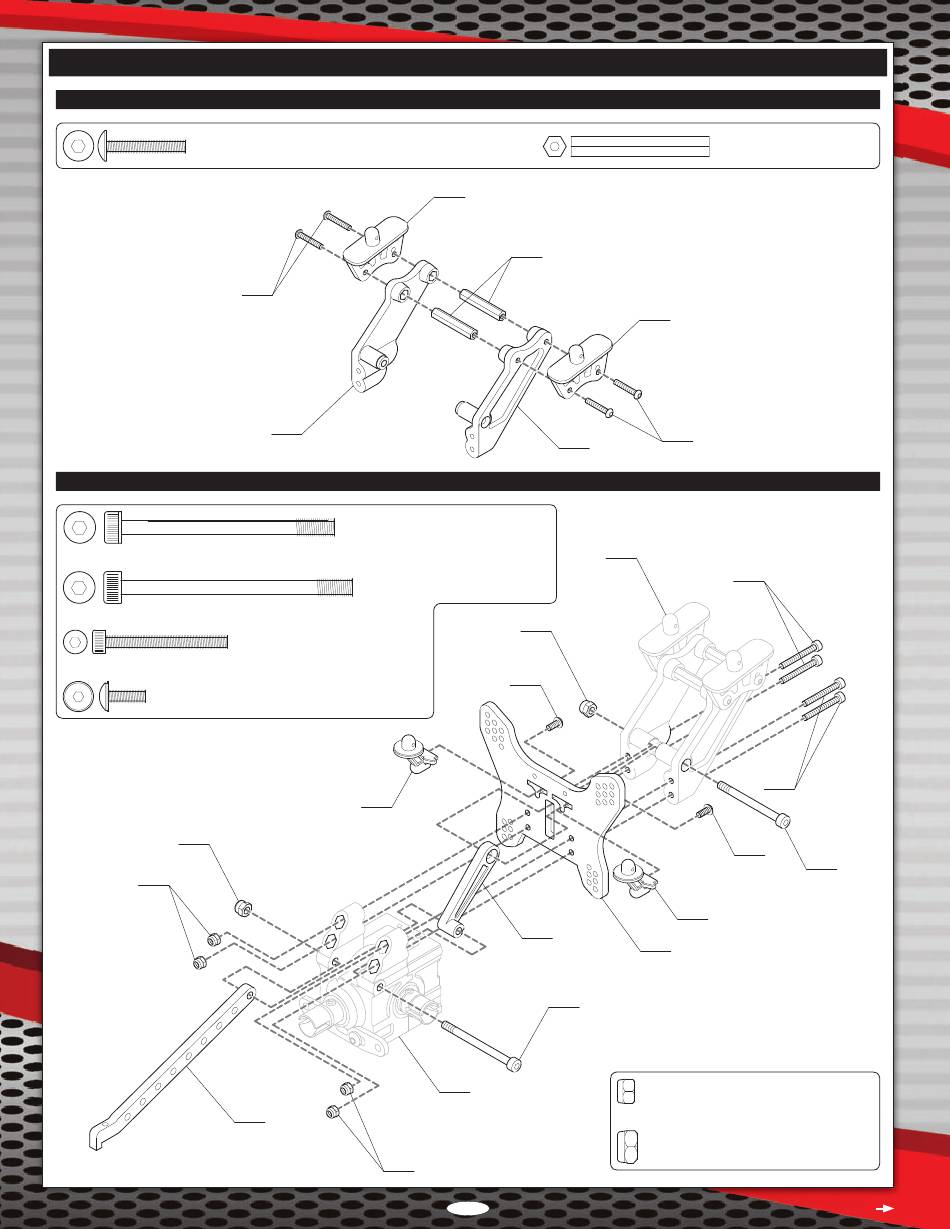

ExpLODED vIEW ASSEmBLY DRAWINGS
STEP 11: WING MOUNT
(148635) Button Head Screw 3 x 18mm -- 4 (149271) Post 6 x 32mm -- 2
149271
149271
148635
149271
149271
148635
149271
STEP 12: REAR SHOCK TOWER
(148649) Cap Screw 4 x 45mm -- 1
Step 11
148511
(148507) Cap Screw 4 x 50mm -- 1
148559
(148511) Cap Screw 3 x 25mm -- 4
148632
(148632) Button Head Screw 3 x 10mm -- 2
148511
149272
148559
148632
148649
148558
149272
149907
149342
148507
Step 10
(148558) Lock Nut 3mm -- 4
149274
(148559) Lock Nut 4mm -- 2
148558
Continued On Next Page
Page 26
