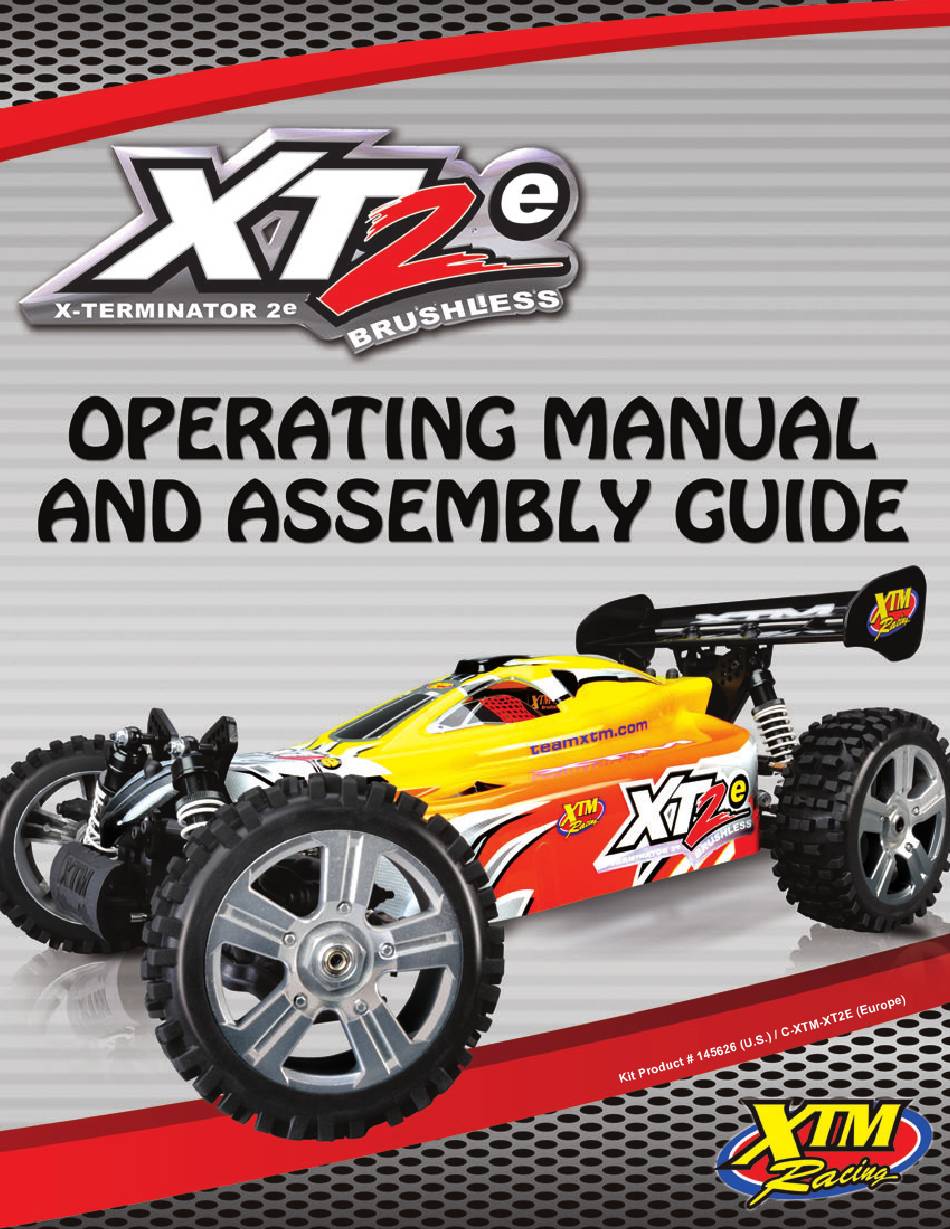

  • Page 1 Page 1...

  • Page 2: Table Of Contents

    1/8th scale brushless-powered buggy that offers both the casual user and the racer tremendous value. Whether it's racing on the track or just bashing in a field, the X-Terminator 2e is ready to tear up the terrain and carve through the curves with ease.

  • Page 3: Customer Service Information

    In that XTM Racing has no control over the final assembly or material used for final assembly, no liability shall be assumed for any damage resulting from the use by the user of the final user-assembled product. By the act of using the final user-assembled product, the user accepts all resulting liability.

  • Page 4: Lithium Polymer (Li-Po) Battery General Warnings

    CONTENTS After opening your X-Terminator 2e, remove all of the parts from the box and double-check that you have all of the items listed below. If you find a part is missing or damaged, please contact your regional distributor, using the Customer Service Information on page 3.

  • Page 5: Items Required To Operate And Maintain

    ESC programming card. n Battery Requirements The X-Terminator 2e can be powered using either one battery pack or two battery packs wired in series. You can use either Ni-Cd, Ni-MH, or Li-Po battery packs.

  • Page 6: Becoming Familiar With Your X-Terminator 2E

    Battery Holder: Moulded out of impact-resistant nylon plastic, the battery holder firmly holds the battery pack that powers the X-Terminator 2e. The battery holder is sized to fit most 6 cell Ni-Cd or Ni-MH battery packs and 2 ~ 4S Li-Po battery packs.

  • Page 7: Brushless Power System Overview

    For more information, see page 9. The motor used in the X-Terminator 2e is a sensorless brushless motor. Therefore, the Sensor input on the ESC is not utilised. The motor leads from the ESC can be plugged into any of the motor leads from the motor without issue. If the motor runs backwards, swap two of the motor leads and the motor will run in the correct direction (counter-clockwise).

  • Page 8: Tips From The Pros

    If you prefer to change the connectors, make sure to observe correct polarity and use heat-shrink tubing to insulate the solder joints. Always make sure that you install the body shell when driving your X-Terminator 2e. If your X-Terminator 2e flips over, the body shell will help protect the chassis and its components.

  • Page 9: Battery Pack Installation And Power Connections

    TO RUN YOUR x-TERmINATOR 2e n Battery Pack Installation and Power Connections q Verify that the ESC On/Off switch is turned 'OFF'. To ensure your safety, it's important that the ESC be turned 'OFF' when connecting your battery pack(s).

  • Page 10: Checking The Steering And Throttle Controls

    This will ensure your safety and the safety of your model while testing the throttle control. If your X-Terminator 2e features a 2.4GHz radio control system, your transmitter and receiver have already been paired and should work correctly.

  • Page 11: Using The Esc Programming Card

    The ESC programming card can be powered by separate battery pack, or by the X-Terminator 2e's motor batteries for use at the track. In addition, all of the programming information is printed on the ESC programming card for the utmost in convenience.
  • Page 12 TO RUN YOUR x-TERmINATOR 2e n Using the ESC Programming Card, Continued..Powering the ESC Programming Card from the Motor Battery If desired, the ESC programming card can be powered directly from the motor battery. For your safety and the safety of others, prior to making any programming changes to the electronic speed controller using the ESC programming card, we strongly suggest removing the pinion gear from the motor.

  • Page 13: Installing The Body

    PRO TIP: Always make sure that you install the body shell when driving your X-Terminator 2e. If your X-Terminator 2e flips over, the body shell will help protect the chassis and its components.

  • Page 14: Chassis Tuning Guide

    Adjusting Gearing The X-Terminator 2e features a 13T pinion gear that will work well on a decent size track. If you're racing your X-Terminator 2e, you will probably want to experiment with different pinion gears. In general, using a smaller pinion gear (12T) will result in quicker acceleration, but slower top speed, and using a larger pinion gear (14T) will result in faster top speed, but slower acceleration.

  • Page 15: Adjusting Camber Angle - Front And Rear

    How you drive your X-Terminator 2e will dictate what settings you should be using. As an example, if you're driving your X-Terminator 2e off-road and going over lots of jumps, you may want to increase the spring tension of the front shocks to help prevent the front of the X-Terminator 2e from bottoming out.

  • Page 16: Changing Shock Springs - Front And Rear

    If the area where you drive your X-Terminator 2e is very bumpy, you might consider using softer springs to help absorb the bumps. If the area is bumpy and you use harder springs, the X-Terminator 2e will have a tendency to jump and hop around. The shock springs included with the X-Terminator 2e are suitable for most general off-road applications.

  • Page 17: Adjusting Bump Steer - Front

    Adjusting Steering Sensitivity - Front You can adjust your X-Terminator 2e's steering sensitivity by tightening or loosening the servo saver spring. In general, tightening the servo saver spring will cause the steering to be more responsive, and loosening the servo saver spring will cause the steering to be less responsive.

  • Page 18: Adjusting The Differentials - Front, Centre, And Rear

    Using a heavier weight oil will provide a more even amount of power to the front and rear. On loose tracks, this can cause the X-Terminator 2e to be too 'squirrely' (uncontrollable) or cause the rear end to slide out. For this reason, we only suggest using heavier oil if you're driving on a high-traction surface.

  • Page 19: Maintenance Guide

    GUIDE Following a simple maintenance schedule will ensure that your X-Terminator 2e operates in top condition every time you use it. It is strongly recommended. Check the chassis for any loose screws, especially the motor pinion gear and the differential pinion output joint grub screws. Tighten them if necessary.

  • Page 20: Troubleshooting Guide

    If you cannot solve a problem using this Troubleshooting Guide, please contact your regional distributor, using the Customer Service Information on page 3. For troubleshooting information related to the radio control system included with your X-Terminator 2e, please refer to the separate radio control system Operating Manual.

  • Page 21: Exploded View Assembly Drawings

    ExpLODED vIEW ASSEmBLY DRAWINGS STEP 1: FRONT, REAR AND CENTRE DIFFERENTIALS 149893 149893 (149899) O-Ring 3x1mm -- 12 (149895) Pin 2.5x12.8mm -- 6 149899 149899 (149895) Pin 4x26.6mm -- 6 149563 149563 148623 148602 148623 148602 148602 148602 149895 149895 149895 149895 149895...
  • Page 22 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 3: FRONT AND REAR DIFFERENTIAL HOUSINGS 148593 (148593) Round Head Tapping Screw 2 x 10mm -- 8 149778 (148572) Grub Screw w/Threadlock 5 x 4mm -- 2 Step 1 (149563) Ball Bearing 8 x 16 x 5mm -- 2 148593 Step 2 148572...
  • Page 23 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 5: FRONT SHOCK TOWER (148558) Lock Nut 3mm -- 4 148558 148511 148558 (148632) Button Head Screw 3 x 10mm -- 1 (148506) Cap Screw 3 x 16mm -- 4 148632 (148511) Cap Screw 3 x 25mm -- 2 148511 149307 148506...
  • Page 24 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 7: FRONT UPPER SUSPENSION ARMS (149491) Turnbuckle 5 x 25mm -- 2 149491 149292 10.2mm 149292 for right and left sides (x2) STEP 8: FRONT LOWER SUSPENSION ARMS AND AXLES 149499 149489 Step 6 149499 148647 for right side 148558...
  • Page 25 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 9: FRONT SUSPENSION (148558) Lock Nut 3mm -- 2 (149901) Hinge Pin 4 x 67.2mm -- 2 (148638) Button Head Screw w/Threadlock 4 x 12mm -- 2 (148650) Cap Screw 3 x 42mm -- 2 Step 5 148558 148638...
  • Page 26 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 11: WING MOUNT (148635) Button Head Screw 3 x 18mm -- 4 (149271) Post 6 x 32mm -- 2 149271 149271 148635 149271 149271 148635 149271 STEP 12: REAR SHOCK TOWER (148649) Cap Screw 4 x 45mm -- 1 Step 11 148511 (148507) Cap Screw 4 x 50mm -- 1...
  • Page 27 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 13: REAR UPPER SUSPENSION ARMS 149543 (149493) Turnbuckle 5 x 36mm -- 2 149493 149543 149497 for right and left sides (x2) 13.2mm 149497 STEP 14: REAR LOWER SUSPENSION ARMS AND HUBS (148648) Cap Screw 3 x 45mm -- 2 Step 13 (148511) Cap Screw 3 x 25mm -- 2 148511...
  • Page 28 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 15: REAR SUSPENSION (148511) Cap Screw 3 x 25mm -- 2 (148560) Flanged Lock Nut 3mm -- 2 (148509) Cap Screw 3 x 20mm -- 2 (148638) Button Head Screw w/Threadlock 4 x 12mm -- 2 (149901) Hinge Pin 4 x 67.2mm -- 2 149307 148511...
  • Page 29 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 17: REAR SWAY BAR (148566) Grub Screw w/Threadlock 3 x 3mm -- 2 (148641) Flat Head Screw 3 x 12mm -- 4 (148570) Grub Screw 4 x 4mm -- 2 (148644) Flat Head Screw 3 x 20mm -- 2 148641 148570 right side...
  • Page 30 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 19: CHASSIS GUARDS (148560) Flanged Lock Nut 3mm -- 1 (148641) Flat Head Screw 3 x 12mm -- 1 (148640) Flat Head Screw 3 x 10mm -- 5 (148646) Flat Head Screw 4 x 15mm -- 4 149894 149429 148560...
  • Page 31 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 20: BATTERY TRAY INSTALLATION (148639) Flat Head Screw w/Threadlock 3 x 8mm -- 6 right side Step 18 Step 18 left side Step 19 148639 148639 148639 148639 148639 Continued On Next Page Page 31...
  • Page 32 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 21: STEERING SERVO (148632) Button Head Screw 3 x 10mm -- 6 148632 148632 150038 ST-CH1 148632 149884 148632 STEP 22: STEERING SERVO MOUNTING (148640) Flat Head Screw 3 x 10mm -- 4 Step 21 Step 20 148640 148640...
  • Page 33 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 23: BRAKE PLATE AND CENTRE DIFFERENTIAL (148636) Button Head Screw 3 x 25mm -- 2 148636 149282 149281 149281 Step 1 STEP 24: MOTOR MOUNTING (148570) Grub Screw w/Threadlock 4 x 4mm -- 1 (148527) Button Head Screw w/Threadlock 3 x 12mm -- 4 149859 148570 150033...
  • Page 34 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 25: Electronic speed controller MOUNTING (148640) F/H Machine Screw 3x10mm -- 2 148640 145652 Double-Sided Tape 150034 Step 23 Step 24 Continued On Next Page Page 34...
  • Page 35 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 26: POWER SYSTEM MOUNTING (148645) Flat Head Screw w/Threadlock 4 x 10mm -- 2 (148646) Flat Head Screw 4 x 15mm -- 2 Blue Black Yellow Orange Yellow Step 25 Step 22 148645 148646 Continued On Next Page Page 35...
  • Page 36 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 27: STEERING TIE-RODS 149731 149549 29mm 149549 149331 for right and left sides (x2) 149731 STEP 28: SERVO SAVER AND STEERING LINKAGES (148558) Lock Nut 3mm -- 4 (149567) Bushing 6 x 10 x 3mm -- 4 (148625) Shim 8 x 12 x 0.8mm -- 2 (149559) Flanged Ball Bearing 5 x 8 x 2.5mm -- 2 (148509) Cap Screw 3 x 20mm -- 2...
  • Page 37 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 29: FRONT CHASSIS BRACE (148559) Lock Nut 4mm -- 1 (148634) Button Head Screw 3 x 12mm -- 1 148559 Step 9 149273 149286 148651 148634 (148651) Cap Screw 4 x 55mm -- 1 STEP 30: FRONT CHASSIS BRACE (148627) Button Head Screw 3 x 20mm -- 2 (148637) Button Head Screw w/Threadlock 4 x 10mm -- 2 (148621) Shim 6 x 9.8 x 0.1mm -- 2...
  • Page 38 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 31: FRONT SUSPENSION MOUNTING (148558) Lock Nut 3mm -- 2 (148643) Flat Head Screw 3 x 16mm -- 2 (148645) Flat Head Screw w/Threadlock 4 x 10mm -- 2 (148646) Flat Head Screw 4 x 15mm -- 6 Step 30 148558 150036...
  • Page 39 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 32: REAR SUSPENSION MOUNTING (148558) Lock Nut 3mm -- 1 (148646) Flat Head Screw 4 x 15mm -- 4 (148643) Flat Head Screw 3 x 16mm -- 1 Step 17 148558 149501 Step 31 148646 148646 148646 148643...
  • Page 40 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 33: RECEIVER AND RECEIVER BOX MOUNTING (148639) Flat Head Screw w/Threadlock 3 x 8mm - 2 (150037) Post 3 x 19mm -- 2 (148611) Button Head Screw 3 x 16mm -- 2 150037 148611 148611 Receiver 150037 150037...
  • Page 41 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 34: FRONT AND REAR SHOCKS (149840) Shock Shaft 3.5 x 52mm -- 2 (149840 / 149841) Lock Nut 2.6mm -- 4 (149841) Shock Shaft 3.5 x 61mm -- 2 (149840 / 149841) Washer 2.5x5.9x0.5mm -- 4 (149846) Shock Body 14 x 45mm -- 2 (149840 / 149841) O-Ring 2.5 x 1mm -- 4 (149850) O-Ring 3mm -- 4...
  • Page 42 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 35: SHOCK OIL silicone shock oil (Not Included) 149850 After filling with 149846 shock oil, gENtly 149847 Pump shaft up and down several times to Eliminate Air Bubbles. for front and rear (x4) STEP 36: SHOCK SPRINGS (149352) Shock Spring 58 x 1.5mm (White) -- 2 (149366) Shock Spring 80.5 x 1.5mm (White) -- 2 Step 35...
  • Page 43 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 37: FRONT SHOCK MOUNTING (148560) Flanged Lock Nut 3mm -- 2 (148644) Flat Head Screw 3 x 20mm -- 2 148560 Step 36 149347 left side right side Step 33 148644 STEP 38: REAR SHOCK MOUNTING (148560) Flanged Lock Nut 3mm -- 2 (148644) Flat Head Screw 3 x 20mm -- 2 149347...
  • Page 44 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 39: STEERING LINKAGE (148558) Lock Nut 3mm -- 1 (148560) Flanged Lock Nut 3mm -- 1 (149333) Threaded Stud 3 x 16mm -- 1 (148634) Button Head Screw 3 x 12mm -- 1 (148635) Button Head Screw 3 x 18mm -- 1 148634 149333 149731...
  • Page 45 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 40: BATTERY MOUNTING Ni-MH Battery (6C) Li-Po Battery (2S) 150039 Ni-MH Battery (6C) Li-Po Battery (2S) Step 39 Continued On Next Page Page 45...
  • Page 46 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 41: BATTERY AND RECEIVER CONNECTIONS Ni-MH Battery (6C) Li-Po Battery (2S) Brushless Motor NEG- POS+ NEG- NEG- POS+ POS+ Ni-MH Battery (6C) Li-Po Battery (2S) Red (Positive) Black (Negative) White (Neutral) CH 1 CH 2 CH 3 BATT Brushless ESC...
  • Page 47 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 42: ANTENNA SUPPORT TUBE Antenna Support Tube slide the Antenna through the Antenna support tube, then Push the Antenna support tube into the Antenna mount in the top of the receiver Box. do Not cut any Excess Antenna wire shorter.
  • Page 48 ExpLODED vIEW ASSEmBLY DRAWINGS STEP 44: WHEELS, BODY AND WING MOUNTING (149303) Wheel Nut 17mm -- 4 149323 149319 149953 149321 149522 Step 43 149303 right side Step 43 Step 43 left side Step 42 149303 Step 43 Page 48...

  • Page 49: Replacement Parts List

    REpLACEmENT pARTS LIST We stock a complete set of replacement parts for your X-Terminator 2e. The replacement parts that are available, along with their respective part numbers for easy ordering convenience, are illustrated in this section. When it comes time to order replacement parts, we recommend ordering directly from your local hobby retailer.
  • Page 50 REpLACEmENT pARTS LIST 2.8mm Qty. 2 L=43mm Qty. 2 Qty. 2 149291 149292 149293 149301 Suspension Arms - Lower Rear Suspension Arms - Upper Front Sway Bar Set Rear Wheel Shafts Qty. 4 Qty. 2 17mm/Silver Qty. 4 L=14.2mm Qty. 4 149303 149305 149307...
  • Page 51 REpLACEmENT pARTS LIST Qty. 2 Qty. 2 Qty. 2 L=25mm Qty. 2 L=36mm 149483 149489 149493 149491 Rear Hubs - Right and Left Front Hub Carriers - Right and Left Turnbuckles 5mm - Upper Rear Turnbuckles 5mm - Upper Front Qty.
  • Page 52 REpLACEmENT pARTS LIST 3.5mm/L=53mm L=74mm 149847 149850 149859 149884 Shock Body Set - Rear Shock Rebuild Kit for 3.5mm Shafts Brushless Motor Heat-Sink Steering Servo Mount Set Qty. 2 Qty. 2 149893 149894 149895 149897 Differential & Brake Output Joints Suspension Holder Supports Differential Assembly - Bevel Type Differential Ring Gear - 43T...
  • Page 53 REpLACEmENT pARTS LIST Qty. 2 L=93mm 3mm/6061 150035 150036 150037 150038 Differential Assembly - Centre 46T Dog Bones - Centre Front Receiver Box Steering Servo Plate Qty. 2 Qty. 2 Qty. 2 Qty. 2 150052 150039 150050 150051 Tyres and Wheels - Mounted Battery Retaining Straps Blade Wheels - Satin Chrome Rally Cross Tyres with Inserts...

  • Page 54: Option Parts List

    Qty. 10 OpTION pARTS LIST We stock many option parts for your X-Terminator 2e. The option parts that are available, along with their respective part numbers for easy ordering convenience, are illustrated in this section. When it comes time to order option parts, we recommend ordering directly from your local hobby retailer.
  • Page 55 OpTION pARTS LIST n 100% Silcone Oils (For Tuning Differentials and Shocks) 146810 146811 146812 146813 Silicone Differential Oil - 10K Wt. Silicone Differential Oil - 30K Wt. Silicone Differential Oil - 50K Wt. Silicone Differential Oil - 70K Wt. 146814 146815 149570...
  • Page 56 OpTION pARTS LIST n Hardened (7075) Aluminium, Titanium and Carbon Fibre Parts (Improves Durability and Appearance), Continued..Front or Rear Replaces 149916 Replaces 149453 Replaces 149285 Qty. 2 Replaces 149483 149400 149454 149458 149484 Lower Suspension Plate (7075) Servo Saver (7075) w/Bearings Steering Plate - 4mm (7075) Rear Hubs (7075) Qty.
  • Page 57 OpTION pARTS LIST n Wheels and Tyres (Affects Handling and Appearance), Continued..Qty. 2 Qty. 2 Qty. 2 Qty. 2 149869 150053 150054 150057 Dish Wheels - White Blade Wheels - Black Blade Wheels - White Clawz Wheels - White Qty.
  • Page 58 OpTION pARTS LIST n General Options and Tools, Continued..Qty. 4 Qty. 2 17mm/Blue 149306 149304 149520 149521 Hex Hubs - Front or Rear Wheel Nuts - 17mm/Blue Bi-Level Wing - White Bi-Level Wing - Yellow Qty. 4 149554 149556 149558 149598 Bi-Level High Downforce Wing - Black...

  • Page 59: Returning Your Product For Warranty Repair

    If your X-Terminator 2e is out of the warranty period you may request an estimate of services at the time you return it for service. An omission of this request implies permission for Global Services/Ripmax Ltd.
  • Page 60 Features and Specifications are Subject to Change Without Notice. All contents © 2010 XTM Racing and Global Hobby Distributors All Rights Reserved. Revision 2-08.30.2010 Page 60...
