XTM Racing X-Terminator 2e Operating Manual And Assembly Manual page 24

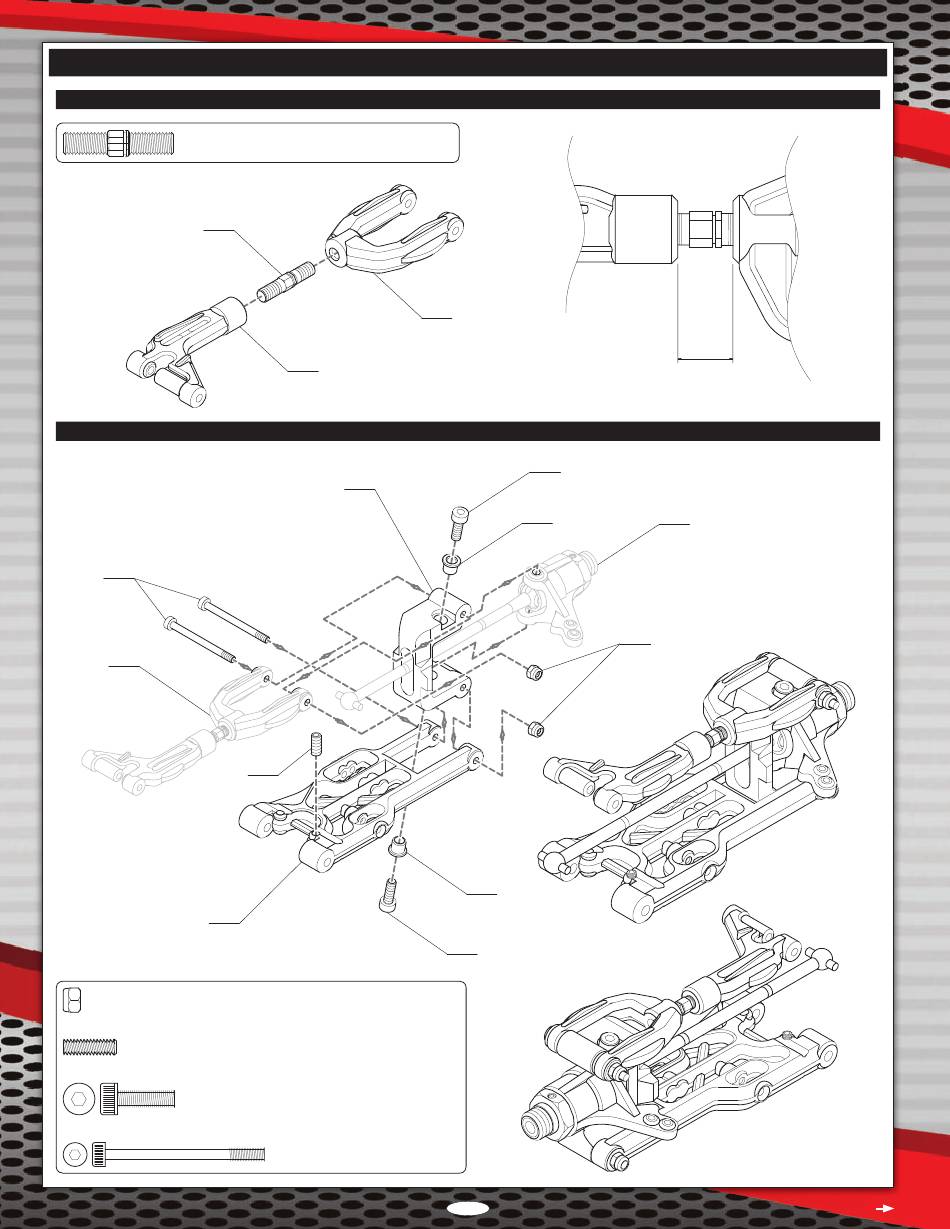

ExpLODED vIEW ASSEmBLY DRAWINGS
STEP 7: FRONT UPPER SUSPENSION ARMS
(149491) Turnbuckle 5 x 25mm -- 2
149491
STEP 8: FRONT LOWER SUSPENSION ARMS AND AXLES
148647
Step 7
149289
(148558) Lock Nut 3mm -- 4
(148567) Grub Screw 4 x 10mm -- 2
(149499) Cap Screw w/Threadlock 4 x 12mm -- 4
149292
149292
for right and left sides (x2)
149489
148567
(148647) Cap Screw 3 x 40mm -- 4
149499
149499
148558
149499
149499
finished
Page 24
10.2mm
Step 6
for right side
for left side
Continued On Next Page
