XTM Racing X-Terminator 2e Operating Manual And Assembly Manual page 36

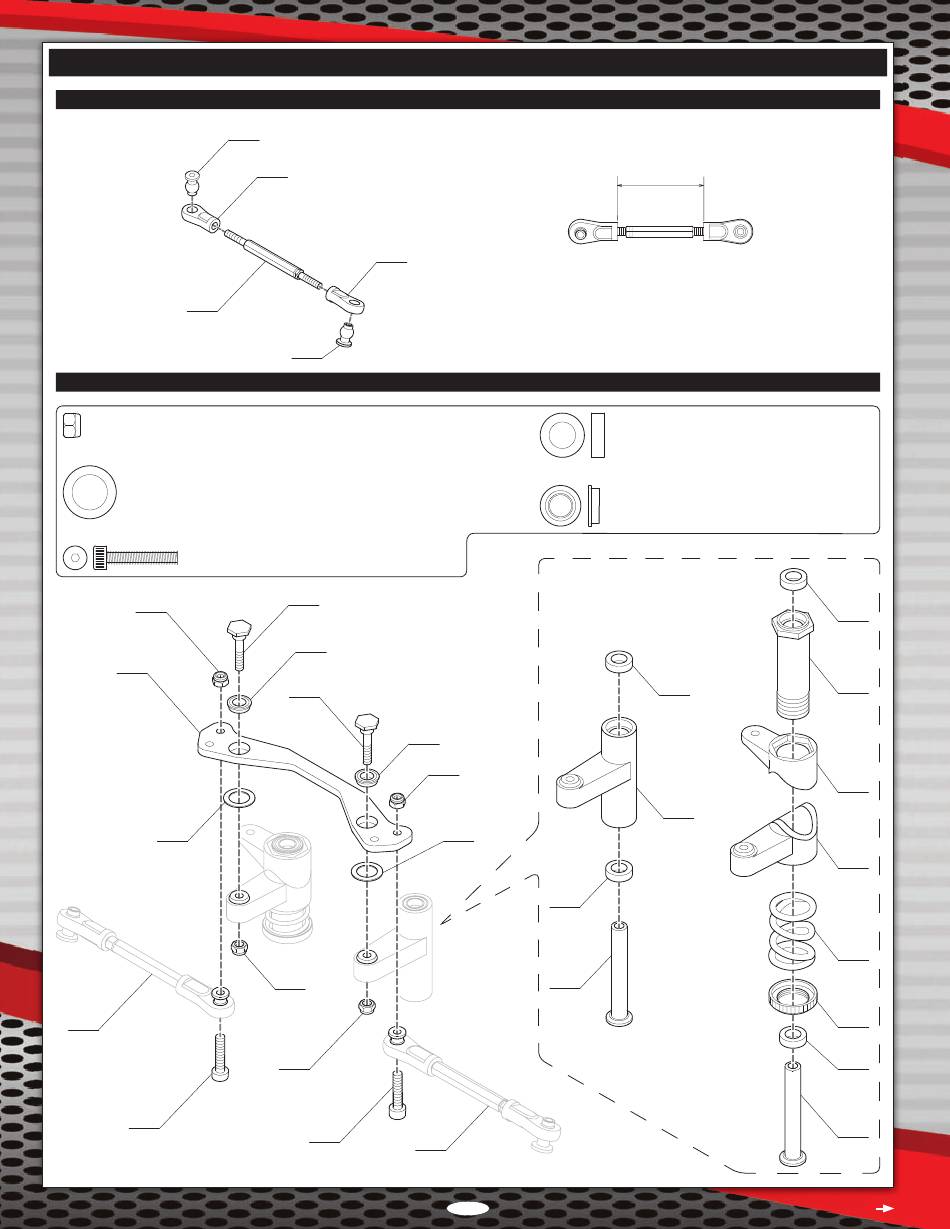

ExpLODED vIEW ASSEmBLY DRAWINGS
STEP 27: STEERING TIE-RODS
149731
149331
STEP 28: SERVO SAVER AND STEERING LINKAGES
(148558) Lock Nut 3mm -- 4
(148625) Shim 8 x 12 x 0.8mm -- 2
(148509) Cap Screw 3 x 20mm -- 2
148558
149285
148625
right side
Step 27
148509
149549
149549
for right and left sides (x2)
149731
149457
149559
149457
149559
148558
148558
148558
148509
Step 27
(149567) Bushing 6 x 10 x 3mm -- 4
(149559) Flanged Ball Bearing 5 x 8 x 2.5mm -- 2
148625
149567
149455
left side
Page 36
29mm
149567
149453
Continued On Next Page
149567
149455
149453
149453
149455
149455
149567
149455
