- Page 1 USER MANUAL Longo programmable controller LPC-2.CR2 Card Reader module Version 4 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0)5 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
- Page 2 Longo programmable controller LPC-2.CR2 Written by SMARTEH d.o.o. Copyright © 2016, SMARTEH d.o.o. User Manual Document Version: 004 June, 2016...
- Page 3 24 months is valid from the date of sale to the end buyer, but not more than 36 months after delivery from Smarteh. In case of claims within warranty time, which are based on material malfunctions the producer offers free replacement. The method of return of malfunctioned module, together with description, can be arranged with our authorized representative.
-
Page 4: Table Of Contents
Longo programmable controller LPC-2.CR2 Longo programmable controller LPC-2.CR2 1 ABBREVIATIONS................1 2 DESCRIPTION...................2 3 FEATURES..................3 4 OPERATION..................4 4.1 Parameters................4 5 INSTALLATION..................5 5.1 Connection scheme..............5 5.2 Mounting instructions..............7 5.3 Module labeling................8 6 TECHNICAL SPECIFICATIONS..............9 7 SPARE PARTS..................10 8 CHANGES ..................11 9 NOTES..................12... -
Page 5: Abbreviations
Longo programmable controller LPC-2.CR2 1 ABBREVIATIONS Sorted by order of appeareance in document: RFID Radio frequency identification Emergency call Light emitting diode Dual in-line package Identity... -
Page 6: Description
It is a tool, where various modules can be put together to a configuration, based on number and type of electrical signals needed. Smarteh IDE takes care for proper modules position. Latest Smarteh IDE setup can be downloaded from Smarteh web page support section: www.smarteh.si/Support/Downloads/Software/Development_tools... -
Page 7: Features

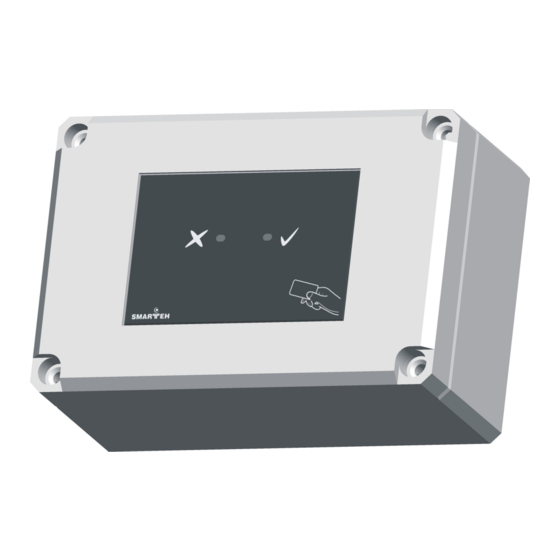

Longo programmable controller LPC-2.CR2 3 FEATURES Figure 1: LPC-2.CR2 module. Table 1: Technical data RFID reader OK “ √ ” LED Fault “ X ” LED Power LED Internal fault LED Internal built-in buzzer IP65 housing for outdoor mounting Black or white glass possibility... -
Page 8: Operation
Longo programmable controller LPC-2.CR2 4 OPERATION Operation of the CR2 module is also dependent on parameters received on RS-485 communication channel. Reader RFID field is active always when module is powered up. If tag is put inside RFID field, reader tries to resolve RFID tag code. -
Page 9: Installation
Longo programmable controller LPC-2.CR2 5 INSTALLATION 5.1 Connection scheme Figure 2: Connection scheme... - Page 10 Longo programmable controller LPC-2.CR2 Table 2: K1 K1.1 Ground K1.2 10 .. 24 V DC Power supply input K1.3 RS-485 A Data receive/send line A K1.4 RS-485 B Data receive/send line B Table 3: LEDs & Buttons ON: RFID key standard NOK or ID card number wrong LED1: red Fault “...
-
Page 11: Mounting Instructions
Longo programmable controller LPC-2.CR2 5.2 Mounting instructions Figure 3: Housing dimensions Dimensions in millimeters. All connections, module attachments and assembling must be done while module is not connected to the main power supply. Several RFID panels should not be mounted close to each other. Minimum distance to next panel is at least 30 cm. -
Page 12: Module Labeling
Label 2 descriptions: 1. S/N: CR-S9-1000000003 is the serial number. CR2 – short product name, • S9 – user code (test procedure, e.g. Smarteh person xxx), • 1000000003 – year and current stack code, • 10 – year (last two cyphers), •... -
Page 13: Technical Specifications
Longo programmable controller LPC-2.CR2 6 TECHNICAL SPECIFICATIONS Table 6: Technical specifications Power supply from main module Interconnection connector type RJ-12 6/6 Power consumption 1.5 W RFID type EM4100, 125 kHz, Manchester 64, read only Max. reading distance 4 cm Dimensions (W x H x D) 120 x 80 x 60 mm Weight 200 g... -
Page 14: Spare Parts
Longo programmable controller LPC-2.CR2 7 SPARE PARTS For ordering spare parts following Part Numbers should be used: LPC-2.CR2 Card Reader module LPC-2.CR2, EM, black P/N: 225CR210V01001 LPC-2.CR2 Card Reader module LPC-2.CR2, EM, white P/N: 225CR216V03W03 LPC-2.MC8 Main module LPC-2.MC8 P/N: 225MC813001001 Splitter SPL-2 (1/8) P/N: 206SPL04002001... -
Page 15: Changes
Longo programmable controller LPC-2.CR2 8 CHANGES The following table describes all the changes to the document. Date Description 07.06.2016 General update. 01.06.2014 Power consumption data update. 01.07.2012 CGP General update. 18.03.2010 The initial version, issued as LPC-2.CR2 module UserManual. -
Page 16: Notes
Longo programmable controller LPC-2.CR2 9 NOTES...
