- Page 1 USER MANUAL Longo programmable controller LPC-2.MC9 Main module Version 4 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0) 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
- Page 2 Longo programmable controller LPC-2.MC9 Written by SMARTEH d.o.o. Copyright © 2017, SMARTEH d.o.o. User Manual Document Version: 4 April, 2017...
- Page 3 24 months is valid from the date of sale to the end buyer, but not more than 36 months after delivery from Smarteh. In case of claims within warranty time, which are based on material malfunctions the producer offers free replacement. The method of return of malfunctioned module, together with description, can be arranged with our authorized representative.
-
Page 4: Table Of Contents
Longo programmable controller LPC-2.MC9 Longo programmable controller LPC-2.MC9 1 ABBREVIATIONS................1 2 DESCRIPTION...................2 3 FEATURES..................3 4 OPERATION..................4 5 INSTALLATION..................7 5.1 Connection scheme..............7 5.2 Mounting instructions..............9 5.3 Module labeling...............11 6 TECHNICAL SPECIFICATIONS..............12 7 SPARE PARTS..................13 8 CHANGES ..................14 9 NOTES..................15... -
Page 5: Abbreviations
Longo programmable controller LPC-2.MC9 1 ABBREVIATIONS System on module Advanced RISC machines Transmission control protocol International electrotechnical commission Controller area network Light emmiting diode... -
Page 6: Description
Some modules are subject to power consumption and number limitation, this limitations are handled directly in the Smarteh IDE not allowing users to add more modules. For proper system configuration and data allocation please refer to Smarteh IDE software help menu. -
Page 7: Features

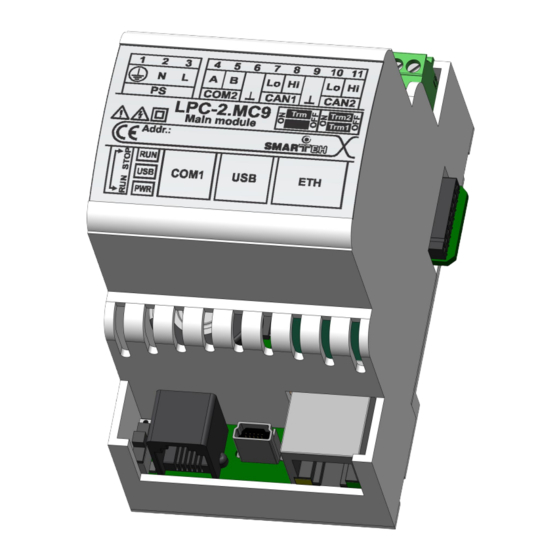

Longo programmable controller LPC-2.MC9 3 FEATURES Figure 1: LPC-2.MC9 module Table 1: Features Real Time Linux OS ARM based main module Ethernet connectivity with Modbus TCP/IP Master and Slave, web server and SSL Modbus RTU master USB port for Debugging, Application and Default parameters transfer Two CAN ports RS-485 connectivity for intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..) -
Page 8: Operation
RTC unit The main module has a real-time clock unit that can be accessed by user program via functions described in the Smarteh IDE manual. RTC unit has super capacitor backup with retention time is estimated up to 14 days. - Page 9 Devices connected over CAN bus connection must be properly terminated. Termination must be made on first and last CANopen device on the bus. Main module operation modes LPC-2.MC9 operates in two modes, normal run mode and programming mode. Switching between modes is done by using switch S1 (Table 4.). Program Mode In Program Mode the CPU does not execute the application program or update the output modules.
- Page 10 Longo programmable controller LPC-2.MC9 With Smarteh IDE also in Run mode is possible to stop executing program and change the application. SD Card The memory card is used for data storage.
-
Page 11: Installation
Longo programmable controller LPC-2.MC9 5 INSTALLATION 5.1 Connection scheme Figure 3: Connection scheme... - Page 12 OFF: LED turns off when USB is disconnected to the LPC-2.MC9 module ON: LED turns on when power is supplied to the LPC-2.MC9 module LED3: green Power OFF: LED turns off when power is not supplied to the LPC-2.MC9 module...
-
Page 13: Mounting Instructions
It must be used as the disconnected device for the equipment. RATING AND CHARACTERISTICS OF FUSES: LPC-2.MC9 main module must be connected with 4 A circuit breaker in Live and Neutral conductor. It is class I unit and must be permannetly connected to Protective Earth. - Page 14 Longo programmable controller LPC-2.MC9 Mounting instructions: 1. Switch OFF main power supply. 2. Mount module to the provided place inside an electrical panel (DIN EN50022-35 rail mounting). 3. Mount other IO modules (if required). Mount each module to the DIN rail first, then attach modules together through K1, K2 connectors.
-
Page 15: Module Labeling
Label 2 description: 1. S/N: MC9-S9-1100000190 is the serial number. MC9 – short product name, • S9 – user code (test procedure, e.g. Smarteh person 009), • 1600000190 – year and current stack code, • 16 – year (last two cyphers), •... -
Page 16: Technical Specifications
Longo programmable controller LPC-2.MC9 6 TECHNICAL SPECIFICATIONS Table 6: Technical specifications Rated power supply 100/240 V AC, 50/60 Hz Operational power supply 90 .. 264 V AC up to 24 W depending on additional modules connected Power consumption to main module Connection type screw type connector for stranded wire 0.75 to 2.5 mm... -
Page 17: Spare Parts
Longo programmable controller LPC-2.MC9 7 SPARE PARTS For ordering spare parts following Part Numbers should be used: LPC-2.MC9 Main module LPC-2.MC9 P/N: 225MC915001001... -
Page 18: Changes
Longo programmable controller LPC-2.MC9 8 CHANGES The following table describes all the changes to the document. Date Description 15.04.17 RTU update. 15.01.17 Added technical specifications. 16.11.16 Added technical specifications. 30.09.16 The initial version, issued as LPC-2.MC9 User Manual. -
Page 19: Notes
Longo programmable controller LPC-2.MC9 9 NOTES...
