USER MANUAL
Longo programmable controller
LPC-2.MC8
Main module
Version 10
SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0) 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPC-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smarteh LPC-2

Summary of Contents for Smarteh LPC-2

  • Page 1 USER MANUAL Longo programmable controller LPC-2.MC8 Main module Version 10 SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0) 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si...
  • Page 2 Longo programmable controller LPC-2.MC8 Written by SMARTEH d.o.o. Copyright © 2018, SMARTEH d.o.o. User Manual Document Version: 10 April, 2018...
  • Page 3 24 months is valid from the date of sale to the end buyer, but not more than 36 months after delivery from Smarteh. In case of claims within warranty time, which are based on material malfunctions the producer offers free replacement. The method of return of malfunctioned module, together with description, can be arranged with our authorized representative.

  • Page 4: Table Of Contents

    Longo programmable controller LPC-2.MC8 Longo programmable controller LPC-2.MC8 1 ABBREVIATIONS................1 2 DESCRIPTION...................2 3 FEATURES..................3 4 OPERATION..................4 5 INSTALLATION..................6 5.1 Connection scheme..............6 5.2 Mounting instructions..............8 5.3 Module labeling...............10 6 TECHNICAL SPECIFICATIONS..............11 7 SPARE PARTS..................12 8 CHANGES ..................13 9 NOTES..................14...

  • Page 5: Abbreviations

    Longo programmable controller LPC-2.MC8 1 ABBREVIATIONS Sorted by order of appeareance in document: Integrated development environment Transmission control protocol Controller area network RFID Radio frequency identification Infrared Real time clock Programmable logic controller Light emitting diode Ingress protection...

  • Page 6: Description

    Main module is powered from main power supply. Main module is accompanied with Smarteh IDE application. It is a tool, where various modules can be put together to a configuration, based on number and type of electrical signals needed. Smarteh IDE takes care for proper modules position.

  • Page 7: Features

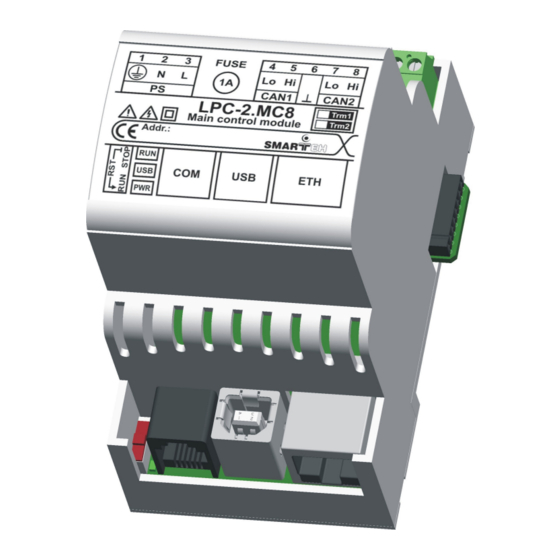

    Longo programmable controller LPC-2.MC8 3 FEATURES Figure 1: LPC-2.MC8 module Table 1: Technical data Ethernet connectivity with Modbus TCP slave (server) functionality USB port for Debugging, Application and Default parameters transfer CAN ports RS-485 connectivity for intelligent peripheral modules (thermostat, RFID, IR, operator terminal...)

  • Page 8: Operation

    Gateway, Primary DNS, Secondary DNS: default 0.0.0.0 Flash memory unit This unit enables only reading from its variables. Setting the variables is issued with one of Smarteh IDE plugins, Flash uploader page. Flash unit provides reading of a portion of a flash memory inside MC8 module. Flash memory is non- volatile, therefor keeps data for ever.
  • Page 9 Stop mode: When the switch is turn to STOP state, the status (RUN) LED is Off. The application switch to the bootloader, this fact allow users to program LPC-2.MC8. When the user is done programming the PLC via USB the switch must be turned ON and the MC8 starts the application.

  • Page 10: Installation

    Longo programmable controller LPC-2.MC8 5 INSTALLATION 5.1 Connection scheme Figure 2: Connection scheme...
  • Page 11 Longo programmable controller LPC-2.MC8 Table 2: Power supply PS.1 ( Functional earthing Provides better EMI/EMC PS.2 (N) Power supply 115/230 V AC, 50/60 Hz PS.3 (L) Table 3: CAN CAN1.4 CAN low 0 .. 5 V CAN1.5 CAN high CAN.6 Reference point CAN2.7...

  • Page 12: Mounting Instructions

    Longo programmable controller LPC-2.MC8 5.2 Mounting instructions Figure 3: Housing dimensions Dimensions in milimeters. EXTERNAL SWITCH CIRCUIT-BREAKER EXTERNAL OVERCURRENT PROTECTION: The module is allowed to be connected to installation with over current protection that has nominal value of 16 A or less.

  • Page 13: Module Labeling

    Label 2 descriptions: 1. S/N:MC8-S9-1100000190 is the serial number. MC8 – short product name, • S9 – user code (test procedure, e.g. Smarteh person xxx), • 1100000190 – year and current stack code, • 11 – year (last two cyphers) •...

  • Page 14: Technical Specifications

    Longo programmable controller LPC-2.MC8 6 TECHNICAL SPECIFICATIONS Table 6: Technical specifications Power supply 115/230 V AC, 50/60 Hz Power consumption max. 24 W Connection type screw type connector for stranded wire 0.75 to 2.5 mm B connector type, device mode, Low speed, Full speed capacitor backed up with retention cca.

  • Page 15: Spare Parts

    Longo programmable controller LPC-2.MC8 7 SPARE PARTS For ordering spare parts following Part Numbers should be used: LPC-2.MC8 main module LPC-2.MC8 P/N: 225MC813001001 Programmable cable USB P/N: 203PMU12001001...

  • Page 16: Changes

    01.09.15 Technical data update. 01.06.14 Technical data update. CANOpen Unit section added. 01.05.13 Technical data update. Modbus section added. 01.02.13 Technical data update. 01.07.13 Technical data update. 01.11.11 Technical data update. 23.09.11 The initial version, issued as LPC-2.MC8 User Manual.
  • Page 17 Longo programmable controller LPC-2.MC8...

  • Page 18: Notes

    Longo programmable controller LPC-2.MC8 9 NOTES...
