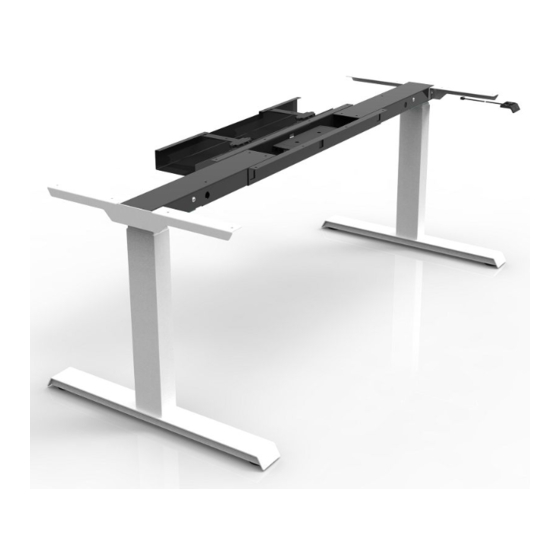

- Page 1 Installation and operating instructions Electrically height-adjustable sit/stand work desks System: FREE.STAND 9051 with motor controller STAND.CONTROL C1 ( E-components 9910 ) 9051_Bedienungsanleitung_C1_Rev2_EN_UK 08.08.2018 TS / MB...
-
Page 2: Table Of Contents
Table of Contents Preface ................................4 1.1 Use as intended............................4 1.2 Target group and previous knowledge ......................4 1.3 Symbols used in the safety instructions ...................... 5 1.4 Safety Instructions ............................5 1.4.1 General safety instructions ........................5 1.4.2 Before installation, deinstallation or troubleshooting................7 1.4.3 Before initial operation .......................... - Page 3 Error messages in the display of the hand switch (optional) ................. 22 Click codes of the controller .......................... 24 Technical Data ............................... 25 Tests and certificates ............................. 26 Address ................................. 27 9051_Bedienungsanleitung_C1_Rev2_EN_UK – Stand 08.08.2018 TS / MB...
-
Page 4: Preface
Preface Dear customer, We are pleased that you have decided to purchase our product. These instructions explain how to assemble, use and maintain the sit/stand desk. All sit/stand desks are put through a thorough quality inspection before leaving our factory. If you ever have any problems with our desk base, feel free to contact our service department any time. -
Page 5: Symbols Used In The Safety Instructions
1.3 Symbols used in the safety instructions Danger: These safety instructions point out an imminent danger for the life and health of persons! Non-compliance with these warnings can result in danger to life, life-threatening injuries and property damage. Attention: These safety instructions point out possible dangers from electrical current! Non-compliance with these warnings can result in injuries and property damage! Note: These safety instructions point out important information which you must follow for the safe operation of the FREE.STAND sit/stand desk. - Page 6 Attention: The STAND.CONTROL motor controller must only be operated with the mains voltage specified on the rating plate! Before commissioning, make sure the mains voltage on the rating plate of the motor controller matches your mains voltage! Danger: This unit can be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge when they are supervised or instructed on the safe use of the device and understand the resulting risks.
-
Page 7: Before Installation, Deinstallation Or Troubleshooting
Danger: In case of faults it is possible that the desktop moves a bit during every start-up attempt before the safety shut-down initiates. During this process, always watch out for the possible danger of being crushed. Danger: The optionally available corrosion protection is not activated during any reset process (Section 5). -
Page 8: Indication Service Note
Note: For reasons of EU conformity and product safety, we recommend that the users provide their products with operating instructions in the respective official EU language. Warning: Be sure to enclose operating instructions in your finished product that include all safety instructions required by the consumer for the safe handling of your product. -
Page 9: Warranty
Warranty We provide a 24-month warranty on this desk base. The warranty covers all material and production errors and applies from the date of production (see rating plate). The warranty is only valid under the condition that the desk base has been properly and professionally assembled and has been used within the scope of the described parameters;... -
Page 10: Assembly
Assembly Use only screws that correspond to the enclosed base drawing for the assembly of your desk base. Attention: Incorrect screws can cause damage to the desk. Danger: The power cable of the motor controller must be disconnected during assembly of the desk base! Attention: Before assembly and commissioning of the FREE.STAND sit/stand desk, make sure the product is acclimatised for the temperature and relative humidity values stated in the technical... -
Page 11: Fitting The Skids
4.2 Fitting the skids If the side frame has skids welded to it, please continue with point 4.2. If the side frame has screwed-on skids, they must first be fitted to the mounting legs. To do so, use the screws as given in the table-top support frame drawing. -
Page 12: Assembly Of The Controller And Hand-Switch
4.4 Assembly of the controller and hand-switch First fit the two controller brackets into the keyholes in the longitudinal spar. Then turn them clockwise through 90 degrees. 90° Note: Ensure that the grooves for the cable guidance are on one side, so that the cables can be later laid skirting by the STAND.CONTROL C1. -
Page 13: Commissioning
Commissioning Commissioning includes all jobs that are necessary for electrical height adjustment of the FREE.STAND sit/stand desk with the aid of the STAND.CONTROL motor controller. The prerequisites for commissioning are: • complete assembly of the desk base in accordance with Section 4.1-4.3 •... -
Page 14: Procedure During Commissioning
5.2 Procedure during commissioning Attention: Plug in the power supply cable/mains cable only after all other electrical connections have been made! (All motors, the hand-switch and possibly additional accessories are connected to the controller.) To commission the FREE.STAND sit/stand desk, proceed as follows: 5.2.1 Connect the drives Make sure that the connection cables of the drives reach from both sides up to the corresponding controller connection. -
Page 15: Connect The Power Supply Cable /Mains Cable
5.2.4 Installing optional accessories There is a large number of optional accessories available for the FREE.STAND 9051 table-top support frame (for example, CPU mounting, cable ducts, screens etc.). These accessories are to be fitted after installing the actual table-top support frame. With some of the accessories, it may be necessary to move the table up once, before they can be installed. -
Page 16: Initialisation / Reset
5.3 Initialisation / Reset After the installation, or if there is a fault at the table, or after disconnecting the connection between the drives and the controller, the controller of the table has to be initialised. If the controller expects a fresh initialisation, the table can be moved only down, with a reduced speed. For hand ... -
Page 17: Operation With Stand.move M1.1 Hand Switch With Display And Memory (Optional)
6.3 Operation with STAND.MOVE M1.1 hand switch with display and memory (optional) Pos. 3 + 4 Pos. 1 + 2 “Down” “Logo” key “Up” Hand switch Comfort - M1.1 This hand-switch is additionally equipped with a display for indication of the current desk height in centimetres or inches. -
Page 18: Calling The Menu
6.3.3 Calling the menu The Comfort hand switch provides various possibilities for settings, which can be carried out by the operator himself ( are not always enabled). To do so, press the “Logo” key for 6 seconds till the display changes to You can navigate with the arrow keys in the menu that is displayed thereupon. -
Page 19: Factory Reset (Menu F3)
6.3.6 Factory reset (menu F3) If you wish to reset the controller to the factory settings because you do not wish to retain the changed settings, or notice an error, or were asked by a Service employee from Oelschläger Metalltechnik GmbH to do so, proceed as follows: 1. -
Page 20: Optional Function - Safety Zone
6.4 Optional function – safety zone The safety stop works as follows: 1. Press the desk position button downwards / down (and keep it pressed). The desktop moves to the start of the safety zone. 2. The movement of the desktop stops above the safety zone. 3. -
Page 21: Troubleshooting
Troubleshooting Fault Cause Repair Desk does not move No power supply Plug in mains cable; if applicable, check the plug connector on the controller. No connection or loose Check, if applicable fix plug connector connection from the connection to the motor cable to the controller and the drives. -
Page 22: Error Messages In The Display Of The Hand Switch (Optional)
Error messages in the display of the hand switch (optional) Display Description Remedy Short-circuit motor 1 Pull the mains plug. Correct the external short-circuit, check the cables to the motors for damage or connect Short-circuit motor 2 the correct motor to the relevant socket. Start the controller again. - Page 23 Note: If there is a power failure during the height adjustment or if the mains cable is pulled, a manual reset might be necessary. If the error cannot be repaired as described above, pull the mains plug, wait for several minutes and try to reinitialise the desk.
-
Page 24: Click Codes Of The Controller
10 Click codes of the controller As soon as the motor controller is supplied with power, the controller uses the integrated relay to acoustically inform the user about the system status and the reason for the most recent shut-down. Click = Relay actuated, Clack = Relay dropping Number When Status Information... -
Page 25: Technical Data
11 Technical Data System: 9051 FREE.STAND with motor controller STAND.CONTROL C1 Rated voltage 100-240 V / 50-60Hz Rated current consumption Rated power Standby power at nominal voltage, primary (typical) Dimensions (L x B x H) 294 x 89 x 38 mm 11.57”... -
Page 26: Tests And Certificates
12 Tests and certificates The drive system is tested according to the following standards: Electromagnetic compatibility (EMV) EN 61000-6-2:2005 EN 61000-6-3:2007 + A1 EN 61000-3-2:2014 EN 61000-3-3:2013 Electrical safety (low voltage directive 2006/95/EC) EN 62233:2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure EN 60335-1:2012 Household and similar electrical appliances... -
Page 27: Address
13 Address Oelschläger Metalltechnik GmbH Hertzstraße 1-3 27318 Hoya - Germany Tel.: +49 (0) 4251 - 816 - 0 E-mail: info@oelschlaeger.de Internet: www.oelschlaeger.de Company Headquarters: Hoya District Court – HRB 31030 Managing Director: Andreas Spreen 9051_Bedienungsanleitung_C1_Rev2_EN_UK – Stand 08.08.2018 TS / MB...
