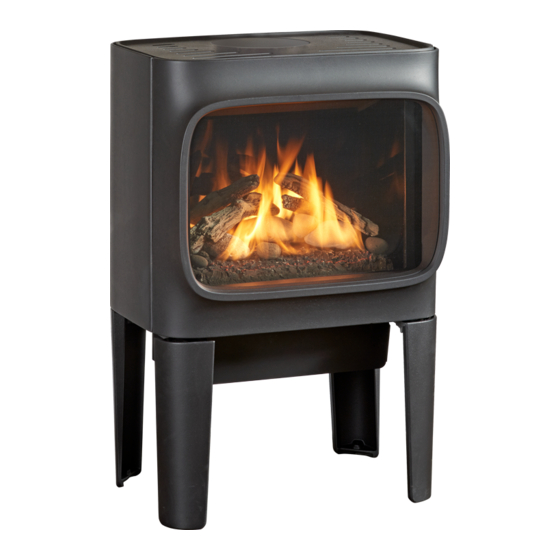

JØTUL GF 305 DV IPI

! IMPORTANT !

UNCRATING INSTRUCTIONS

TOOLS NEEDED:

• 13 mm socket wrench with long extension

• drill-driver and #2 square head bit

• hammer

STEP 1. CONFIRM LEG BOLTS ARE TIGHT.

Continuous vibration in transit can cause leg bolts to

become loose.

Before removing the stove from the pallet, use a wrench

with long extension to confirm that the leg bolts are tight.

A loose leg may also indicate shipping damage.

• Inspect sheet metal parts for dents and enamel parts

for chips and scratches.

• Report damage to your dealer.

Jotul North America, Inc. Gorham, Maine U.S.A.

139881 6/17

READ THIS FIRST.

SEE STEP 2, NEXT PAGE....

Page 1: Read This First
JØTUL GF 305 DV IPI ! IMPORTANT ! UNCRATING INSTRUCTIONS READ THIS FIRST. TOOLS NEEDED: • 13 mm socket wrench with long extension • drill-driver and #2 square head bit • hammer STEP 1. CONFIRM LEG BOLTS ARE TIGHT. Continuous vibration in transit can cause leg bolts to become loose.
Page 2 STEP 2. REMOVE SHIPPING BRACKETS. The stove is secured to the pallet and supported in transit by two steel brackets. CAUTION ! THE STOVE BRACKETS ARE BEARING THE WEIGHT OF THE STOVE. • Cut the wire tie to remove power cord from the bracket. •...
Page 3 • Loosen, but DO NOT REMOVE the 13 mm hex bolt at the keyhole slot in the Control Compartment at the top of that bracket. Control Compartment • Use the hammer to tap the slotted bracket off of the loosened bolt. •...
Page 4 STEP 3. RE-TIGHTEN COMPARTMENT BOLTS. CRITICAL ! While tightening the bolt, push the control compartment back to the rear of the stove to ensure that the bolt head remains fully-engaged with the keyhole slot. KEYHOLE SLOT STEP 4. READ THE MANUAL. See page 5 of the manual for further unpacking information.
