- Page 1 Access Control Panel ACCO-NT Installer Manual Firmware version 1.12 acco-nt_en 11/17 SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The device uses FreeRTOS v 6.1.0 – licensed under Modified GPL license (www.freertos.org). SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
Configuring network settings of the ACCO-NT control panel.......... 13 System requirements....................13 Installing the ACCO-NT Conf program ..............13 Connecting the ACCO-NT control panel to computer for the first time ..... 13 Description of the ACCO-NT Conf program.............. 13 About ACCO NET system operation................15 10. -
Page 4: Introduction
1.7, firmware version 1.10). It also describes the rules for configuring the control panel network settings by using the ACCO-NT Conf program and the way of installing the devices which make up the ACCO NET access control system. These include: ... - Page 5 SATEL ACCO-NT Outputs 8 programmable outputs on control panel mainboard: low-current outputs, OC type, different output functions, execution of non-standard control functions due to the capability of programming complex logic operations on outputs. Maximum number of programmable outputs: up to 264.
-
Page 6: Mainboard Description
Programming Local programming (only control panel network settings and time): – computer with ACCO-NT Conf program installed, connected to control panel USB port. Remote programming via the Ethernet network: – computer with ACCO Soft program installed;... -
Page 7: Microsd Memory Card

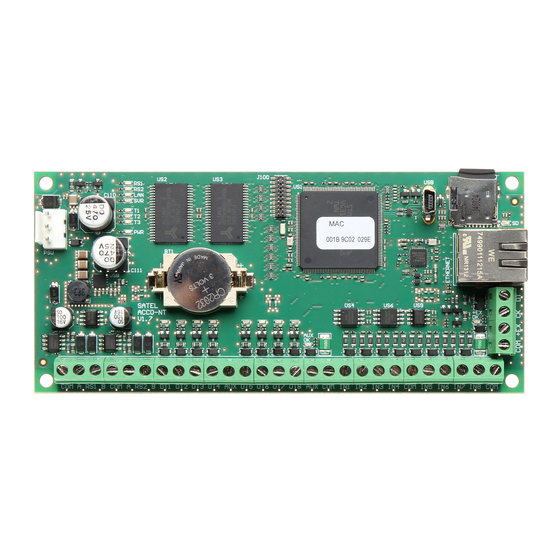

SATEL ACCO-NT Fig. 1. Mainboard of ACCO-NT control panel. Description of terminals: – common ground – terminals to connect the first RS-485 bus A RS1 B – terminals to connect the second RS-485 bus A RS2 B OT1…OT8 – programmable outputs –... -
Page 8: Inserting Microsd Card
ACCO-NT SATEL After inserting the microSD card into the operating control panel, the SD LED will start flashing. The control panel will be checking data stored on the card. 3.1.1 Inserting microSD card 1. Open the control panel enclosure. 2. Insert the card into its slot and push until it clicks into place. The card contacts should be directed towards the Ethernet socket. -
Page 9: Access Control Modules
The access control modules are to be connected to the two RS-485 buses provided on the ACCO-NT control panel board. Altogether, 255 controllers can be connected. Up to 128 devices can be connected to one bus. It is recommended that both buses be evenly loaded. -
Page 10: Installation Plan
ACCO-NT SATEL driller c/w a set of drill bits. 6.1 Installation plan Installation should be preceded by preparation of a plan of the access control system. It is advisable to draw a sketch of the building, showing lay-out of all devices to be included in the system, i.e. -
Page 11: Connecting The Access Control Modules To Rs-485 Bus
The access control modules should be power supplied as per description contained in the manuals delivered with respective devices. The access control modules should be connected to the ACCO-NT control panel using the bus topology (using the “star” topology is not recommended). The RS-485 bus structure is shown in Fig. -
Page 12: Connecting The Devices To Expander Bus
ACCO-NT SATEL Fig. 2. Diagram showing how the access control modules are connected to the ACCO-NT control panel. The control panel can be connected to the bus at any point. Place 100 Ω (± 10%) resistors at the beginning and at the end of the bus. Connect the COM terminals of all modules and control panel with an additional cable. -
Page 13: Addressing The Devices Connected To Expander Bus
SATEL ACCO-NT Distance Number of wires up to 300 m 300 – 600 m 600 – 1000 m Table 2. Fig. 3. The way of connecting expanders directly powered from the control panel. Fig. 4. The way of connecting expanders using another power source. -
Page 14: Connecting The Devices To Control Panel And Expander Inputs
6.9 Connecting the power supply Do not connect power supply untill the installation work is completed. The APS-412 power supply unit, manufactured by Satel, is required to power the ACCO-NT control panel. For description of the power supply installation, please refer to the manual delivered with the device. -
Page 15: Configuring Network Settings Of The Acco-Nt Control Panel
Use the ACCO-NT Conf program to configure the ACCO-NT control panel network settings. System requirements For operation of the ACCO-NT Conf program version 1.06, the Java environment version 8 or higher is required. Download its latest version from http://www.java.com/pl/download/ and install it on your computer. - Page 16 – red color – control panel restart in progress. Selected device – click on the drop-down menu symbol to display the list of control panels currently connected to the computer. Fig. 5. ACCO-NT Conf program window (connection to ACCO-NT control panel with factory default settings). New settings Parameters programmed in this area refer to the settings which are to be saved to the control panel.
-
Page 17: About Acco Net System Operation
All components of the system are working properly, when communication is ensured between the devices as well as between the ACCO-NT control panels and the ACCO Server program. The ACCO Server program is used as an intermediate for communication between the access control panels, on the one hand, and the database and ACCO Soft and ACCO-WEB programs, on the other hand. -
Page 18: Control Panel Firmware Update
10. Control panel firmware update 10.1 Local update of the control panel firmware On the www.satel.eu website, you can find the latest version of ACCO-NT control panel firmware and the program for updating control panel firmware. In order to replace the firmware: 1. -
Page 19: Remote Update Of The Control Panel Firmware
6. Start the program for updating the control panel firmware and update the control panel firmware according to the procedure described in section “Control panel firmware update”. 11. Specifications of ACCO-NT control panel Number of programmable inputs ..................... 8 Number of outputs: low-current, OC type .............
