- Page 1 Access control panel ACCO-NT2 Firmware version 1.15 INSTALLER MANUAL acco-nt2_en 02/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Table Of Contents
Configuring network settings of the ACCO-NT2 control panel ........12 System requirements ....................13 Installing the ACCO-NT Conf program ..............13 Connecting the ACCO-NT2 control panel to computer for the first time ....13 Description of the ACCO-NT Conf program .............. 13 About ACCO NET system operation ................15 10. -
Page 4: Introduction
1. Introduction The ACCO NET access control system consists of software and devices manufactured by Satel. The guide to ACCO NET system software installation is available on the www.satel.eu website. This manual covers installation of the ACCO-NT2 access control panel (electronics version 2.2, firmware version 1.15) for the ACCO NET 1.8 system. - Page 5 SATEL ACCO-NT2 Outputs • 8 programmable outputs on control panel mainboard: − low-current outputs, OC type, − different output functions, − execution of non-standard control functions due to the capability of programming complex logic operations on outputs. • Maximum number of programmable outputs: up to 264.
-
Page 6: Mainboard Description
ACCO-NT2 SATEL • Remote update of the control panel firmware and firmware of the access control modules. Programming • Local programming (only control panel network settings and time): – computer with ACCO-NT Conf program installed, connected to control panel USB port. -
Page 7: Microsd Memory Card

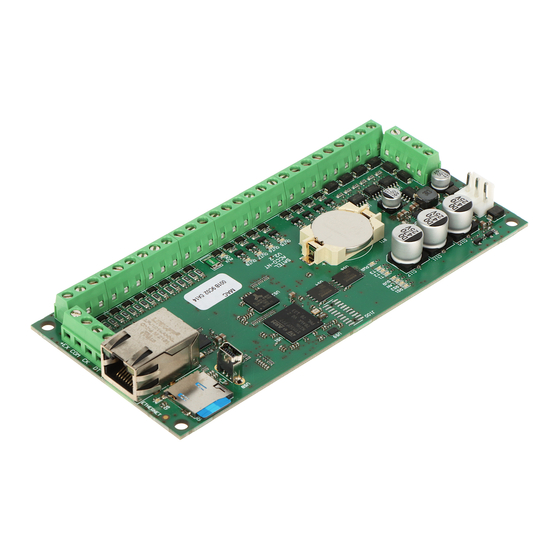

SATEL ACCO-NT2 Fig. 1. Mainboard of ACCO-NT2 control panel. Description of terminals: A RSE B – terminals for future applications – common ground A RS1 B – terminals to connect the first RS-485 bus A RS2 B – terminals to connect the second RS-485 bus OT1…OT8 –... -
Page 8: Inserting Microsd Card
ACCO-NT2 SATEL After inserting the microSD card into the operating control panel, the SD LED will start flashing. The control panel will be checking data stored on the card. 3.1.1 Inserting microSD card 1. Open the control panel enclosure. 2. Insert the card into its slot and push until it clicks into place. The card contacts should be directed towards the Ethernet socket. -
Page 9: Access Control Modules
The access control modules are to be connected to the two RS-485 buses provided on the ACCO-NT2 control panel board. Altogether, 255 controllers can be connected. Up to 128 devices can be connected to one bus. It is recommended that both buses be evenly loaded. -
Page 10: Installation Plan
ACCO-NT2 SATEL • precision pliers, • flat nose pliers, • driller c/w a set of drill bits. 6.1 Installation plan Installation should be preceded by preparation of a plan of the access control system. It is advisable to draw a sketch of the building, showing lay-out of all devices to be included in the system, i.e. -
Page 11: Installing The Control Panel Mainboard
The access control modules should be power supplied as per description contained in the manuals delivered with respective devices. The access control modules should be connected to the ACCO-NT2 control panel using the bus topology (using the “star” topology is not recommended). The RS-485 bus structure is shown in Fig. -
Page 12: Connecting The Devices To Expander Bus
ACCO-NT2 SATEL Fig. 2. Diagram showing how the access control modules are connected to the ACCO-NT2 control panel. The control panel can be connected to the bus at any point. Place 100 Ω (± 10%) resistors at the beginning and at the end of the bus. Connect the COM terminals of all modules and control panel with an additional cable. -
Page 13: Addressing The Devices Connected To Expander Bus
SATEL ACCO-NT2 Fig. 3. The way of connecting expanders directly powered from the control panel. Fig. 4. The way of connecting expanders using another power source. 6.6.1 Addressing the devices connected to expander bus Each device to be connected to the expander bus must have its own individual address from the 0 to 31 range. -
Page 14: Connecting The Devices To Control Panel And Expander Inputs
6.9 Connecting the power supply Do not connect power supply untill the installation work is completed. The APS-412 power supply, manufactured by SATEL, is required to power the ACCO-NT2 control panel. For description of the power supply installation, please refer to the manual delivered with the device. -
Page 15: System Requirements
5. Click on the ACCO-NT Conf link and download the program installation file. 8.3 Connecting the ACCO-NT2 control panel to computer for the first time 1. Connect the USB MINI-B port on control panel electronics board with the computer USB port by means of a suitable cable. - Page 16 ACCO-NT2 SATEL Fig. 5. ACCO-NT Conf program window (connection to ACCO-NT2 control panel with factory default settings). New settings Parameters programmed in this area refer to the settings which are to be saved to the control panel. Network Configuration Dynamic IP address – select this field if the control panel is to automatically download the IP address data of control panel, subnet mask and gateway from the DHCP server.
-
Page 17: About Acco Net System Operation
All components of the system are working properly, when communication is ensured between the devices as well as between the ACCO-NT2 control panels and the ACCO Server program. The ACCO Server program is used as an intermediate for communication between the access control panels, on the one hand, and the database, the ACCO Soft and ACCO- WEB programs and the ECCO-EE component, on the other hand. -
Page 18: Control Panel Firmware Update
10. Control panel firmware update 10.1 Local update of the control panel firmware On the www.satel.eu website, you can find the latest version of ACCO-NT2 control panel firmware and the program for updating control panel firmware. In order to replace the firmware: 1. -
Page 19: Remote Update Of The Control Panel Firmware
SATEL ACCO-NT2 number of control panel reappears in the program window, the device will be identified in the system. Disconnect the control panel from the computer. 9. Now you can start programming the system. 10.2 Remote update of the control panel firmware You can update the control panel firmware remotely from the ACCO Soft program.
