- Page 1 STORE THE FUTURE User Manual TSOL-M350 TSOL-M400 TSOL-M800 TSOL-M1600 TSUNESS Co., Ltd.
- Page 2 Product information is subject to change without notice. User documentation is updated frequently; Check www.tsun-ess.com-for the latest information. To ensure optimal reliability and to meet warranty requirements, the TSUNESS-Microinverter must be installed according to the instructions in this manual.
-
Page 3: Table Of Contents
TSOL-M350/M400/M800/M1600 CONTENT Read This First Important Safety Information Product Label Warning System Introduction Product Description Installation of Micro Inverter Check Installation Environment Installation Position Step 1. Make an Installation Map Step 2. Install Micro Inverter Step 3. Connect AC Cable Step 4. -
Page 4: Read This First
TSOL-M350/M400/M800/M1600 Read This First Dear customer, thank you for choosing the TSOL micro inverter from TSUNESS. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. A solar micro inverter, or simply micro inverter, is a plug-and-play device used in photo- voltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC). -
Page 5: Product Label
TSOL-M350/M400/M800/M1600 Product Label The following safety symbols are used in this document. Familiarise yourself with the symbols and their meaning before installing or operating the system. Symbol Usage Indicates a hazardous situation that can result in deadly electric shock hazards, other serious physical injury, or fire DANGER hazards. -
Page 6: Warning
TSOL-M350/M400/M800/M1600 Warning Only qualified personnel should install, troubleshoot, or replace TSOL micro inverters or the cable and accessories. Before installation, check the unit to ensure absence of any transport or handling damage, which could affect insulation integrity or safety clearances. -
Page 7: System Introduction
Unused AC connectors are live when the system is energized by the grid. Do not reuse sealing caps. System Introduction The TSOL-M350/M400/M800/M1600 micro inverter is used in grid-tied applications, comprised of three key elements: TSOL-M350/M400/M800/M1600 Micro inverter. Talent-MG2 Micro inverter Monitor Device. -

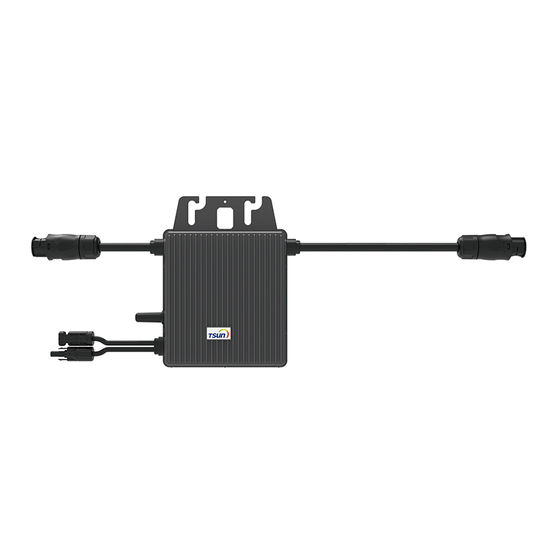

Page 8: Product Description
TSOL-M350/M400/M800/M1600 PVn+1 Ground TSOL-M1600 TSOL-M1600 Ground TSOL-M800 TSOL-M800 Ground Meter Neutral Earth Distribution Board To Grid Product Description Item Description connectors Female AC Connector Male AC Connector Mounting Hole *More information can be found in the document TSOL-M Series Micro inverter Accessories Instroduction. - Page 9 TSOL-M350/M400/M800/M1600 Model TSOL-M350 TSOL-M400 TSOL-M800 TSOL-M1600 Input Data (DC) Recommended Input Power (W) 240~380 280~440 2 * 280~440 4 * 300~470 Mppt Voltage Range (V) 32~48 33~48 33~48 36~48 Operating Voltage Range (V) 16~60 Max. Input Voltage (V) Max. Input Current (A) 11.5...
-
Page 10: Installation Of Micro Inverter
TSOL-M350/M400/M800/M1600 Installation of Micro Inverter WARNING: BEFORE INSTALLATION, CHECK THE UNIT TO ENSURE ABSENCE OF ANY TRANSPORT OR HANDLING DAMAGE, WHICH COULD AFFECT INSULATION INTEG- RITY OR SAFETY CLEARANCES. Check Installation Environment Choose installation location carefully and adhere to specified cooling requirements. -
Page 11: Step 1. Make An Installation Map
As TSOL-M800 and M1600 are connected to several PV modules, the SN label should be sticked as shown below. 012345678912032156 012345678912032156 Figure the SN label of micro-inverter The finished installation map is shown as below: Figure The installation map (TSOL-M350/M400) www.tsun-ess.com... -
Page 12: Step 2. Install Micro Inverter
TSOL-M350/M400/M800/M1600 Figure The installation map (TSOL-M800) Figure The installation map (TSOL-M1600) In order to provide a better after-sale service, please make the installation map carefully and keep the drawing in good CAUTION condition. Step 2. Install micro-inverter Mark the approximate center of PV module on the frame and install the micro-inverter with the LED side facing outside. -
Page 13: Step 3. Connect Ac Cable
TSOL-M350/M400/M800/M1600 Micro-inverter should be installed in a suitable position with WARNING good ventilation and no directly sunshine. Using two pairs of screws and nuts to fix the bracket holes of the micro-inverter onto the frame. Figure Installation example CAUTION There are no screws and nuts in the package. - Page 14 If the AC cable is too short for installation, use an Intercon- CAUTION nection Cable (TSOL-MC200-G2, 2m) to connect two TSOL-M1600 which are installed in one line or two TSOL-M350/400 which are installed in two different lines. Figure TSOL-M1600 installed in one line www.tsun-ess.com...
-
Page 15: Step 4. Connect Ac End Cable
TSOL-M350/M400/M800/M1600 Figure TSOL-M350/400 installed in two different lines Use a Connector Protective Cap (TSOL-MP-F/M) to make sure the WARNING unused AC connector to be closed. Figure Connector Protective Cap Step 4. Connect AC end cable Separate the AC connector as shown below. - Page 16 TSOL-M350/M400/M800/M1600 Live (Brown/Red) Neutral (Blue/Black) PE: Ground (Yellow-Green) Figure Definition of the port If the micro-inverter is connected to 110/220 V or 115/230V or 120/240V two-phase split power grid, connect two live lines to port L and port N. 240 V...
- Page 17 TSOL-M350/M400/M800/M1600 If the micro-inverter is connected to 127/220 V or 120/208V three-phase WYE power grid, connect one live line to port L and connect another live line to port N. 220 V Figure 127/220V three-phase WYE power grid and connection of each port WARNING Use AWG 12 (4 mm²) cable for AC end cable.
-
Page 18: Step 5. Connect Pv Module
TSOL-M350/M400/M800/M1600 Figure Connect the AC connector To prevent electrical hazards, Make sure the micro-inverter system is disconnected from the home distribution network and DANGER the AC breaker is open. There are no cables for the AC end cable in the package. The... -
Page 19: Step 6. Start The System
TSOL-M350/M400/M800/M1600 If the DC cable is too short for installation, use a DC Extension Cable to connect two PV modules to TSOL-M1600 which are CAUTION installed in one line. Figure TSOL-M1600 installed in one line Step 6. Start the System While installation is all finished, turn on the main utility-grid AC circuit breaker. -
Page 20: Maintenance Guide
TSOL-M350/M400/M800/M1600 Maintenance Guide Routine Maintenance Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies. Always use the personal protective equipment provided by the employer when carrying out maintenance. During normal operation, check that the environmental and logistic conditions are appropriate. -
Page 21: Storage And Dismantling
TSOL-M350/M400/M800/M1600 Storage and Dismantling If the equipment is not used immediately or is stored for long periods, check whether it is correctly packed. The equipment must be stored in well-ventilated indoor areas that do not have characteristics that might damage the components of the equipment. -
Page 22: Warranty
TSOL-M350/M400/M800/M1600 Warranty This Warranty is subject to the following conditions: The products must have been installed and correctly commissioned by an authorized and licensed installer. Proof may be required of correct commissioning of the Product (such as certificate of compliance). Claims for failures due to incorrect installation or commissioning are not covered under this Warranty. -
Page 23: Distributor Responsibility
TSOL-M350/M400/M800/M1600 Failure to observe the user manual, maintenance regulations and intervals; Modifications, changes, or attempted repairs, except as conducted by an Authorized Dealer; Incorrect use or inappropriate operation; Insufficient ventilation of the Covered Product; Failure to observe the applicable safety regulations;... -
Page 24: Miscellaneous
Descriptions of the problem Type and number of PV modules connected Optional equipment TSUNESS Co., Ltd. el: +86-573-8466 8569 E-mail: sales@tsun-ess.com | www.tsun-ess.com Add: Building E1, No. 555, Chuangye Road, Dayun Town, Jiashan County, Jiaxing City, Zhejiang Province, China www.tsun-ess.com... - Page 25 TSUNESS Co., Ltd. www.tsun-ess.com sales@tsun-ess.com Building E1, No. 555, Chuangye Road, Dayun Town, Jiashan County, Jiaxing City, Zhejiang Province, China ©2018 TSUNESS. All rights reserved. All specifications are subject to change without prior notice.
