- Page 1 Balcony Microinverter TSOL-MS400 TSOL-MS800 TSOL-MS2000 V1.0 - 1 -...
-
Page 2: Trademarks And Permissions
Balcony Microinverter Trademarks and Permissions TSUN and other TSUNESS trademarks are trademarks of TSUNESS Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. TSUNESS Co., Ltd makes no representations express or implied, concerning this... -
Page 3: Table Of Contents
Microinverter Installation ..............................- 9 - Pre-installation Check ..................................... - 9 - Installation Steps ....................................- 10 - TSUN Monitoring System .............................. - 15 - Installer ......................................... - 15 - End User ....................................... - 16 - Remote Active Power Control ............................- 17 - Self-Test Function for Italy ............................. -
Page 4: Read This First
Balcony Microinverter Read This First Dear customer, thank you for choosing the Balcony microinverter from TSUN. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. A solar microinverter, or simply microinverter, is a plug-and-play device used in photovoltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC). -
Page 5: System Introduction
The Balcony microinverter is used in grid-tied applications, comprised of two key elements: Balcony Microinverter. TSUN monitoring system. The microinverter converts the DC electricity generated by solar panels into AC electricity which is in accordance with the requirements of the public grid and sends the AC into the grid, reducing the load pressure of the grid. - Page 6 Balcony Microinverter TSOL- MS800 TSOL- MS2000 The microinverter is integrated with the Wi-Fi module and connects to the home Wi-Fi router directly. Users can monitor the power generation of the system by TSUN monitoring App. V1.0 - 6 -...
-
Page 7: Product Description

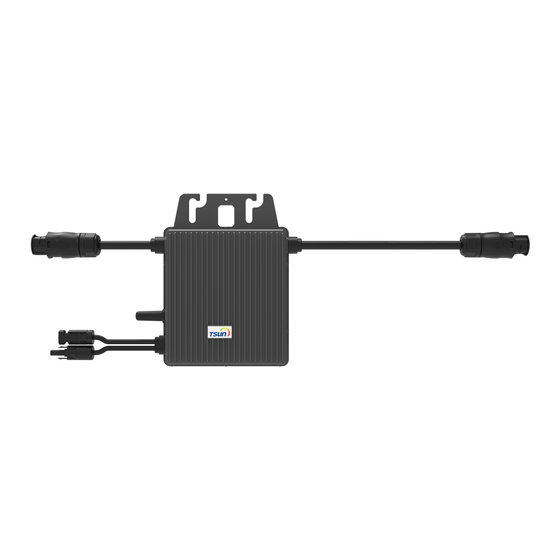

Balcony Microinverter Product Description TSOL- MS400 TSOL- MS800 TSOL- MS2000 Mounting Hole AC Cable Grounding Hole Antenna DC Cables Status Light V1.0 - 7 -... -
Page 8: Datasheet
178 * 153 * 28 250 * 170 * 28 331 * 261 * 44 Weight [kg] 1.98 General Data Display LED indicators; TSUN APP+WEB Communication built-in WiFi module Type of Isolation Galvanically Isolated HF Transformer V1.0 - 8 -... -
Page 9: Microinverter Installation
Pre-installation Check Check the Package Although TSUN’s microinverters have surpassed stringent testing and are checked before they leave the factory, it is uncertain that the microinverters may suffer damage during transportation. Please check the package for any obvious signs of damage, and if such evidence is present, do not open the package and contact your dealer as soon as possible. -
Page 10: Installation Steps
Balcony Microinverter Use a mobile phone to check the Wi-Fi signal strength at the installation position. If the Wi-Fi signal is bad, try to install the microinverter in another position or move the Wi-Fi router. Installation Steps DANGER ·Before installation, check the unit to ensure the absence of any transport or handling damage, which could affect insulation integrity or safety clearances. - Page 11 Balcony Microinverter Step 2. Connect the ground cable DANGER ·Do not install the equipment in adverse environment conditions such as flammable, explosive, corrosive, extreme high or low temperature, and humid. Balcony Installation Using two pairs of screws and nuts to fix the micrioinverter on the frame. Make sure that the label of microinverter should be upside.
- Page 12 Balcony Microinverter Step 3. Connect the ground cable. WARNING ·Ensure that all the microinverters are well grounded. ·Use ɸ6 screw for the ground port. Connect the ground cable to the enclosure of the microinverter. Step 4. Connect AC end cable WARNING ·Ensure that all AC cables are correctly wired and that none of the wires are pinched or damaged.
- Page 13 Balcony Microinverter Live (Brown/Red) Neutral (Blue/Black) Ground (Yellow-Green) Reassemble the AC connector as shown below. Plug the AC connector into the microinverter and connect the AC cable to the AC distribution box. Step 5. Connect the DC cable DANGER ·When the photovoltaic array is exposed to light, it provides a DC voltage to the inverter. WARNING ·Ensure that all DC cables are correctly wired and that none of the wires are pinched or damaged.
- Page 14 Balcony Microinverter ·Use MC4 compatible DC connectors in the inverter side of the DC extension cable, or get the DC connectors from TSUN. ·Contact PV module manufacturers for the requirements of the DC connectors in the module side of DC extension cable.
-
Page 15: Tsun Monitoring System
Balcony Microinverter TSUN Monitoring System The Balcony microinverter has an integrated monitoring module inside. The microinverter will directly connect to the router (Wi-Fi Version). Users can use the TSUN Smart APP or enter the TSUN website to monitor the microinverter. Installer Ask for an installer account from the distributor or TSUN. -
Page 16: End User
Balcony Microinverter User Guidance of TSUN Monitoring System End User Visit “Google Play” or “Apple Store” and “TSUN SMART”. Download and install it in the mobile phone. TSUN Smart Register a new account in TSUN SMART. Visit https://www.tsun-ess.com/File/$random-2023-09-16-090024-_912he0N or Scan the QR code below to find the latest User Guidance of TSUN SMART. -
Page 17: Remote Active Power Control
(input port) to cease the output of active power or limit active power to a regulated level. This logic input can be the RS485 port, Ethernet port, and so on. TSUN microinverter provides an extra power control device that contains an RS485 port for this remote active power control. For more information, refer to the “User Manual of TSUN power control device”. -
Page 18: Fault Code And Troubleshooting
Check the voltage of the PV module and make sure that the PV1VoltOver_Fault voltage is below the maximum DC input voltage of the microinverter. If this fault appears continuously, please contact the TSUN PV2VoltOver_Fault service. This warning mostly appears in the morning or at dusk. It’s PV1VoltLow_Fault normal and will disappear automatically. -
Page 19: Maintenance Guide
Balcony Microinverter Maintenance Guide Routine Maintenance Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies. Always use the personal protective equipment provided by the employer when carrying out maintenance. ... -
Page 20: Recycling And Disposal
Balcony Microinverter Recycling and Disposal This device should not be disposed of as residential waste. A Microinverter that has reached the end of its life is not required to be returned to the dealer. Users must find an approved collection and recycling facility in the area. -
Page 21: Distributor Responsibility
Within the warranty period of the microinverter, the invoice and date of purchase are required for the service. Besides, the trademark on the product should be visible, otherwise, warranty is not available. More information can be found in TSUN Warranty Policy. V1.0... - Page 22 Balcony Microinverter V1.0 - 22 -...
