- Page 1 TSOL-MS1600/MS1800/MS2000 TSOL-MS2000 TSOL-MS1800 TSOL-MS1600 V1.0 - 1 -...
-
Page 2: Trademarks And Permissions
Product information is subject to change without notice. User documentation is updated frequently; Check www.tsun-ess.com-for the latest information. To ensure optimal reliability and to meet warranty requirements, the TSUN Microinverter must be installed according to the instructions in this manual. For warranty text refer to www.tsun-ess.com. -
Page 3: Table Of Contents
TSOL-MS1600/MS1800/MS2000 Content Trademarks and Permissions ............................- 1 - Audience ................................... - 2 - Content ....................................- 3 - Read This First .................................. - 4 - Important Safety Information .................................. - 4 - Product Label ......................................- 4 - System Introduction ................................- 6 - Product Description .................................... -
Page 4: Read This First
TSOL-MS1600/MS1800/MS2000 Read This First Dear customer, thank you for choosing the G3 Plus series microinverter from TSUN. We hope you will find our products meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our products. A solar microinverter, or simply microinverter, is a plug-and-play device used in photovoltaics, that converts direct current (DC) generated by a single solar module to alternating current (AC). - Page 5 TSOL-MS1600/MS1800/MS2000 CAUTION · CAUTION indicates that the described operation must not be carried out. The reader should stop use and fully understand the operations explained before proceeding. The symbols on the microinverter are list below and illustrated in detail. Symbol Description This device is directly connected to public grid, thus all work to the inverter shall only be carried out by qualified personnel.
-
Page 6: System Introduction
TSOL-MS1600/MS1800/MS2000 System Introduction The TSOL- MS2000/MS1800/MS1600 microinverter is used in grid-tied applications, comprised of two key elements: TSOL- MS2000/MS1800/MS1600 Microinverter. Talent monitoring system. The microinverter converts the DC electricity generated by solar panels into AC electricity which is in accordance with the requirements of public grid and send the AC into the grid, reduce the load pressure of the grid. -
Page 7: Product Description

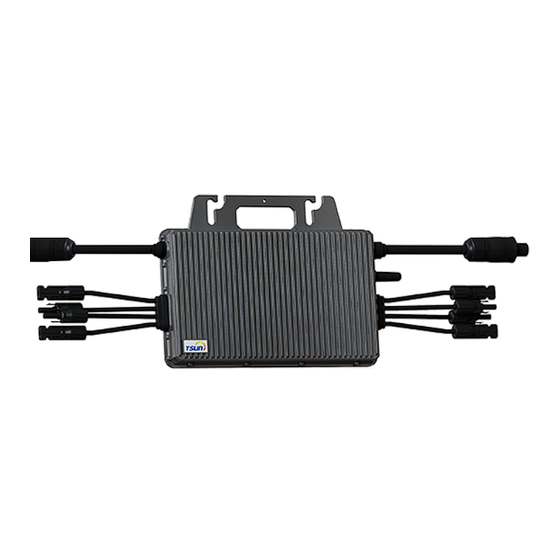

Grounding Hole Antenna DC Cables Status Light Datasheet Model TSOL-MS1600 TSOL-MS1800 TSOL-MS2000 Input Data (DC) Recommended Module Power (W) 300 - 700+ 300 - 700+ 300 - 700+ Start-up Voltage per Input (V) Rated Input Voltage (V) MPPT Voltage Range per Input (V) 16~60 Max. -
Page 8: Microinverter Installation
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.tsun-ess.com/File/$random-2023-07-15-061950--45dN$MQ OPERATING FREQUENCY (the maximum transmitted power) 2412MHz—2472MHz(EIRP ＜20dBm) 2402MHz—2480MHz(EIRP ＜10dBm) Microinverter Installation Pre-installation Check Check the Package Although TSUN’s microinverters have surpassed stringent testing and are checked before they leave V1.0 - 8 -... -
Page 9: Installation Steps
TSOL-MS1600/MS1800/MS2000 the factory, it is uncertain that the microinverters may suffer damages during transportation. Please check the package for any obvious signs of damage, and if such evidence is present, do not open the package and contact your dealer as soon as possible. Check the Installation Environment and Position When choosing the position of installation, comply with the following conditions: ... - Page 10 TSOL-MS1600/MS1800/MS2000 ·There are no screws and nuts in the package. ·The distance between every two micro-inverters should meet the length of AC cables. The length of AC cable is 2.5m. Choose the best installation position. Use two pairs of screws and nuts to fix the microinverter on the frame.
- Page 11 Quantities for each cable section TSOL-MS1600 TSOL-MS1800 TSOL-MS2000 Every micro-inverter could be connected to the other one by its AC cables. Plug the female AC connector of one microinverter into a male AC connector of another micro-inverter to form a continuous AC branch circuit.
- Page 12 TSOL-MS1600/MS1800/MS2000 Step 4. Connect the AC end cable of each cable section DANGER ·Do not install the AC junction box without first removing AC power from the system. ·To prevent electrical hazards, make sure the micro-inverter system is disconnected from the home distribution network and the AC breaker is open.
- Page 13 TSOL-MS1600/MS1800/MS2000 Live (Brown/Red) Neutral (Blue/Black) Ground (Yellow-Green) Reassemble the AC connector as shown below. Plug the AC connector into the microinverter and connect the AC cable to the AC distribution box. Step 5. Connect the DC cable DANGER ·When photovoltaic panels are exposed to light, it provides a DC voltage to the inverter. WARNING ·Ensure that all DC cables are correctly wired and that none of the wires are pinched or damaged.
- Page 14 ·Use MC4 compatible DC connectors in the inverter side of DC extension cable, or get the DC connectors form TSUN. ·Contact PV module manufacturers for the requirements of DC connectors in the module side of DC extension cable.
-
Page 15: Talent Monitoring System
(Wi-Fi Version). Users can use the Talent APP or enter the Talent website to monitor the microinverter. Installer Ask for an installer account from the distributor or TSUN. Visit www.talent-monitoring.com to find the Talent Portal monitoring platform. -
Page 16: End User
Visit “Google Play” or “Apple Store” and “Talent Pro”. Download and install it in the mobile phone. Visit https://www.tsun-ess.com/File/2023-04-19-025439-@an-a4kS or Scan the QR code below to find the latest User Guidance of Talent monitoring system. User Guidance of Talent monitoring system End User Visit “Google Play”... -
Page 17: Remote Active Power Control
(input port) to cease the output of active power or limit active power to a regulated level. This logic input can be the RS485 port, Ethernet port, and so on. TSUN microinverter provide a extra power control device which contains a RS485 port for this remote active power control. For more information, refer to the “User manual of TSUN power control device”. -
Page 18: Self-Test Function For Italy
TSOL-MS1600/MS1800/MS2000 Self-Test Function for Italy TSUN microinverter and Talent monitoring system provide a Self-test function for Italy market. For more information, refer to the “User Guidance of Self-test Function”. V1.0 - 18 -... -
Page 19: Fault Code And Troubleshooting
Check the voltage of PV module and make sure that the voltage is below the maximum DC input voltage of the PV2VoltOver_Fault microinverter. PV3VoltOver_Fault If this fault appears continuously, please contact the TSUN service. PV4VoltOver_Fault PV1VoltLow_Fault This warning mostly appears in the morning or at dusk. It’s normal and will disappear automatically. -
Page 20: Maintenance Guide
TSOL-MS1600/MS1800/MS2000 Maintenance Guide Routine Maintenance Only authorized personnel are allowed to carry out the maintenance operations and are responsible for reporting any anomalies. Always use the personal protective equipment provided by the employer when carrying out maintenance. During normal operation, check that the environmental and logistic conditions are appropriate. Make sure that the conditions have not changed over time and that the equipment is not exposed to adverse weather conditions and has not been covered with foreign bodies. -
Page 21: Recycling And Disposal
TSOL-MS1600/MS1800/MS2000 Recycling and Disposal This device should not be disposed as residential waste. An Microinverter that has reached the end of its life is not required to be returned to the dealer. Users must find an approved collection and recycling facility in the area. Warranty Service This Warranty is subject to the following conditions: ... -
Page 22: Distributor Responsibility
Within warranty period of the microinverter, the invoice and date of purchase are required for the service. Besides, the trademark on the product should be clearly visible, otherwise warranty is not available. More information can be found in TSUN Warranty Policy. V1.0 - 22 -... - Page 23 TSOL-MS1600/MS1800/MS2000 V1.0 - 23 -...
