Adjustment Step
It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting
in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
Adjustments should move smoothly and easily through the full range of motion and stay where you set it. If adjustments are diffi cult and do not stay in the desired position, follow the instructions to
loosen or tighten the tension to create a smooth, easy adjustment motion. Depending on your product and the adjustment, it may take several turns to notice a diff erence.

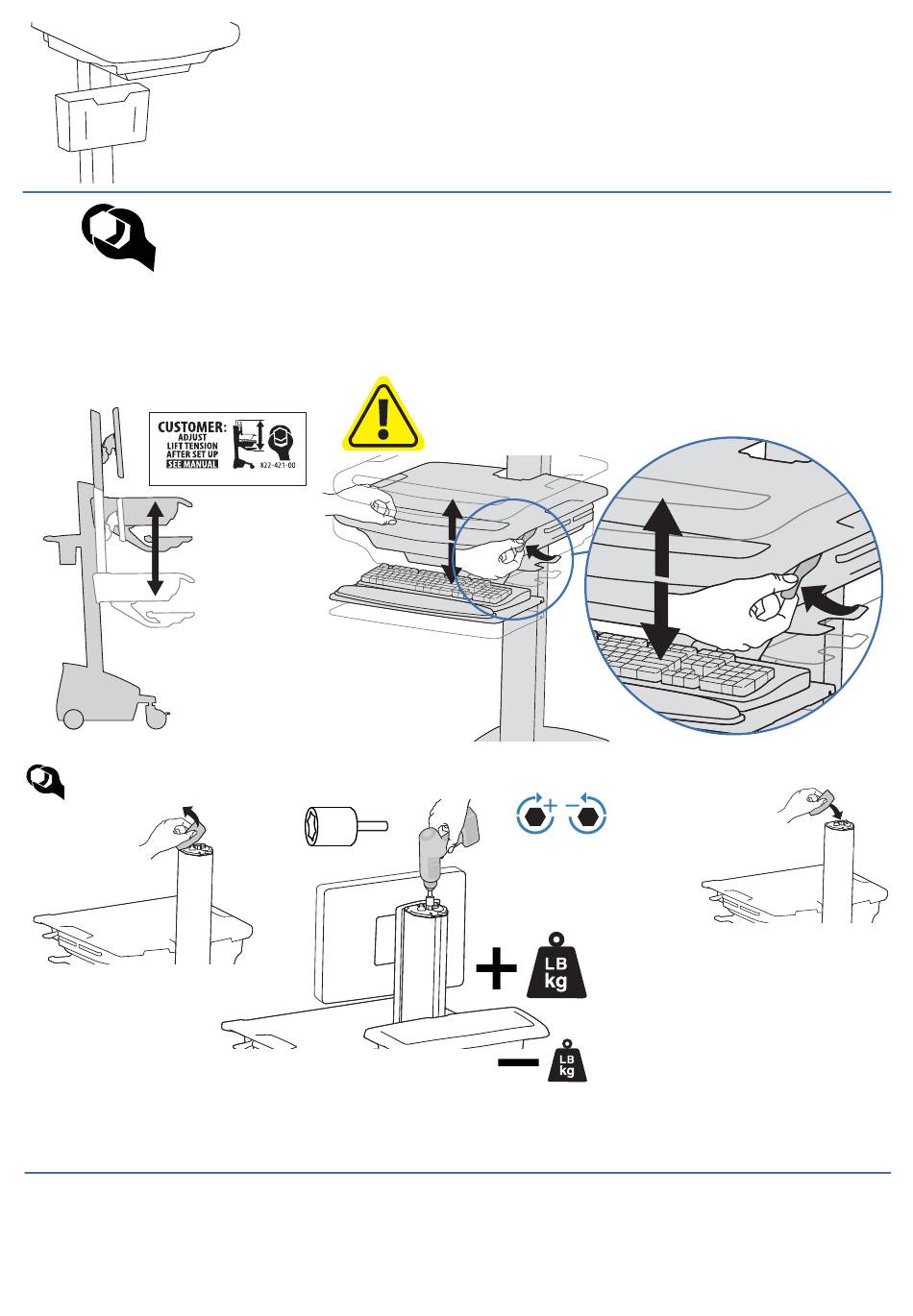

Lift – Up and down
Follow these instructions to tighten or loosen tension.
a
888-97-392-G-00 rev. C • 08/19
Attach to Front of Cart
(Only for carts with no drawers)
Release Brake to move riser.
b
14mm (9/16")
END OF INSTALLATION
NOTE: Adjustment
may require 40 - 60
revolutions.
Increase Lift Strength
If the mounted weight is too heavy or this
product does not stay up when raised, then
you'll need to increase Lift Strength:
Decrease Lift Strength
If the mounted weight is too light or this product
does not stay down when lowered, then you'll
need to decrease Lift Strength:
